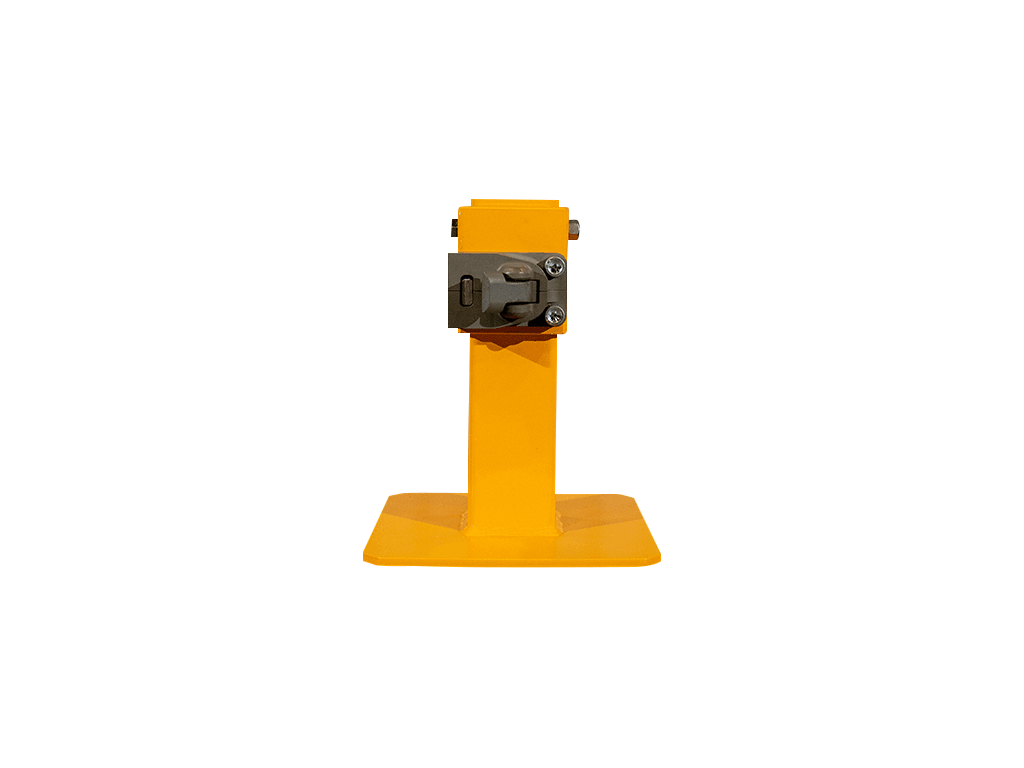

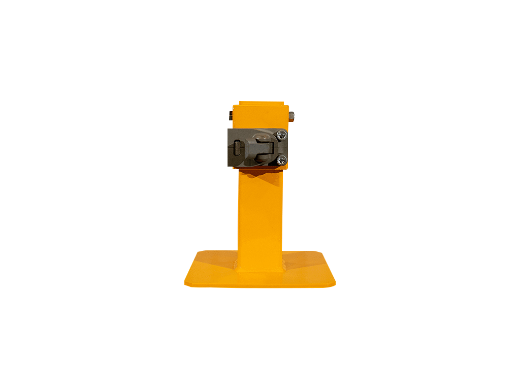

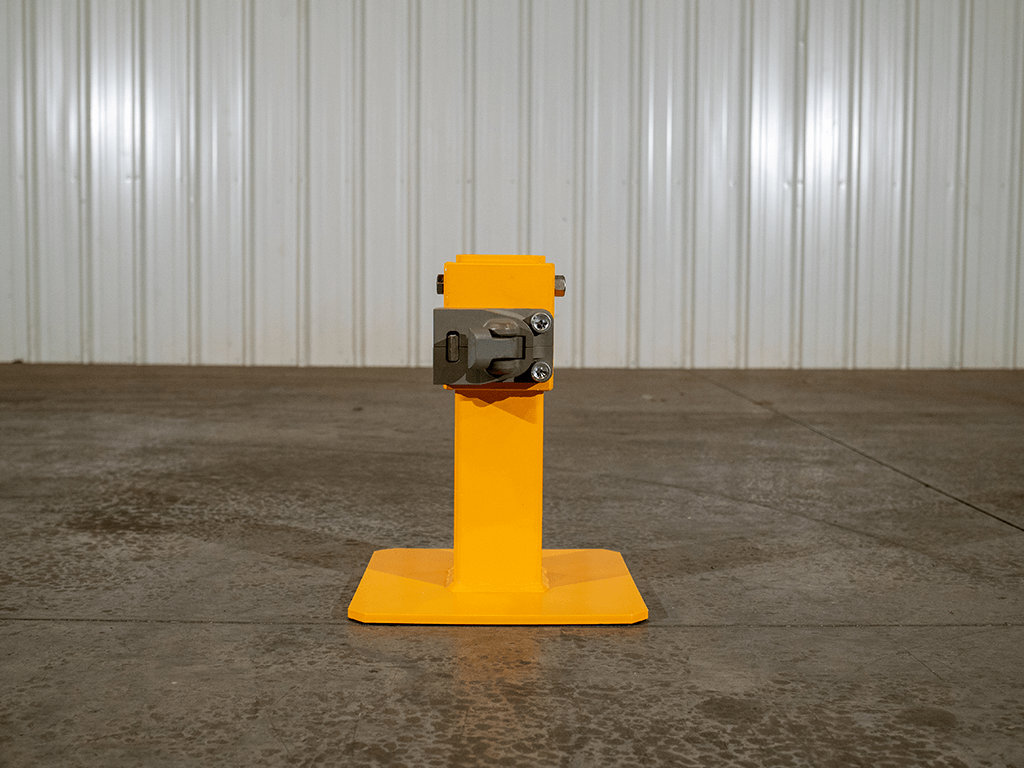

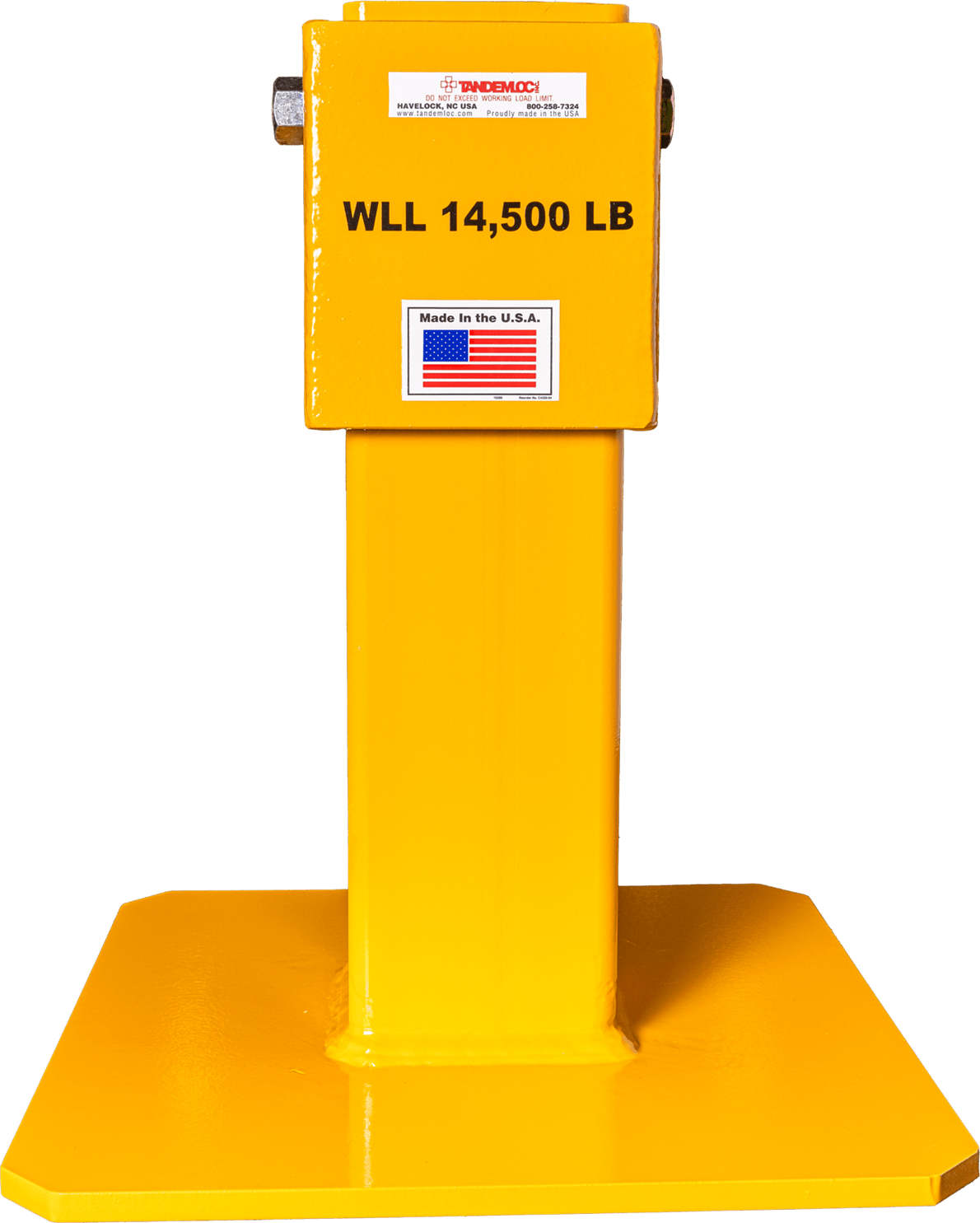

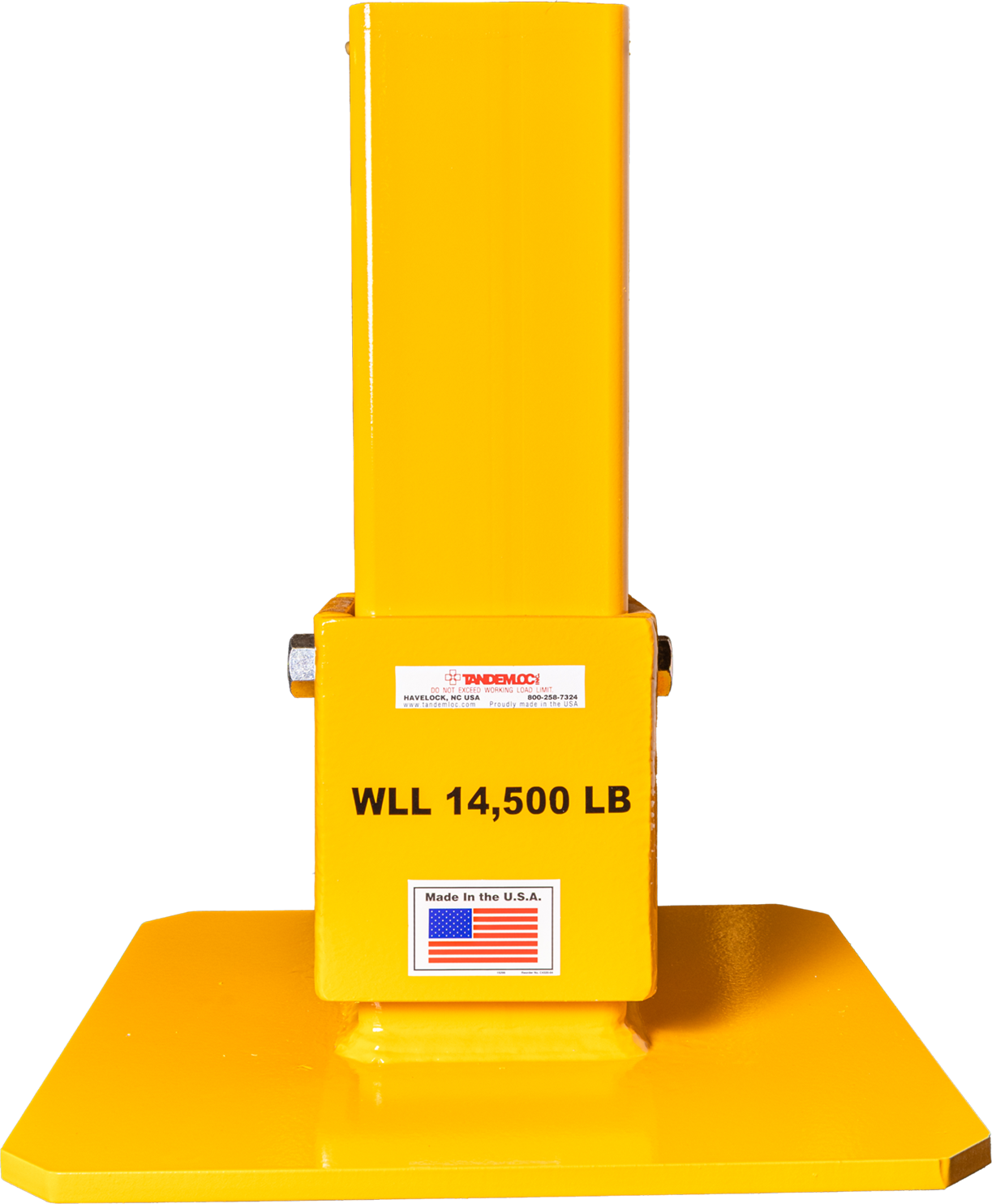

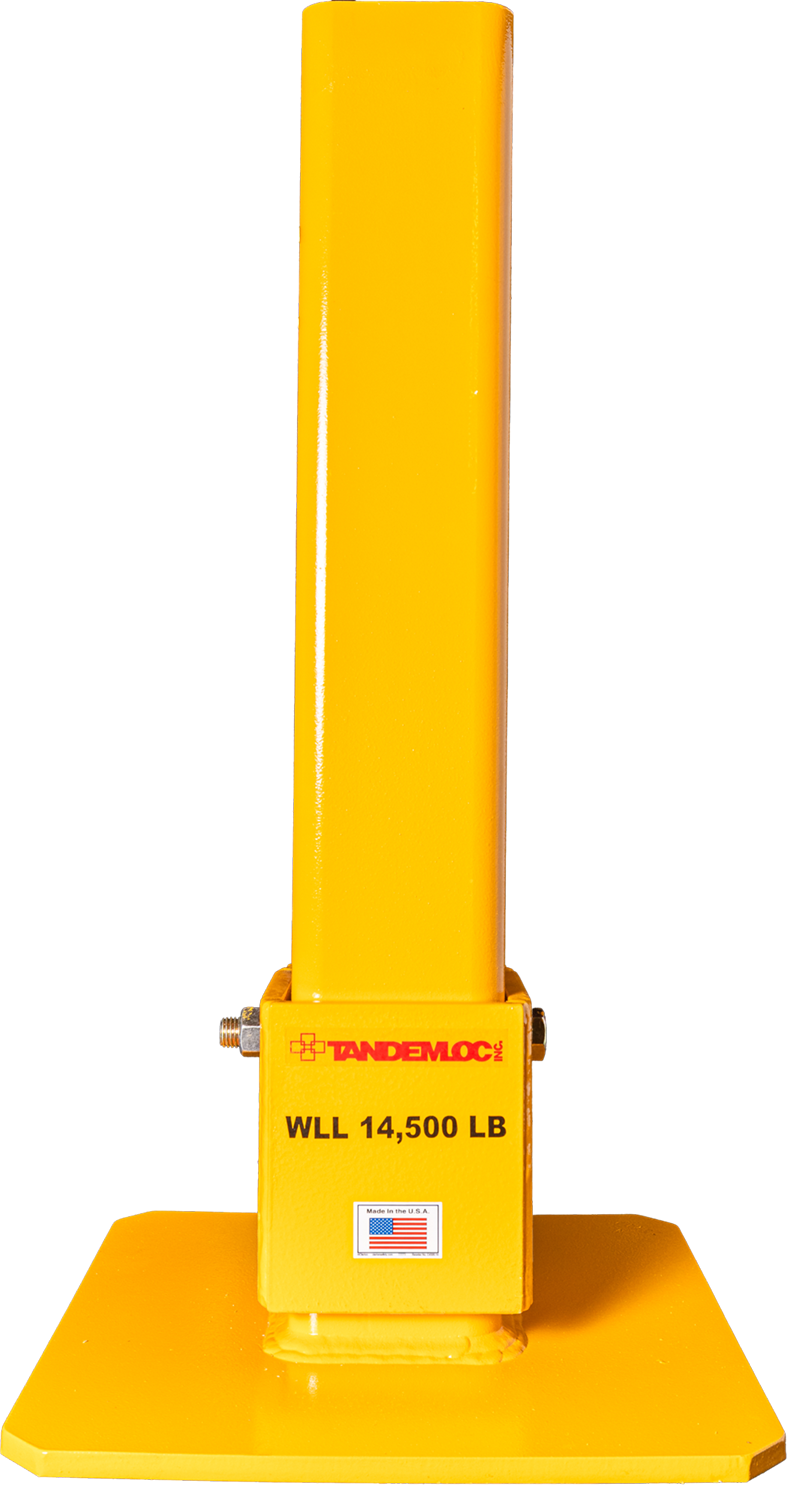

L09A00A-2PG Container Leveling Leg

For applications that require ISO Shelters or Modular Containers to sit level on uneven surfaces, the ISO Container Leveling Legs are the solution.

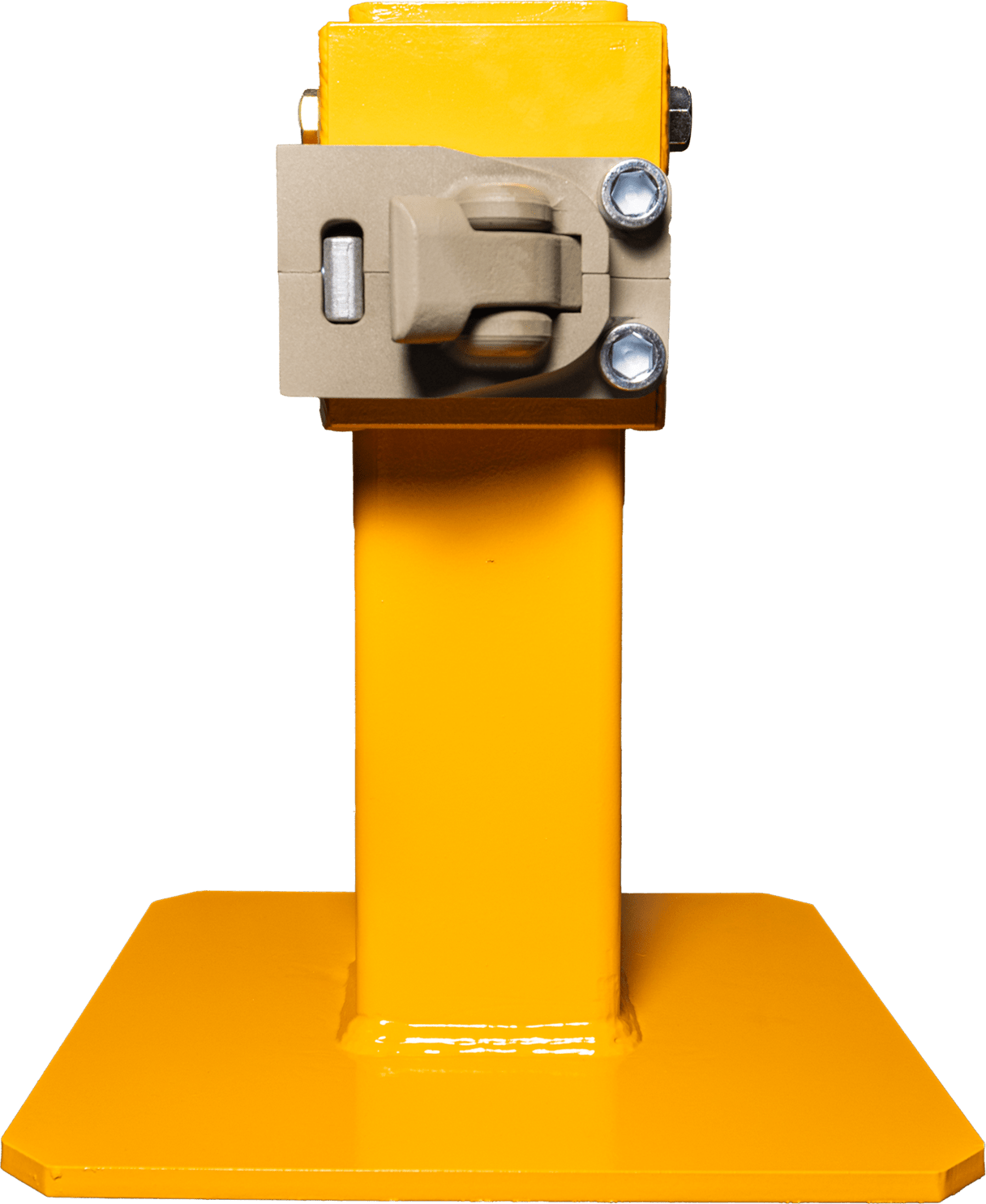

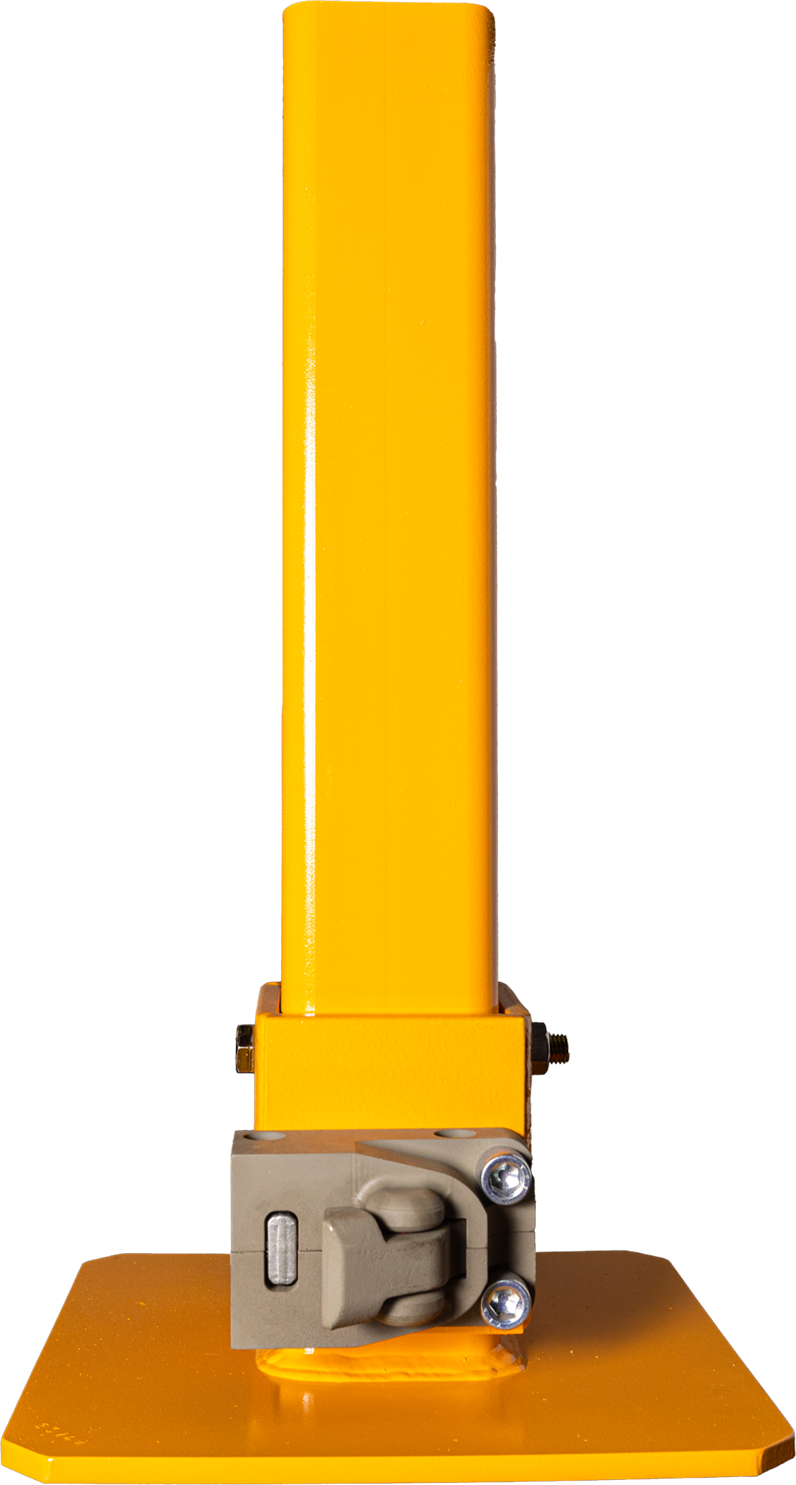

The legs can be rigidly connected to the side or end hole of bottom ISO corner fittings found on ISO Shelters or Modular Containers. Each leg can be individually adjusted in 1/4 inch increments up or down, with a total adjustment range of 12 inches per leg on the -2PG, 25" for the -3PG. These are very heavy duty units and incorporate our 12905BA Horizontal Clamp Connector for a rigid, clamped connection to the shelter/container.

  • HEIGHT:
    Max. Height of container (Ground to Bottom of Corner Fitting): 12.88 inches
    Min. Height of container (Ground to Bottom of Corner Fitting): 0.88 inches
  • OVERALL DIMENSIONS:
    Foot: 16" x 16" ; Height: 19.50"

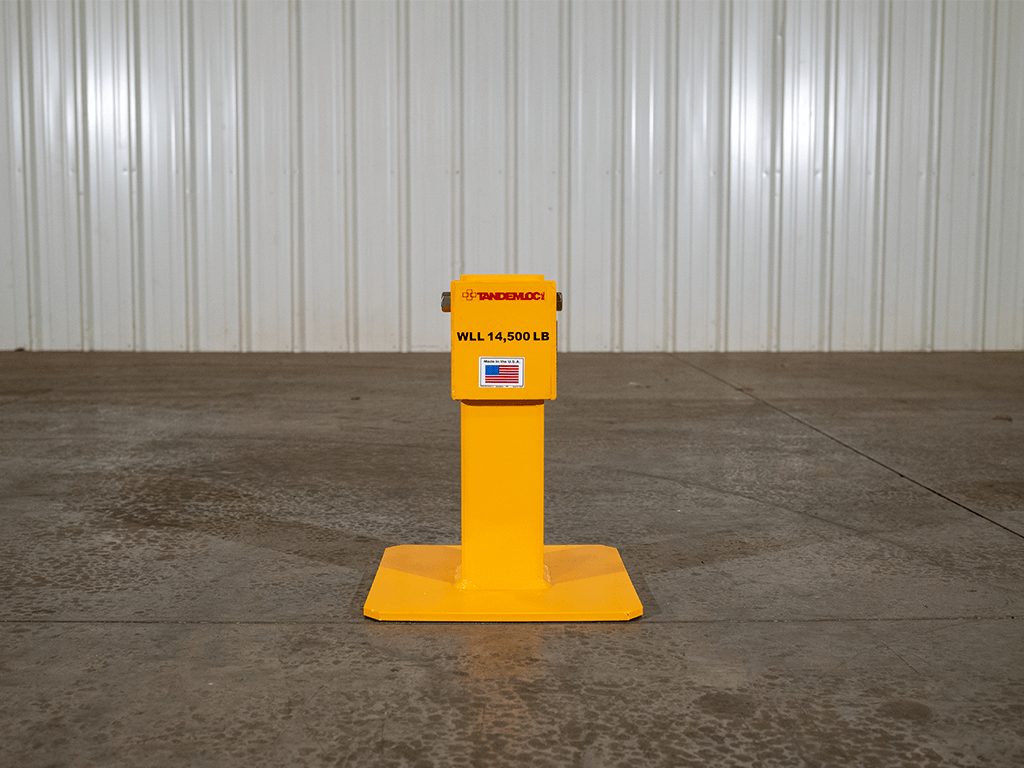

  • SAFE WORKING LOAD: 14,500 per leg (58,000 LB Container Load)
  • FINISH:
    Painted and Thermal Zinc Coated
  • WEIGHT:
    90 LB.

Please Register For Price Quote

RFID

Enhance Operations Track and Authenticate RFID
CLICK FOR MORE INFO

Already a member Login Here

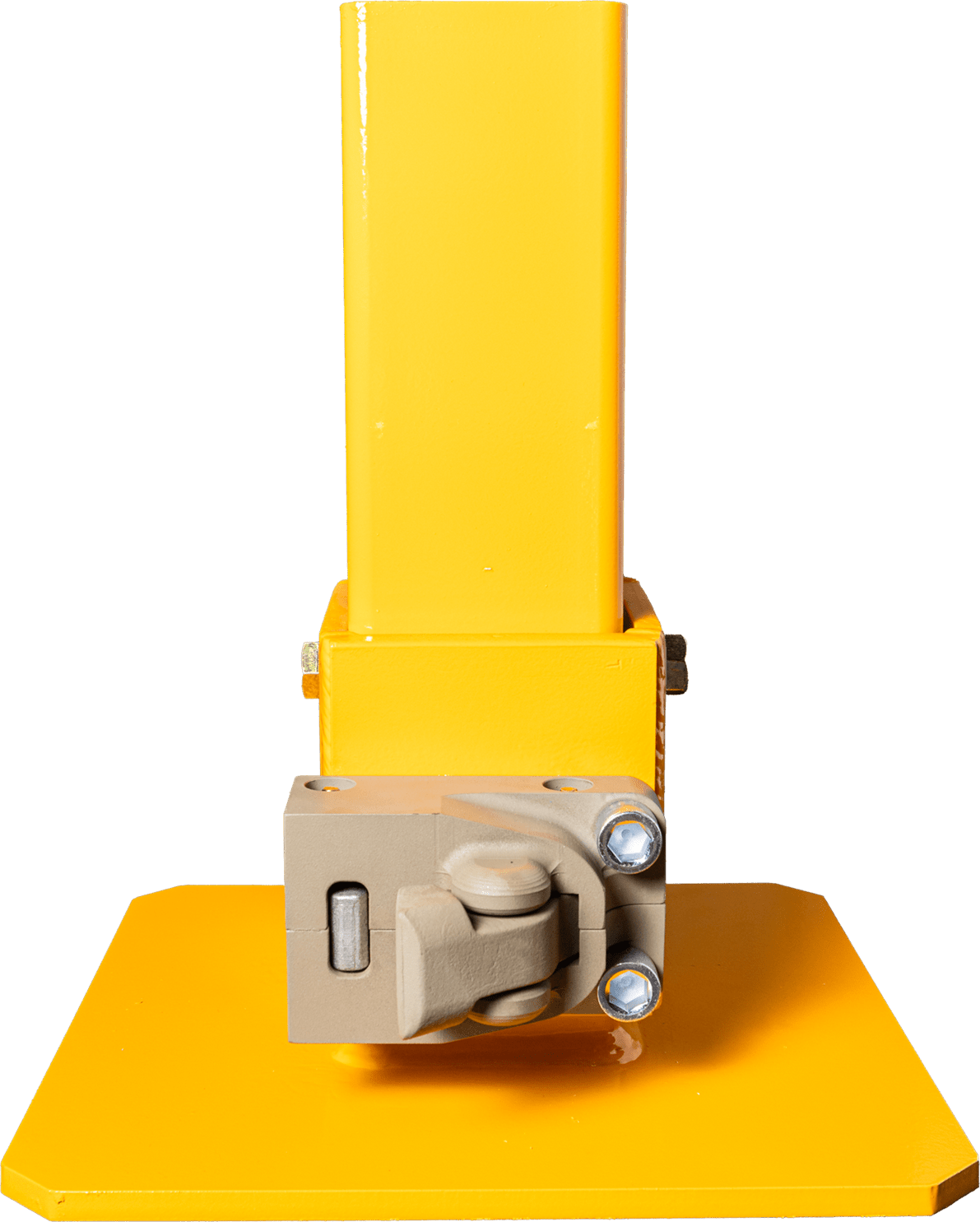

Min Height .88 inches

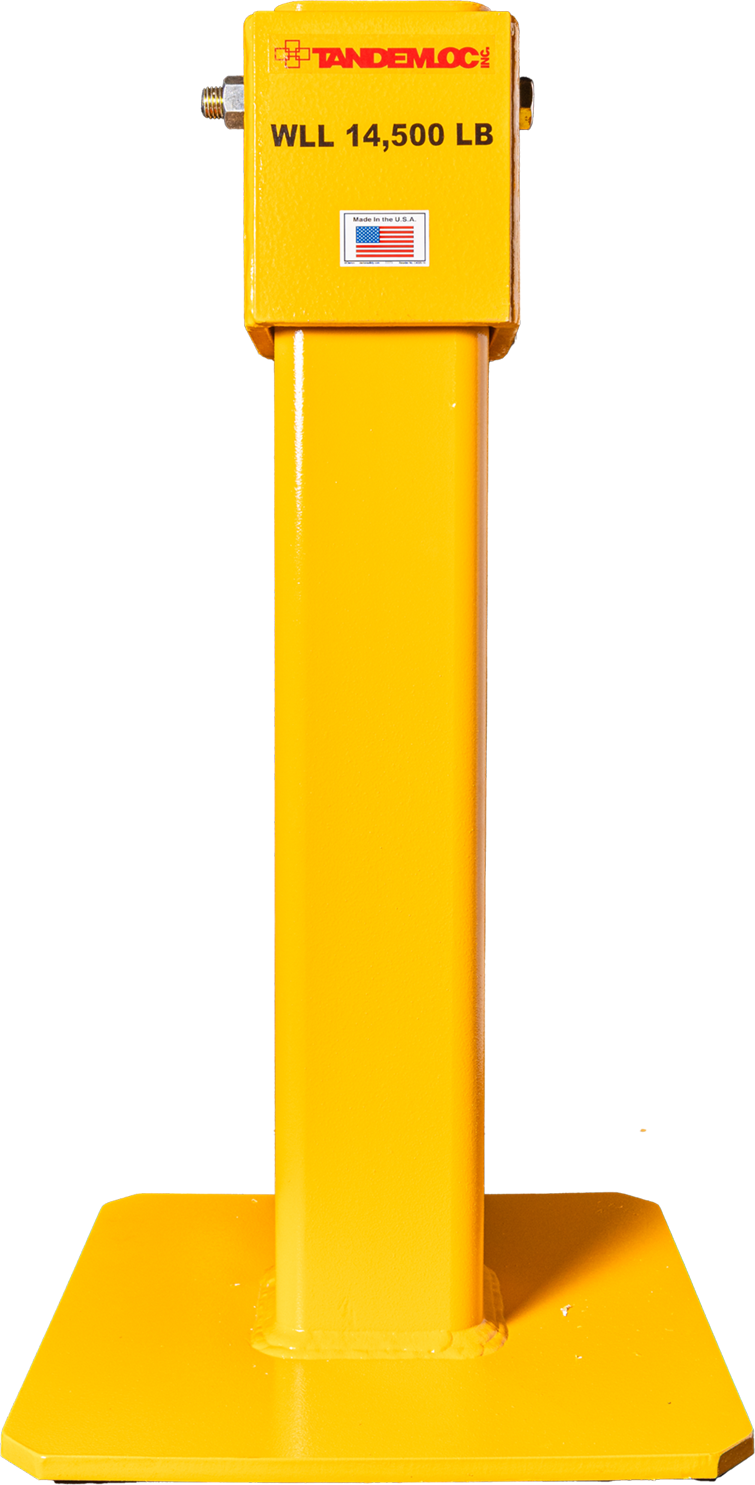

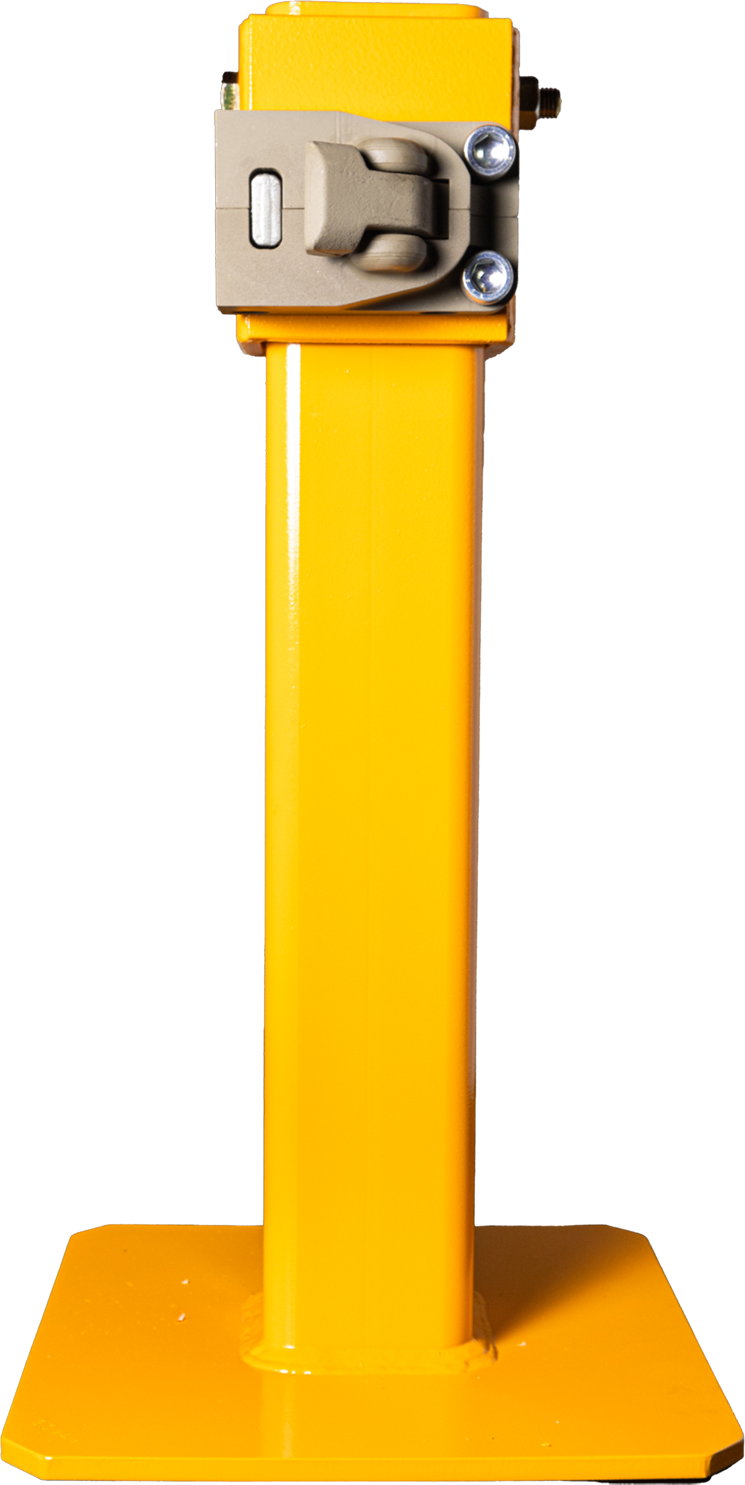

Max Height 12.88 inches
