N2501HD-1PA Heavy Duty Fastmounts

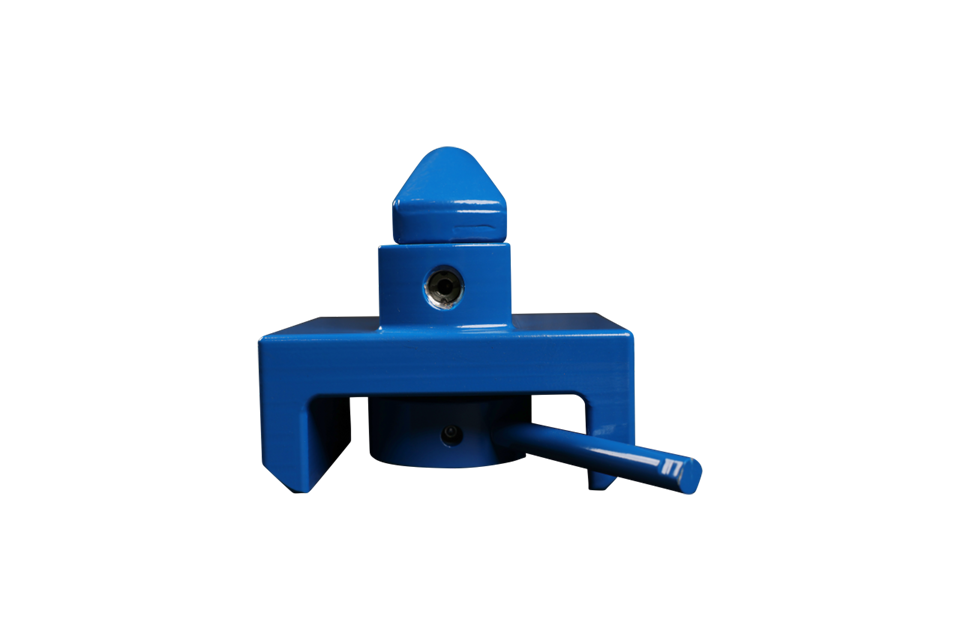

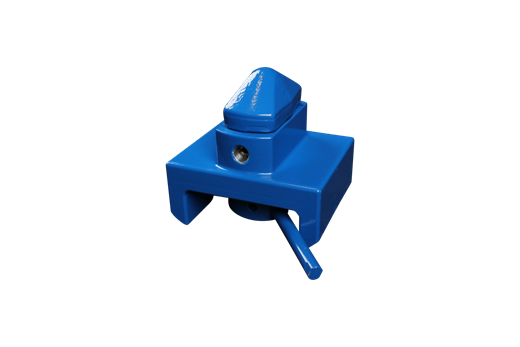

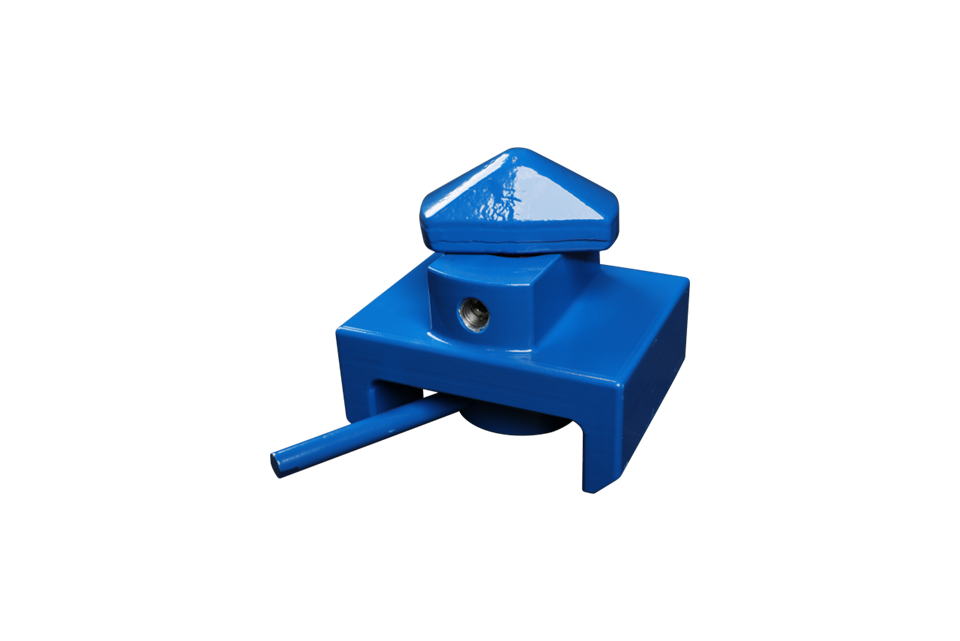

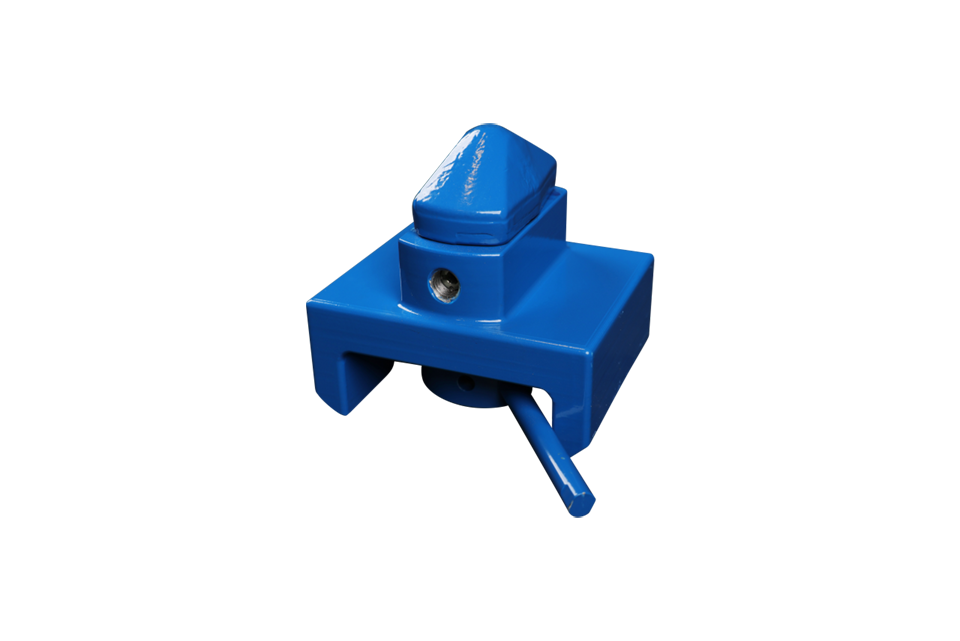

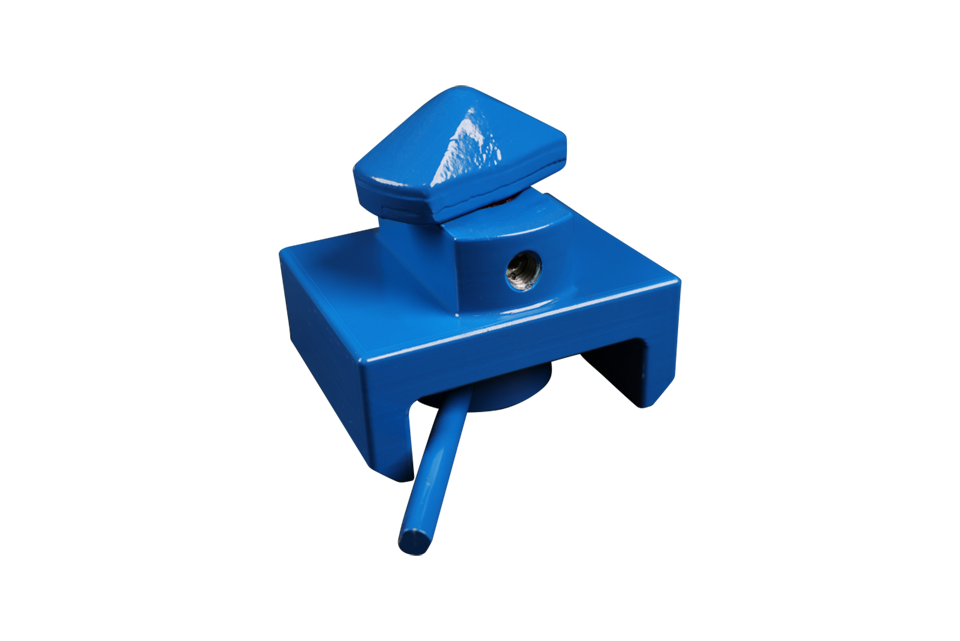

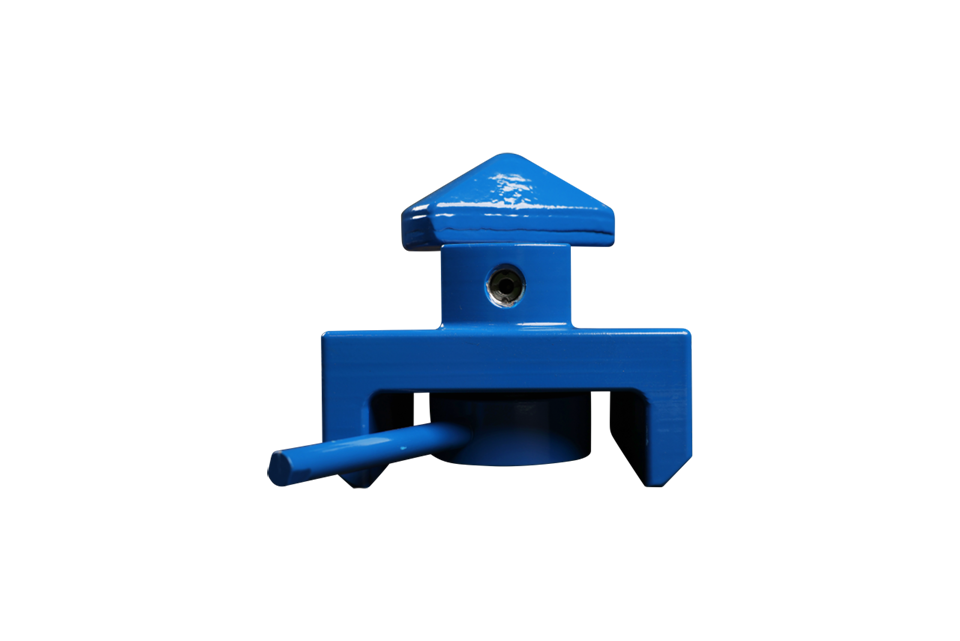

Heavy-Duty Fastmount

Just like our standard Fastmount but for applications that require even more strength, our Heavy-Duty Fastmount fits standard ISO corner fitting apertures.

The Heavy-Duty Fastmount offers a typical loose-fit lock, allowing for accumulating tolerances between container, corner fitting, and the heavy-duty fastmount. For a slack-free fit, try the Vertical VI-SO Clamp Connector (p/n: K08A00A-1GA), which also comes in a standard and heavy-duty design.

The Heavy-Duty Fastmount may be used on ship decks or trailers to secure containers. It may be welded to a surface or purchased welded to a variety of base plates, which may also included mounting holes for a bolt-on connection.

  • MATERIAL: Steel, paint primer coat
  • Strength ratings:
    Tension - 135,000 Yield; 173,000 Ultimate
    Longitudinal Shear - 100,000 Yield; 198,000 Ultimate
    Transverse Shear - 150,000 Yield; 288,000 Ultimate
    Compression - 270,000 Yield; 497,000 Ultimate
  • CAUTION: Not for attaching caster wheels to containers. Use N25000C-2GA caster locks which have tightening features.
  • *Note 4 (See drawing): Housing material is equal to ASTM A572 GR 50. If GMAW welding to ASTM A36 steel, Lincoln filler wire MC-710XL with shielding gas as required by AWS classification may be used. Also see detail W1 & W2.


Sales Drawing
