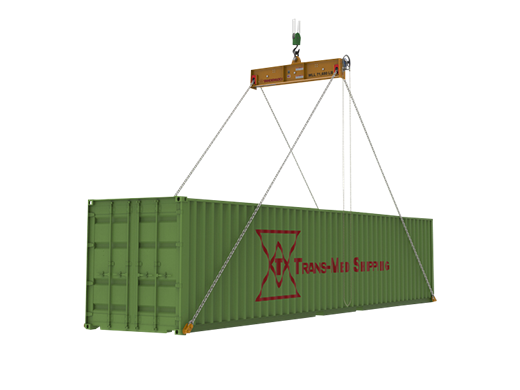

AA00000A SERIES Load Leveling Lift Beam

It adjusts in both Transverse and Longitudinal directions and boasts a Low Headroom Design. Adjust for off-center loads quickly and easily. Adjust in both directions, transverse & longitudinal. Fully adjustable in longitudinal direction - adjusts from one end of the container to the other! Lift Lugs are not handed and fit either right hand or left hand corner fittings and adjust to any angle of pull. Adjustments can be made from the ground.

  • PROOF TESTED to 125% of the Working Load Limit (WLL) and ships with certificate of test.
  • CALCULATED WEIGHT: See table below.
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies. Meets ANSI B30.20 and ISO 3874.
  • CUSTOM OPTIONS: Lift Beams can be customized for your application, inquire for other load capacities or sizes. Custom load ratings available.
Learn more about our paint process

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Model For Container Size Y Z WLL Weight (lbs.) Part Number w/Sensor YS ZS Sensor Size Sensor Weight In Stock Price* Buy Online
AA00000A-20-26 20 ft Container 1.5 3.38 26,000 LBS 1628 AA00000A-20-26S 2.25 5 C 98 lbs No $0.00
AA00000A-20-54 20 ft Container 1.5 3.38 53,760 LBS 2260 AA00000A-20-54S 2.25 5 C 98 lbs No $0.00
AA00000A-40-72 40 ft Container 1.5 3.38 71,680 LBS 2502 AA00000A-40-72S 3.13 7.3 D 238 lbs No $0.00
