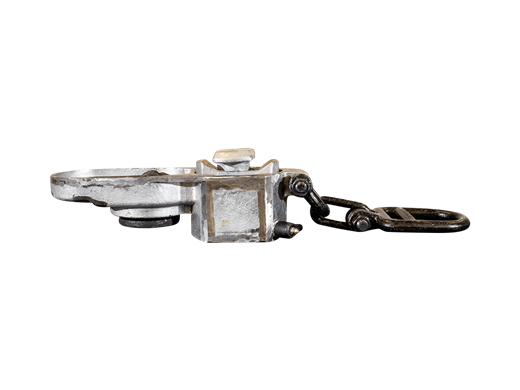

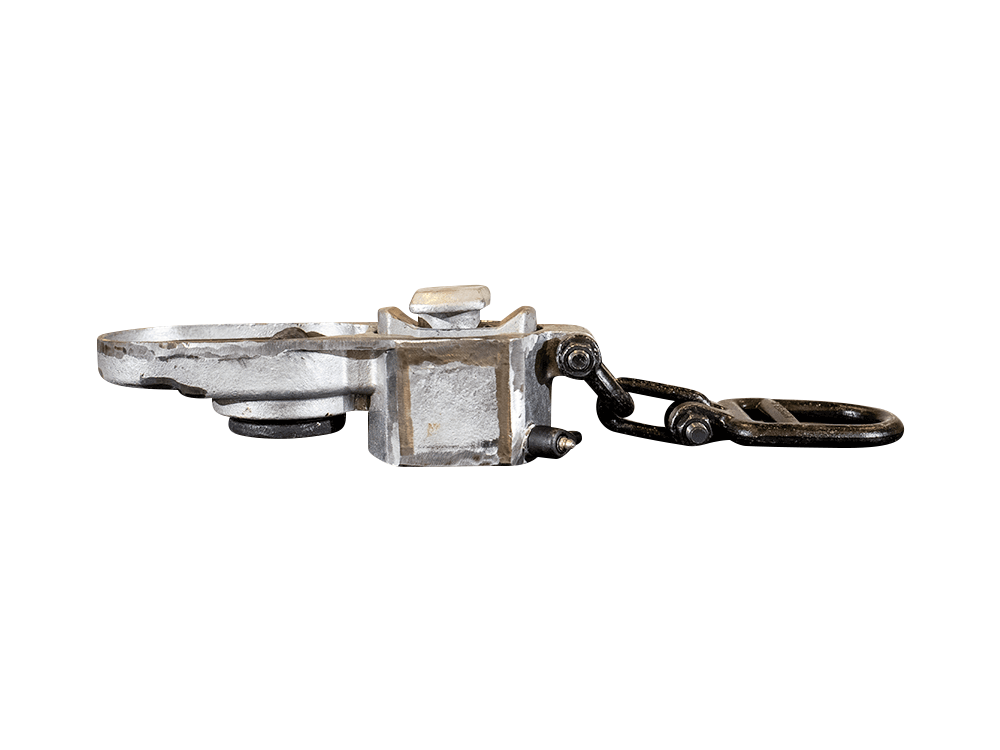

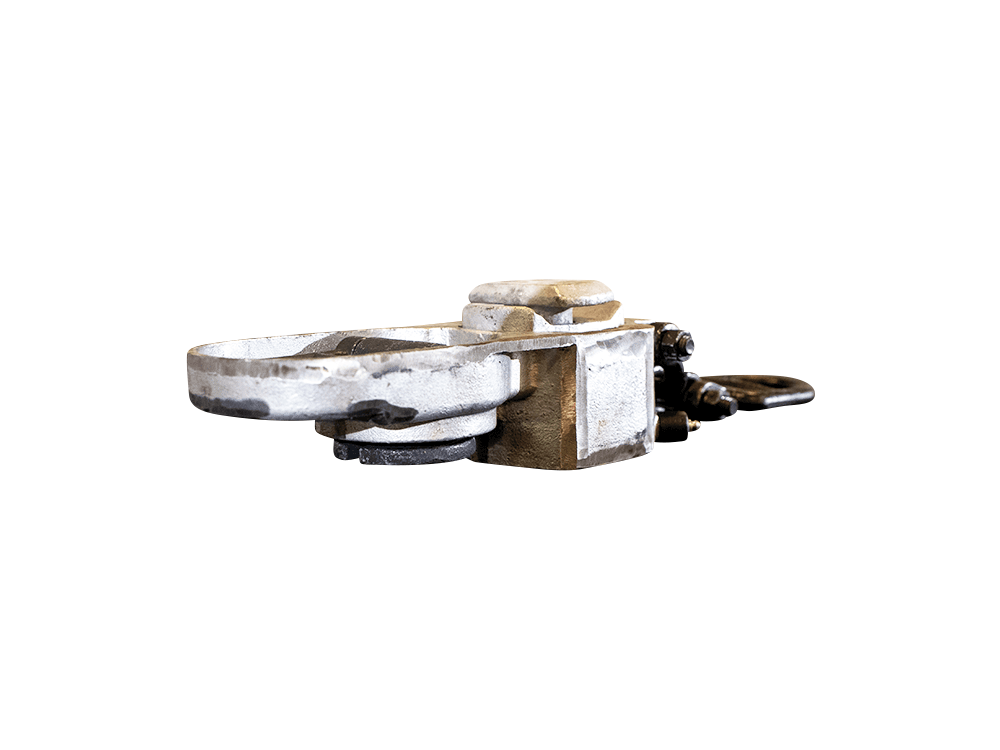

T42000C Series Shallow Combo Twistlock & Tiedown

The T42000C series Tiedown features a "screwdown" shallow depth ISO Twistlock and two Mil Std 209 Tie downs all within one cast steel weldable housing. This tiedown is beneficial when space is at a premium. See the T12000D Tiedown to compare depth space requirements. This very shallow design incorporates all of the same features as the T12000D, including a mechanism to prevent unwanted "unscrewing" or loosing while the vehicle is traveling over rough terrain. This product is fully galvanized, but we removed the galvanize at the weld zones. A wrench is available but purchased separately.

  • Kits are shipped unassembled except PC#1 which is partially assembled per dwg. ST42001B.
  • No grease is used to allow for future paint.
  • Locate connectors per "male fitting instructions" on Tandemloc Data Sheet DF-72047-16 (Sheet 2) for standard sized structures.
Learn more about our paint process

Please Register For Price Quote

We are now offering Job Shop Services

Do you need fabrication work done? We offer a complete complement of welding, machining and painting capabilities and invite your inquiry.

Contact Us

RFID

Enhance Operations Track and Authenticate RFID
CLICK FOR MORE INFO

Already a member Login Here

Model Description In Stock Price* Buy Online
T42000C-K2GD Unassembled Kit w/ Solid Swivel. All PCs except *PC 2A Yes --
T42000C-K3GD Unassembled Kit w/ Split Swivel. All PCs except *PC 2 Yes --
T42080C-1GA Wrench Only, PC 13 Yes --

PC. NO.-3LG QUAN.DESCRIPTIONUNIT WEIGHT
1 1 T42070B-1GW COMBO SHALLOW BODY, CAST, GALV. GROUND 8.5 LB.
2 1* S33002A-MGB SWIVEL RETAINER, GALV./BLACK TOP-CT 1.63 LB.
3 1 S33003A--1GB TIEDOWN CLEVIS, GALV. /BLACK T-CT 1.13 LB.
4 1 S33004A-3DL CLEV. PIN, DACROMET /BLACK T-CT .204 LB.
5 1 SCP0005XXXX0075 COTTER PIN CRES FOR.062 HOLE X.75 LG .007 LB.
6 1 DHB005013000350 HEX BOLT GR 8 STL DACROMET/BLACK1 0.225 LB.
7 1 BLS005013000044 2 WAY LKNUT,STL DACROMET/BLK T- CTD 0.086 LB.
8 1 T12150C-1GB CLEVIS LINK, STL, GALV./BLACK T-CT 0.400 LB.
9 1 T12175C-1GB MID LINK, STL, GALV./BLACK T-CT 0.227 LB.
10 1 DHB005013000225 HEX BOLT GR 8 STL, DACROMET BLACK 0.15 LB.
11 1 T12125C-1GB TIEDOWN RING OUTER, GALV./BLACK T-CT 1.42 LB.
12 1 T42001B-2GA INTERNAL ASSEMBLY, GALVANIZED 6.00 LB.
13 - T42080C-1GA SPANNER AND SOCKET WRENCH .94 LB.
14 .001 oz. $LON271 PERMANENT THREAD LOCK SOLUTION .001 OZ.
15 1 T42097B-1D0 LOCK PAWL, DACROMET W/ BLACK T-CT .10 LB.
16 1 $LEELC046GH-1SS PAWL SPRING, CRES .004 LB.
17 1 T42095B-1D0 LOCK KNOB, DACROMET W/BLACK T-CT .054 LB.
18 1 DSH003118000100 SET SCR CUP PT.G8 STL DACRO/BLK CTD .023 LB.
19 1 $LBEGHD1028 GREASE FITTING, 3/16 DR, ZINC PLATED .007 LB.
20 1 $MON281;75IL9500B BLACK VINYL CAP .281 ID X .75 LG. .007 LB.
2A 1 S33002A-2GB SWIVEL HALVES SET GALV. BLACK T-CT .007 LB.
