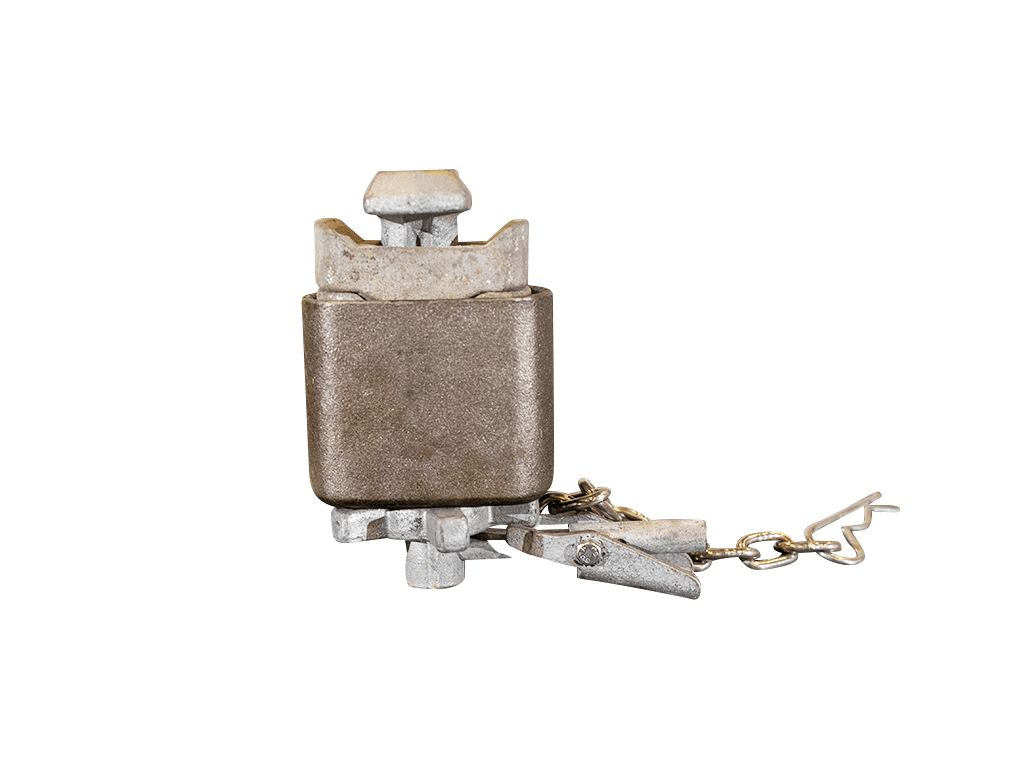

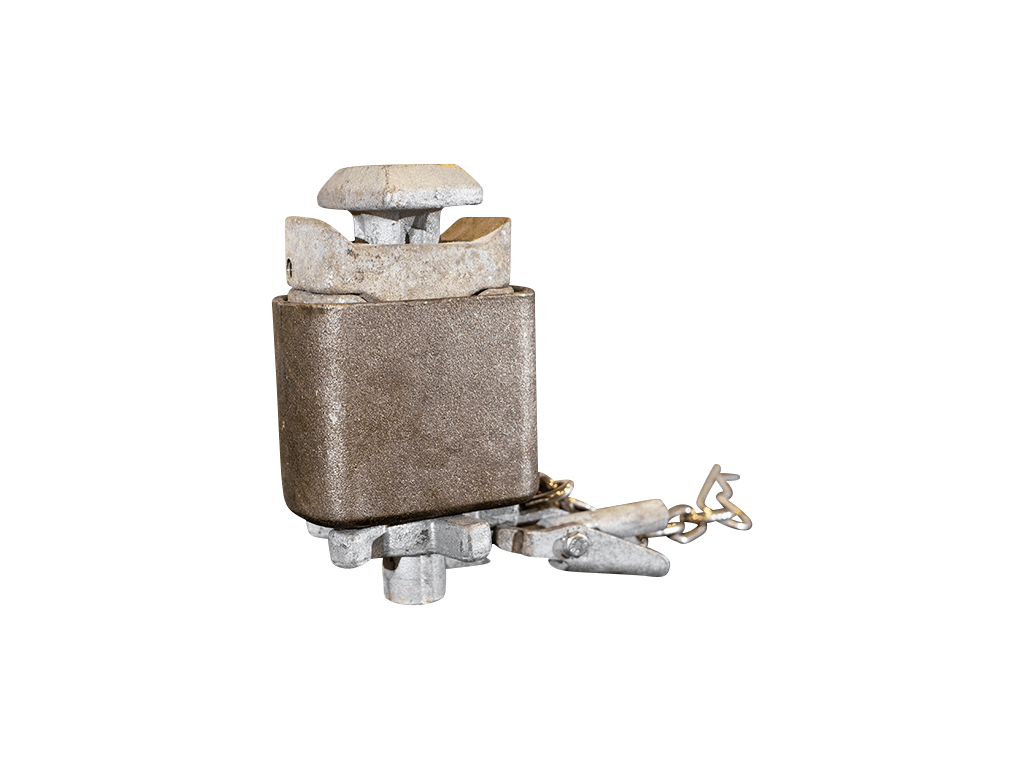

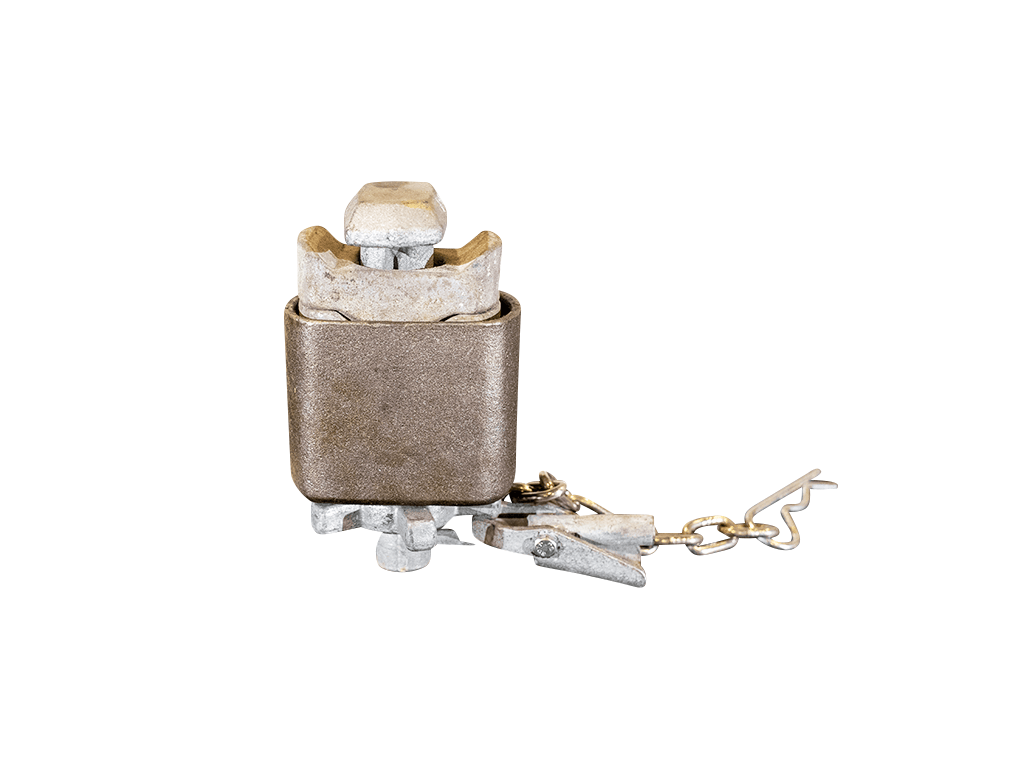

T12000E-1GO

SCREW-DOWN TWISTLOCK

This Retractable Twistlock incorporates a screw-down feature that provides a tight connection.

And, the screw-down feature will not loosen as the design includes a spring loaded "trigger" which captures the spin nut . The screwdown Twistlock internal sub assembly can be used in our standard Retractable Trailoc Housing, or the "3 in 1"type Housing, both shown on separate pages below.

  • Used on Military truck beds to secure general cargo and containers.
  • Also available in a very shallow design.
  • Meets MIL STD 209
  • Twistlock meets ISO 3874
  • STRENGTH DATA: Upward Restraint - 44,000 LB. Ult. Transverse Shear - 30,000 LB.* *(Shear Rating can be increased if requested.)
  • Locate connectors per "male fitting instructions" on Tandemloc Data Sheet DF-72047-16 (Sheet 2) for standard sized structures.
  • Download the Assembly and Use Data Sheet in PDF Format

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

PC. NO.-1G0/-100PART NO. AND DESCRIPTIONUNIT WEIGHT
1 1 T12095A-1GA BAYONET, MACH., GALV. 3.70 LB.
2 1 806150B-1ZN RETAINER SCREW/FLUSH GREASE FIT. ASSEM. .017 LB.
3 1 $LEELC-063G-2SS COIL SPRING, STAINLESS STEEL .008 LB.
4 1 $WIE-BALL50CRES ½"BALL, STAINLESS STEEL .017 LB.
5 1 T12093A-1GA-L BLOCK, PUSH, LEFT HAND 1.730 LB.
6 1 T12094A-2GA-R RIGHT LOC BLK W/STOP SCREW DN 1.720 LB.
7 1 SRP0025XXXX0200 PIN, SPRING, 1/4 X 2, STAINLESS .020 LB.
8 1 T12099A-1GA NUT, BAR, 5, SPINNER, GALVANIZED .900 LB.
9 1 T12096A-1GAL LANYARD, HANDLE, H.D. GALV. W/ .440 LB.
10 1 SS1003118000038 SCREW, SET, CONE PT, STAINLESS STL .003 LB.
11 1 T12098A-1GA LOCK, LEVER, HOT DIP GALVANIZED .280 LB.
12 1 T12097A-2SS SPRING, STAINLESS STEEL .004 LB.
13 1 SHB002520000475 BOLT, HEX HEAD, 1/4"-20 UNC .019 LB.
14 1 SPS002520000031 LOCKNUT, 1/4"-20UNC, STAINLESS .001 LB.
15 .012 ML. $LON271 LOCTITE 271 PERM. THREAD LOCK NIL
18 1 80607AA-T00 HOUSING, TRAILOC, STEEL, SELF COLORED 3.50 LB.
