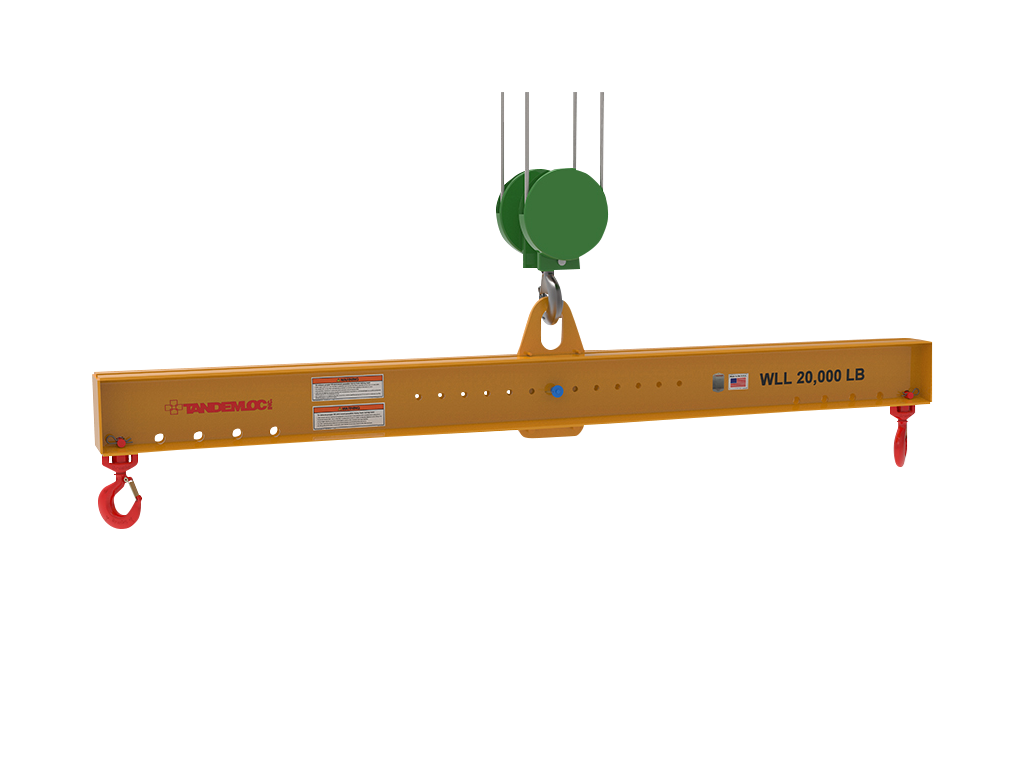

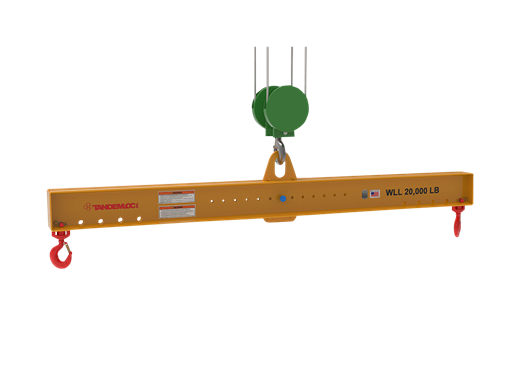

AD12000A-1PA Lift Beam

The AD12000A-1PA has a lift eye that can be adjusted for off-center loads

Similar to the AE18000A-1PA and the AD28000A-1PA. It adjusts 2 feet on either side of the middle in 4-inch increments. The cargo hooks are also movable, providing an overall spread of 96 inches to 144 inches in 6-inch increments. Of course, this versatile lift beam is a style that can be easily tailored by Tandemloc to meet your specific needs. We can offer it in other capacities, lengths, and adjusting increments. Just tell us what you need and we will make it happen.

  • PROOF TESTED to 125% (25,000 LB) and certified.
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies. Designed to meet or exceed ASME B30.20.
  • CUSTOM OPTIONS: Lifter can be customized for your application, inquire for other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.


Sales Drawing

Enhance Operations Track and Authenticate RFID

Already a member Login Here

Type Lift Beams with Hooks
WLL 20,000 LBS
Btm Spd Min 12 ft
Btm Spd Max 12 ft
