AD28000A-1PA

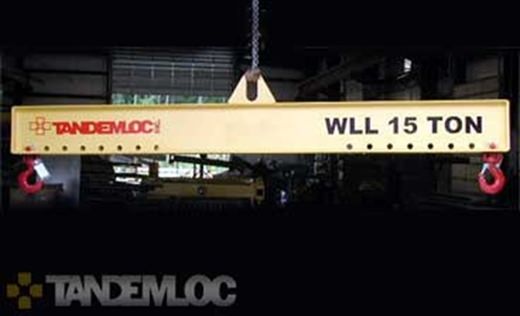

LIFT BEAM WITH SWIVEL HOOKS, 12' MAX. SPAN

This liftbeam incorporates swivel hooks for load positioning and a large bail opening for the crane hook.

This is a style that can be easily customized to meet your capacity and could be outfitted with hooks that can swivel while under load.

  • PROOF TESTED to 125% (37,500 LB) and certified.
  • CALCULATED WEIGHT: 1,525 LB.
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies. Designed to meet or exceed ASME B30.20.
  • CUSTOM OPTIONS: Lifter can be customized for your application, inquire for other load capacities or sizes. The swivel hooks shown are not designed to swivel under load. If swivel under load is required, these hooks may be provided at additional cost.

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Type Lift Beams with Hooks
WLL 30,000 LBS
In Stock No
Btm Spd Min 12 ft
Btm Spd Max 12 ft
