806000N-U00

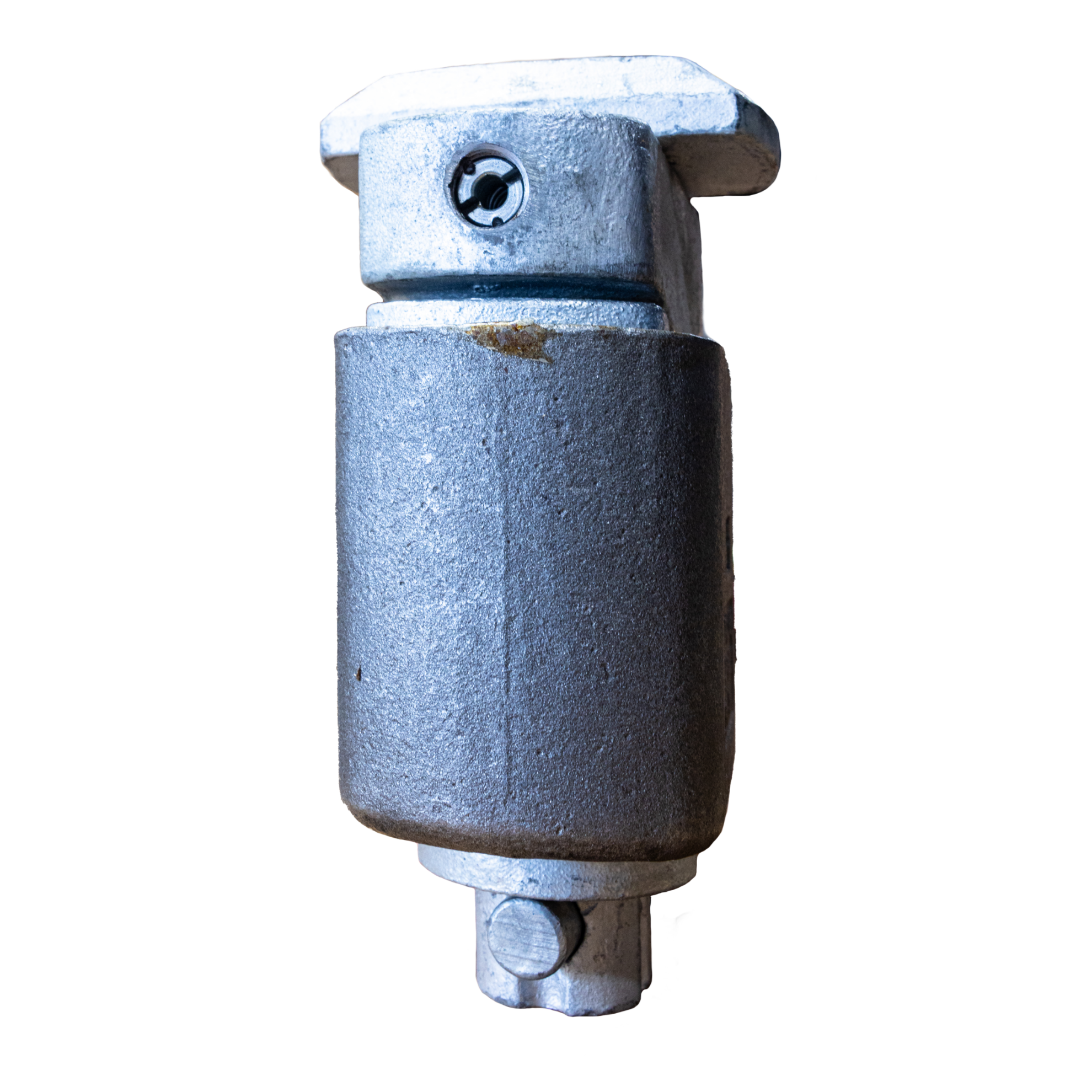

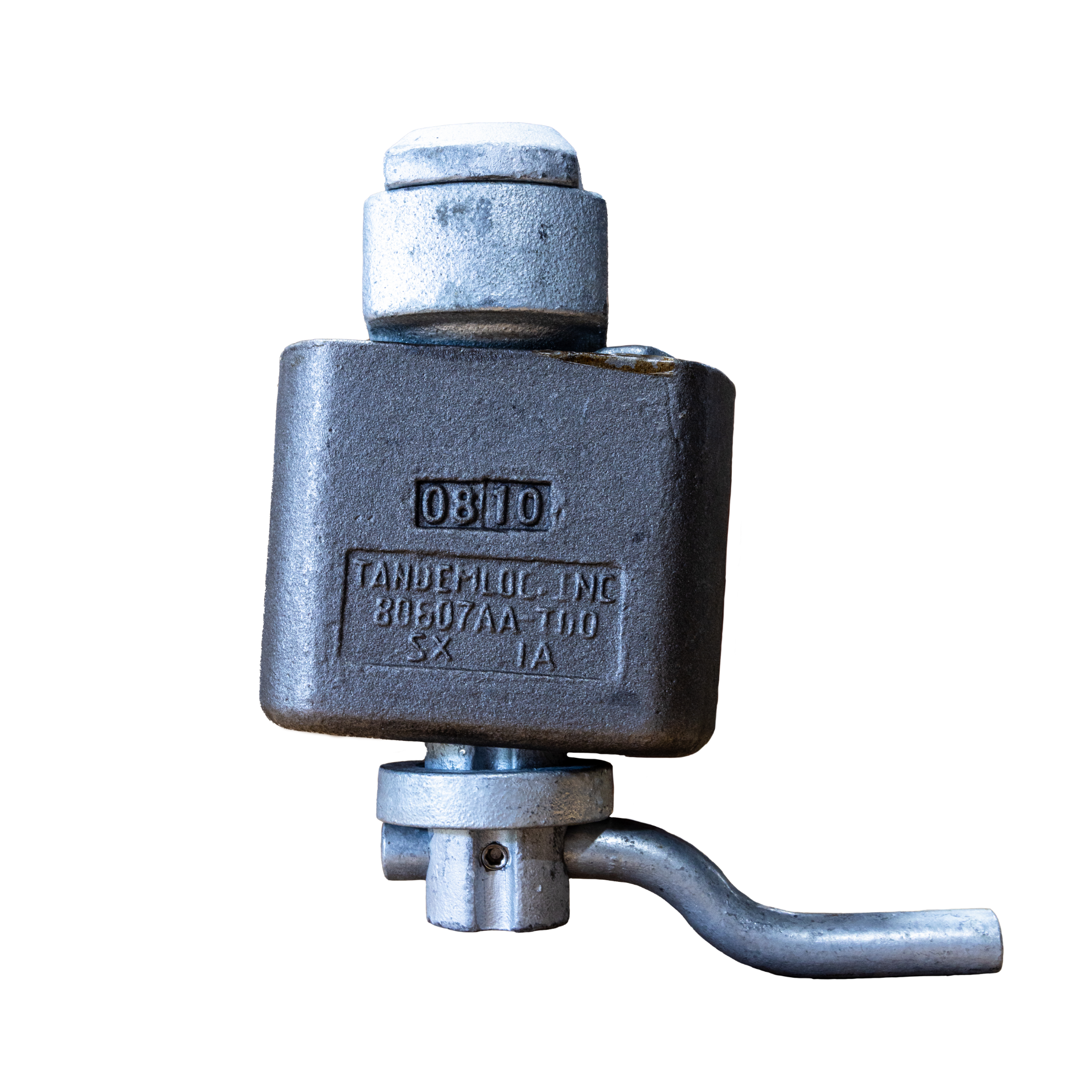

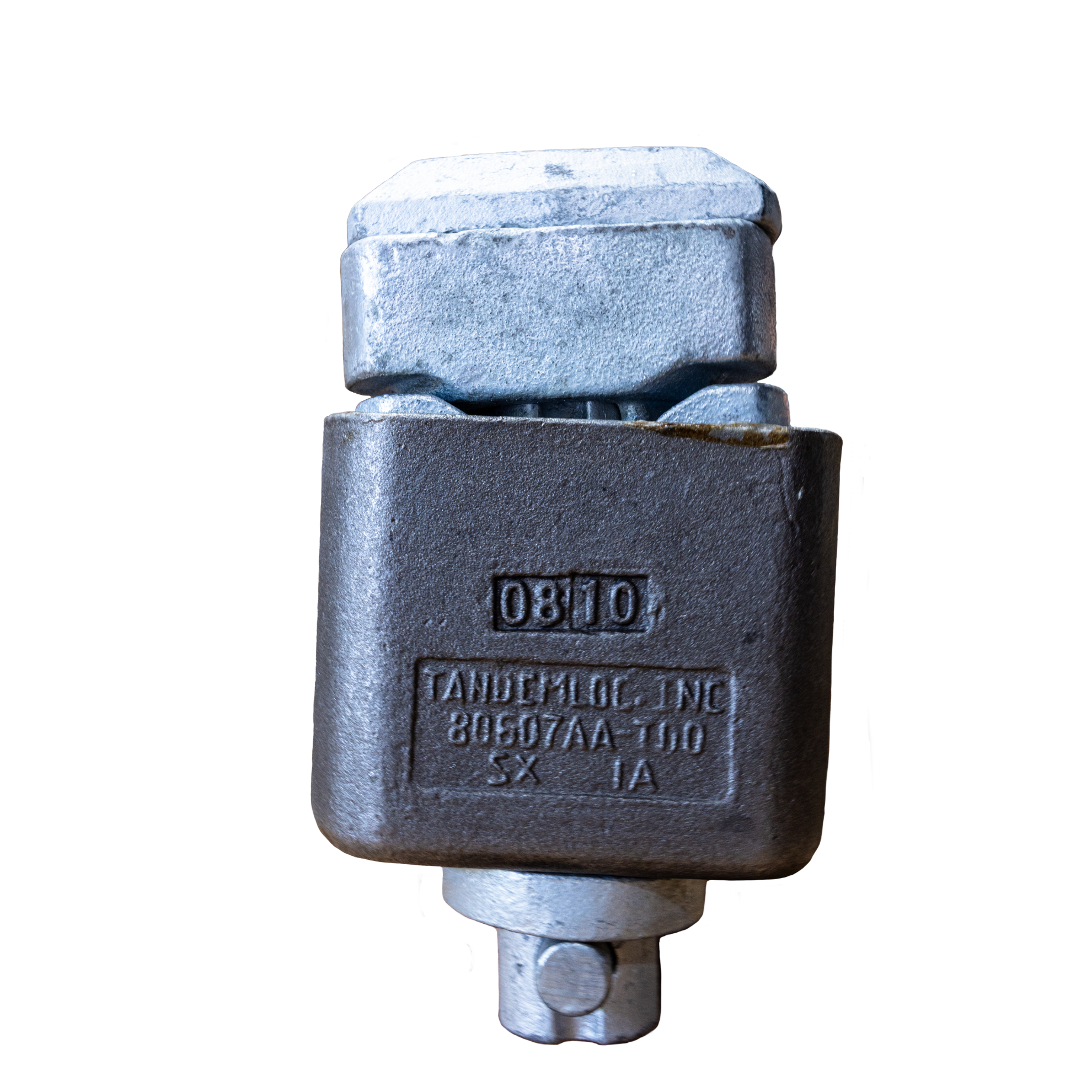

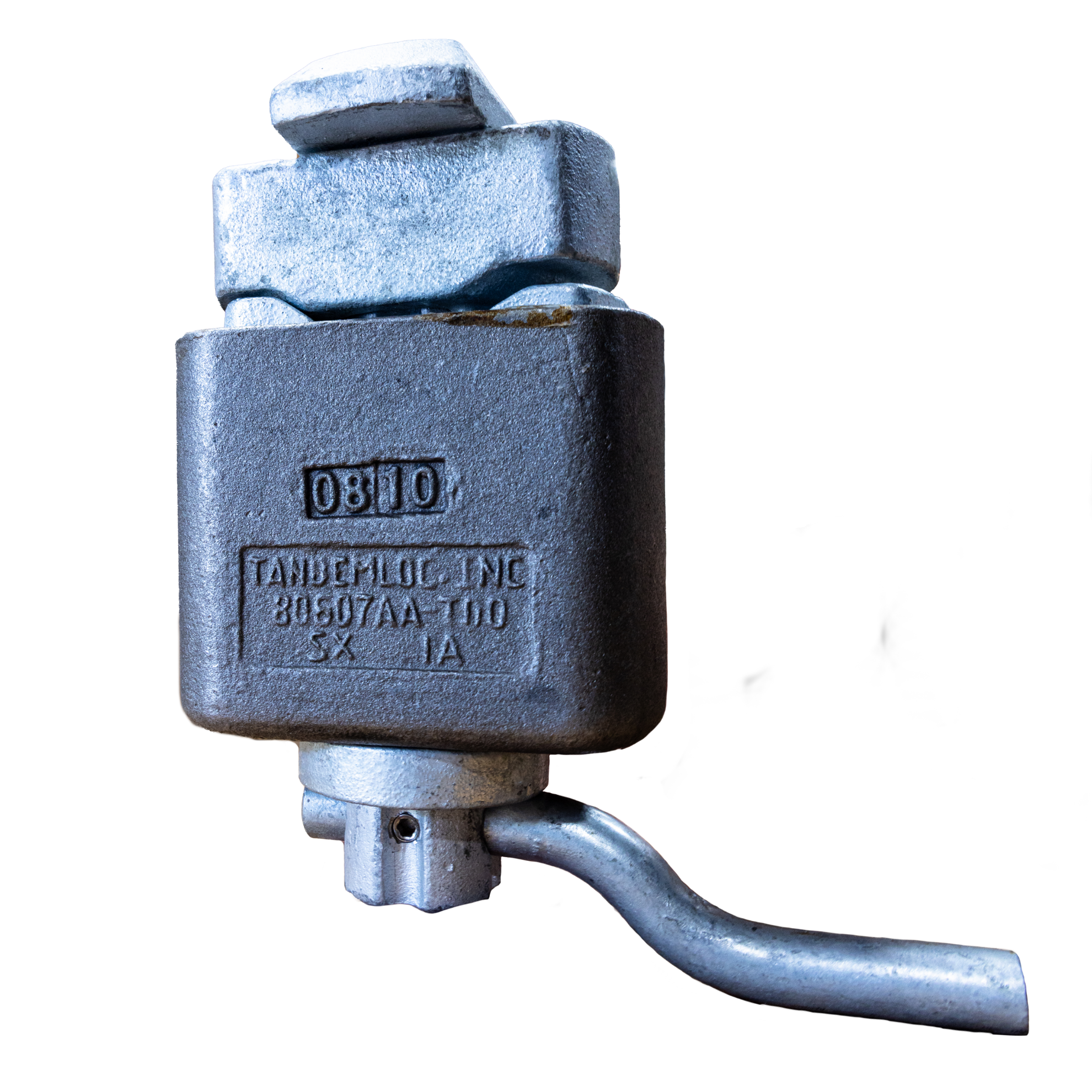

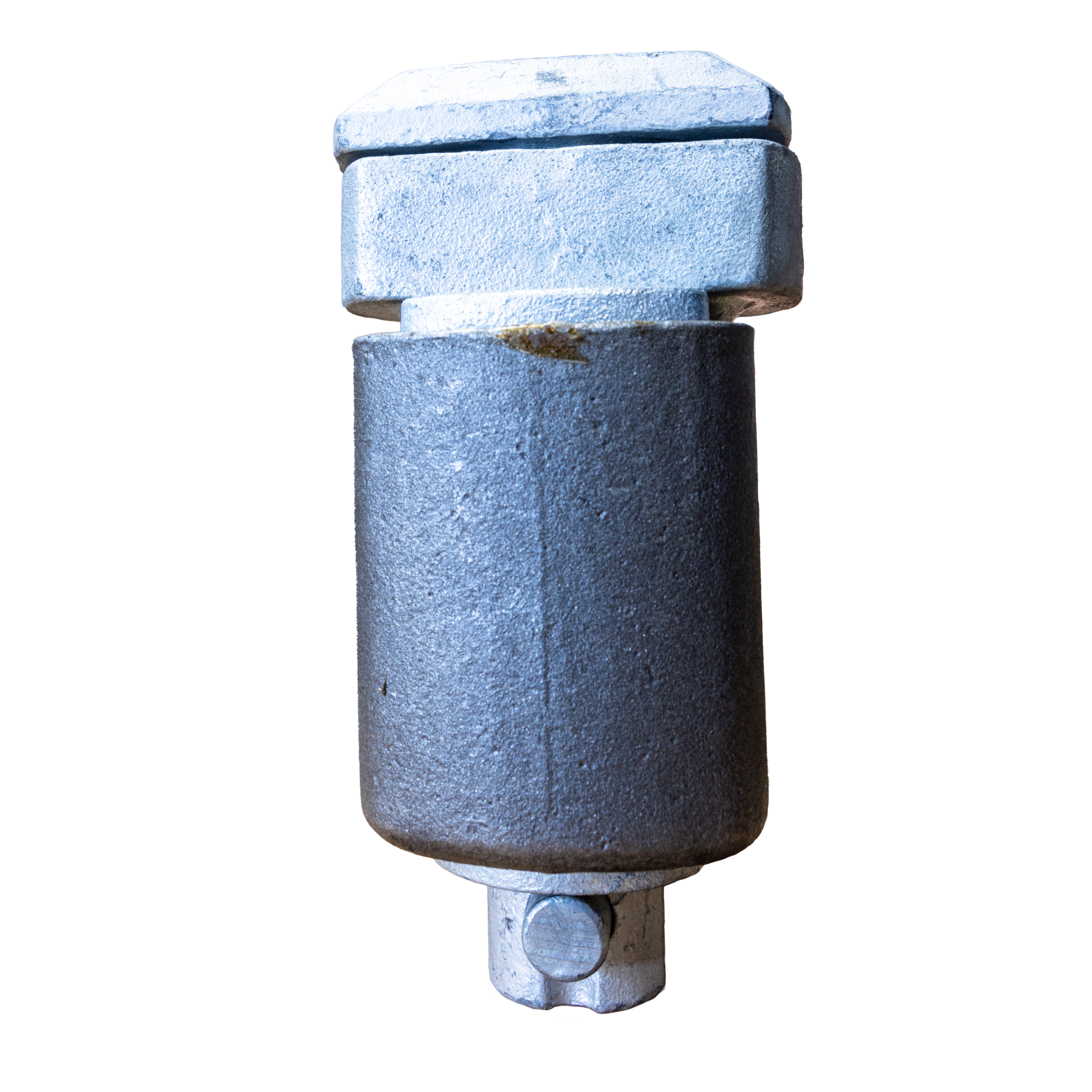

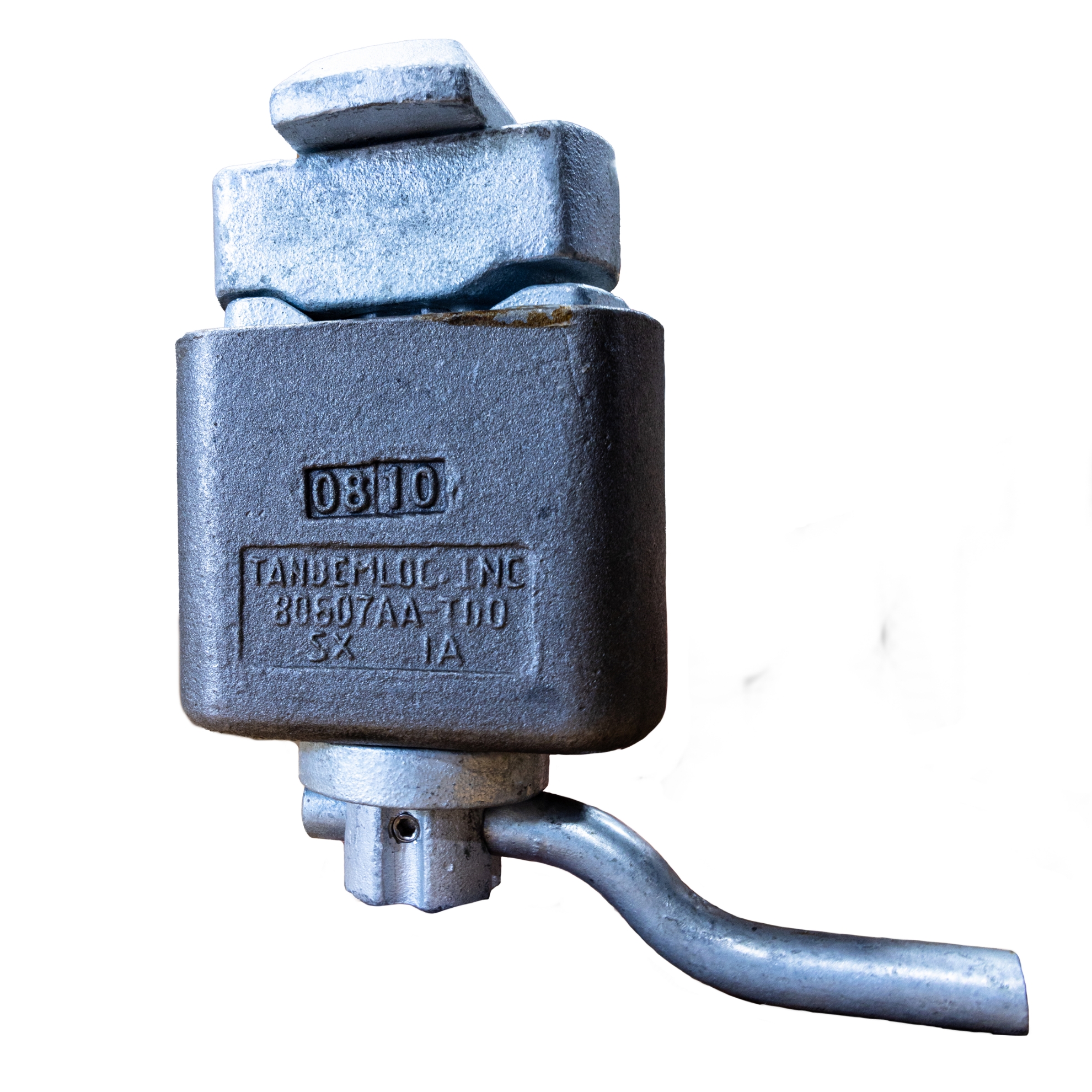

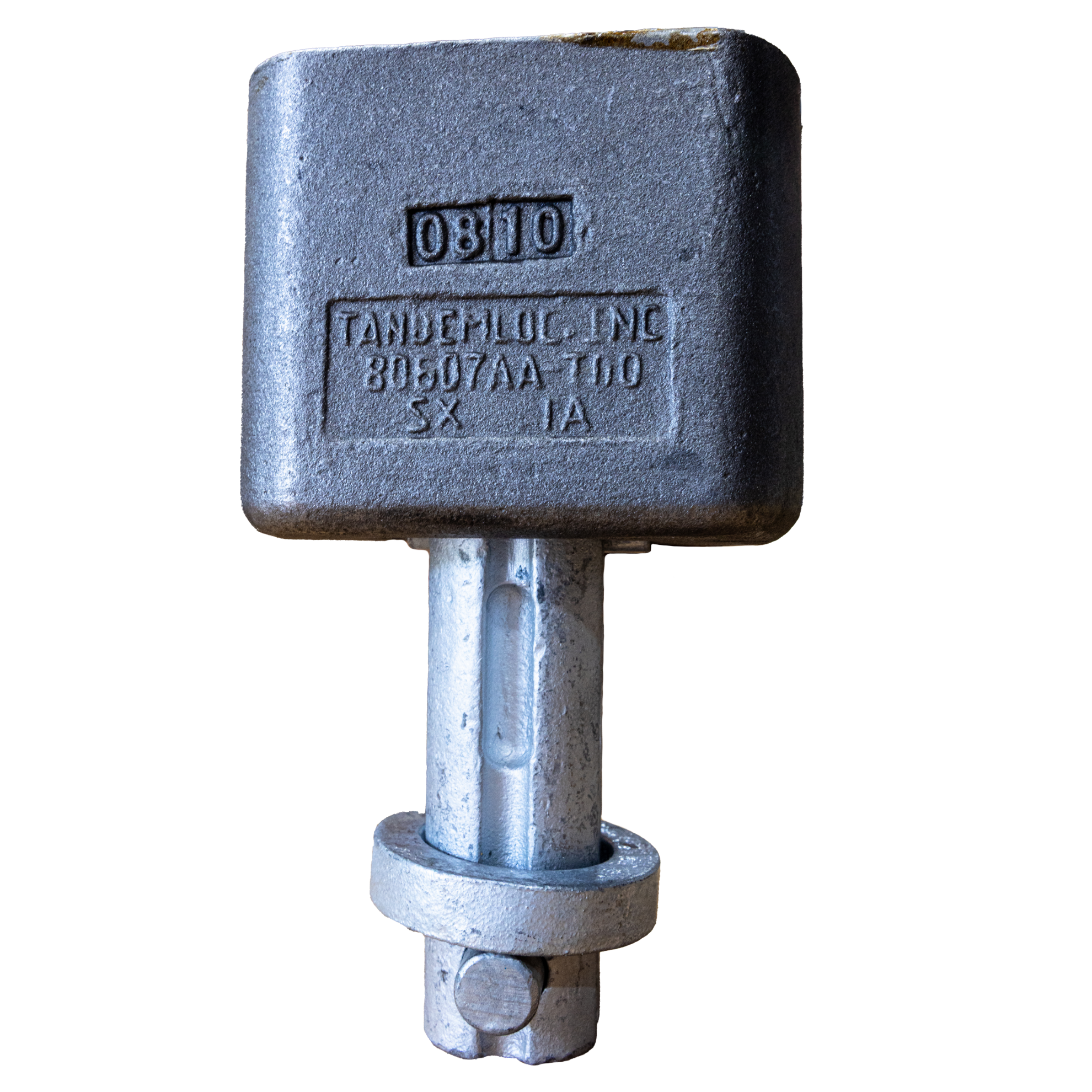

Trailoc, Retractable Universal Type W/ Bent Handle

Originally designed for the United States Marine Corps, this retractable twistlock is well suited for flat bed type trailers.

When retracted, the twislock is flush with the bed, enabling the flat bed to carry non containerized cargos. A very economical device, the Trailoc, with bent handle and hot dipped galvanized internal castings.

  • Upward restraint - 44,000 LB.
  • Ultimate transverse shear - 30,000 LB* *(Shear rating can be increased if requested.)
  • WEIGHT: 12.0 LB.
  • FINISH: The one PC housing is self colored for ease of welding. All other parts are Hot Dip Galvanized except for the fasteners, which are zinc plated, and the internal ball and spring which are stainless steel.
  • Locate connectors per "male fitting instructions" on Tandemloc Data Sheet DF-72047-16 (Sheet 2) for standard sized structures.

$47.70

Download PDF
RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

PC. NO.QUANTITYPART NO. AND DESCRIPTION
1 1 80607AA-T00 Housing, Lightened, Self-Colored
2 1 806001P-T00 Univ. Internal Assembly w/ Bent Handle Galvanized
3 SEE NOTE ABOVE $LUESSUPERFILM GREASE
