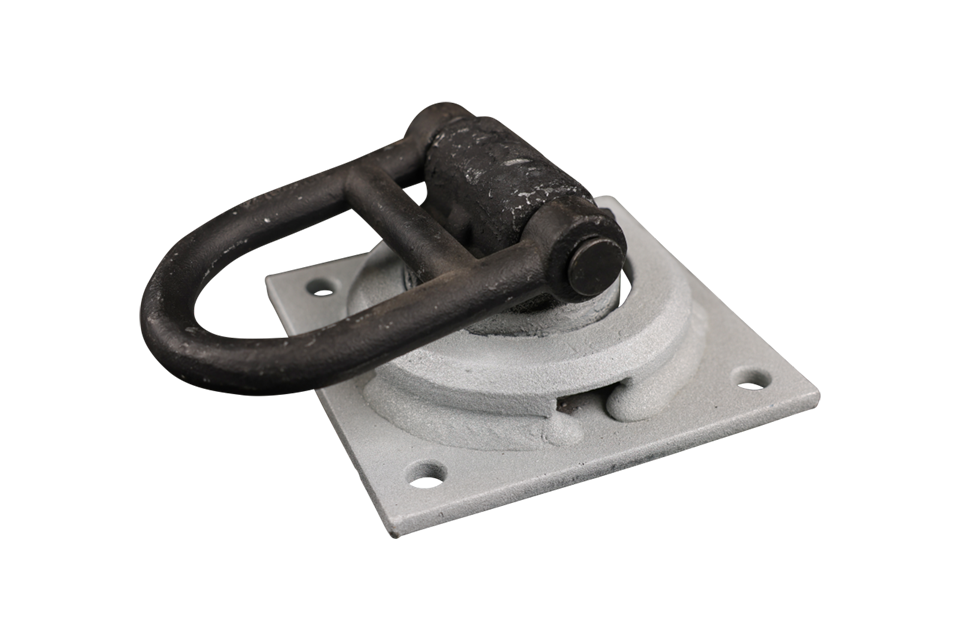

S33000E-C01P Raised Swivel Tiedown Ring

The S33000E-C01P Raised Swivel Tiedown Ring with Plate is great for users who do not want to weld to a structure – it can simply be bolted down.

Similar to the S33000A series except that it incorporates a low profile, fully weldable, compact housing that can be surface mounted or flush mounted. See the S33000A series for flush-mounted applications.

The S33000E-C01P Raised Swivel Tiedown Ring with Plate rotates 360° about the vertical plane and 150° horizontal. It will swivel and swing to the load plane within these angles. The tiedown ring will work with hooks or you can lash flat bands to the ring's cross bar.

  • LOAD CAPACITY: 10,000 Lbs. (Single Tension)
  • Safety Factor to Ultimate Strength is 1.5 Min.
  • WEIGHT: 5.75 Lbs.
  • Designed and Manufactured to Meet or Exceed ASME B30.20 and BTH-1, Design Category B, Service Class 0
  • To MIL-STD-209K
  • Standard specification #EAD21000A Applies
Product Notes

This tiedown rotates 360° about its vertical axis and a min of 150° about its horizontal axis. It is designed to swivel & swing to the tension load plane of the tiedown within those angles.
