Q0800AA-2PA Forklift Container Spreader Frame

Forklift Spreader, 40' with 4 Leg Sling

This container lift spreader can be used with a fork lift or a crane for added versatility over other container lifters.

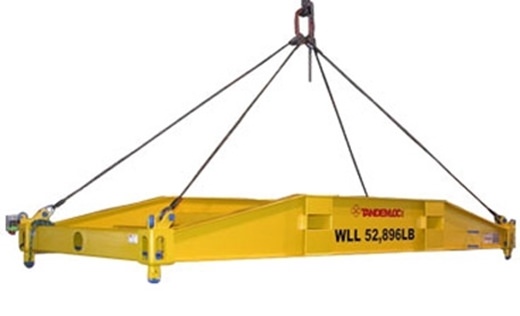

Each lift mode is proof tested, as well! The photo shows the 20’ version spreader lifted by the sling while the drawing below shows the spreader without the sling. For Standard 20' ISO freight containers with ISO 1161 corner fittings.

  • PROOF TESTED:
    40': PROOF TESTED to 125% (84,000 LB) and Certified
  • CALCULATED WEIGHT:
    40': 9,000 LB.
  • FINISH: Sandblast, prime and paint safety yellow.
    40': Designed and Manufactured to meet or exceed ASME B30.20
  • STANDARDS: Specification #EAD21000A applies.
  • CUSTOM OPTIONS: Lifter can be customized for your application, inquire for other load capacities or sizes.

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Type Forklift
WLL 67,200 LBS
Top Rigging Included Yes
Spreader Length 40 ft
