AE09000A-1PA

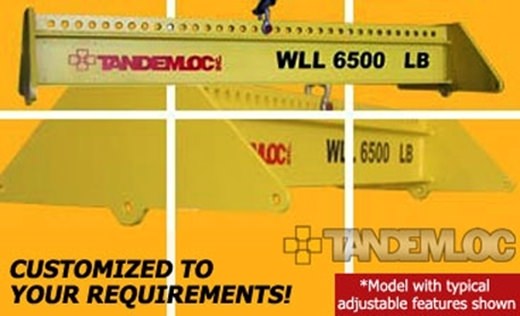

Four Point Adjustable Lift Beam

Lift beam with a multi-pick padeye giving tremendous adjustment for off-center lifts.

The ends of the lifter are designed for multiple pendants. This lifter was specially designed for a particular application, but could be altered to suit your requirements. TANDEMLOC offers a tremendous library of products and most of them can be customized.

  • PROOF TESTED to 125% (8,125 LB) and certified.
  • CALCULATED WEIGHT:
    310 LB. (Configuration 1)
    317 LB. (Configuration 2)
    305 LB. (Configuration 3)
  • FINISH: Sandblast, Prime and Paint Safety Yellow
  • STANDARDS: Specification #EAD21000A applies. Meets ANSI B30.20.
  • CUSTOM OPTIONS: Can be customized for your application, inquire for other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Type 4 Point - Adjustable
WLL 6,500 LBS
Min Extension 79 inches
Max Extension 79 inches

Configuration One


Configuration Two (See Configuration 1 for beam details)


Configuration Three (See Configuration 1 for beam details)
