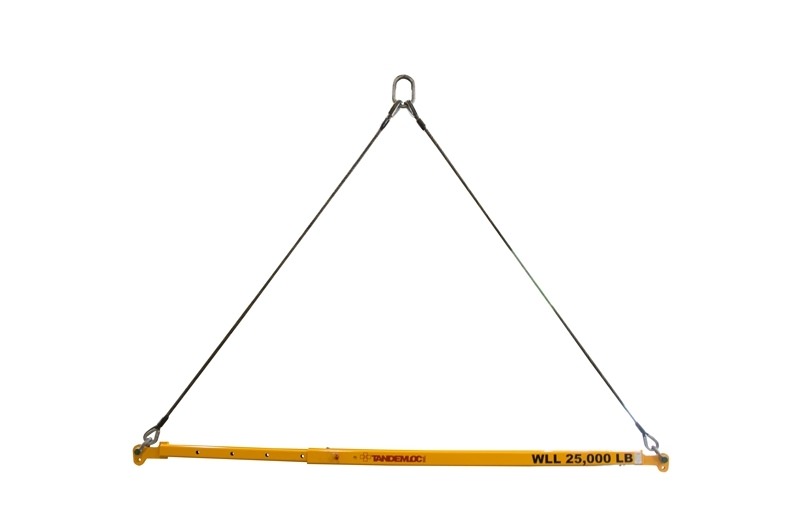

AD27001A Telescopic Spreader

Telescopic Spreader with/without Sling

The telescoping bar offers a wide range of minimum and maximum lengths in convenient increments of only a few inches. We have a wide selection of telescopic spreaders, contact us if you do not see what you need.

Spreader bar end design can be made with clevis ends to eliminate shackles. Also, the bars can be designed for low sling angles.

Everything is proof tested without extra charge.

  • PROOF TESTED to 125% (31,250 LB) and Certified
  • CALCULATED WEIGHT: Spreader: 425 LB; Sling Assembly: 120 LB
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies.
  • Designed and Manufactured to meet or exceed ASME B30.20 and BTH-1, Design Category B, Service Class 0.
  • CUSTOM OPTIONS: Spreaders can be customized for your application, inquire for other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Learn more about our paint process

Please Register For Price Quote


Enhance Operations Track and Authenticate RFID

Already a member Login Here

Model Additional Details Weight (lbs.) Type WLL In Stock Top Rigging Included Min Extension Max Extension Price* Buy Online
AD27001A-1PA Telescopic Spreader Beam
425 Spreader with Sling 25,000 LBS Yes No 11 ft 18 ft
Type Telescopic
WLL 25,000 LBS
Top Rigging Included Yes
Min Extension 11 ft
Max Extension 18 ft
