AA45000A-2PA Load Leveling Container Spreader

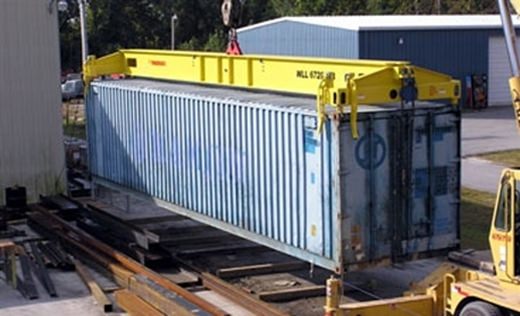

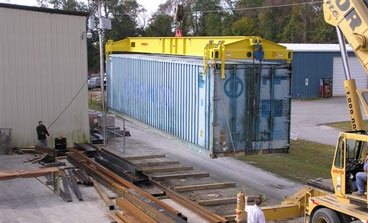

Load Leveling 40' Container Lift Spreader, Low Profile

Probably the finest non-powered 40' container lifter on the market.

The AA45000A-2PA offers a reduction in headroom of over 16 feet, when compared to typical spreaders that use a 4-legged sling, dramatically reducing crane boom height. The lift point can travel as much as 48" on either side of center by simply pulling chain, just like you would on a chain hoist. Under load, the lift point will stay put. Flipper guides help the crane operator land the spreader properly onto the container. This is a new, value packed, simple yet rugged device using the very same proven TANDEMLOC spreader components that have seen over 30 years of experience.

  • PROOF TESTED to 125% (84,000 lb) and certified.
  • CALCULATED WEIGHT: 12,000 LB.
  • FINISH: Sandblast, prime and paint safety yellow.
  • SAFETY FACTOR: 3:1 to yield, 5:1 to ultimate.
  • STANDARDS: Specification #EAD21000A applies.

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Type Load Leveling
WLL 67,200 LBS
Top Rigging Included No
Spreader Length 40 ft

Lift and Spot Spreader

Actuating the Twistlocks.

Lift and Spot Spreader

Adjusting the position of the padeye.

Lift and Spot Spreader

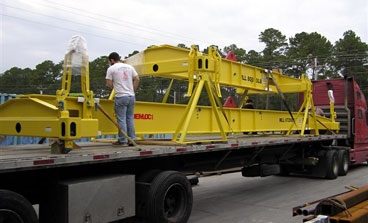

Stacking Pedestals used for shipping more than one AA45000B-2PA on a flatbed.

Lift and Spot Spreader

A 20' and 40' AA45000A-2PA shipped together using the stacking pedestals.
