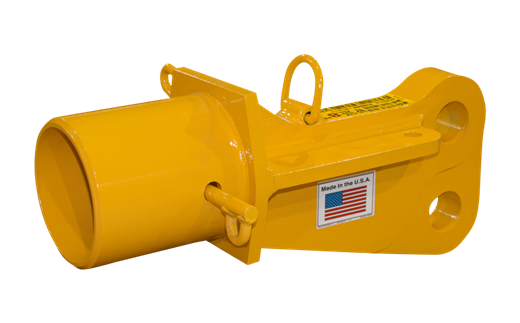

End caps are modular lifting components used with structural pipe to create custom-length spreader beams. They are commonly used in heavy lifting applications where fixed-span beams are costly, difficult to ship, or impractical to store. Tandemloc end caps are designed to solve these challenges while maintaining high safety standards.
Tandemloc end caps check all the boxes and move beyond the constraints of conventional spreader beams. They lower both costs and storage necessities with the ability to source your own pipe locally, their pin-insert design simplifies assembly and handling, and thorough proof testing combined with durable construction position them as some of the most reliable products on the market.
Here are five reasons why they’re worth considering for your next job:
- Versatility & Customizability
Tandemloc end caps are unparalleled in their versatility for creating spreader beams. Users can source their own standard structural steel pipe locally, cut it to their exact length, and pair it with end caps; there is no need to buy pre-assembled beams or pay costly shipping for long sections of pipe. Customers can also use our telescopic pipe kits or pipe sleeves to accommodate various span needs or adapt to different lifting applications. The ability to configure spreader beams precisely for specific lifts, rather than relying on fixed-span beams, makes for a highly customizable solution.
- Quality
Quality is a guarantee for any Tandemloc product. Each end cap is serial numbered and proof-tested to 125% of its rated capacity (in line with ASME B30.20 standards), and critical welds are inspected with non-destructive mag particle testing. Our end caps receive a corrosion-resistant marine-grade epoxy paint to withstand harsh environments, even long-term saltwater exposure. We want our customers to have complete confidence in the safety and reliability of Tandemloc end caps, and our verifiable quality process is there to ensure it.
- Ease of Use
Tandemloc end caps can be shipped on regular freight pallets rather than the pricey flatbeds required for full-length pipes, saving customers thousands on shipping and storage. Since the pipe used is standard schedule 80 structural steel, which is readily available locally, the overall setup is much more cost-effective. Smaller end caps are light enough to handle by hand, and larger ones come equipped with welded D-rings and forklift gussets help ease the moving and assembly process. For a variety of uses, Tandemloc end caps are affordable, practical, and highly adaptable.
- Quick Assembly & Handling
Compared to some competitor designs that use bolt-together flanges and special hardware, Tandemloc end caps use a pin-insert system that dramatically speeds up assembly. Users insert the end caps into pre-drilled pipe ends, secure them with pins, and the beam is ready to lift without bolting, torqueing, or risking the loss of parts. As mentioned under ease of use, larger end caps have forklift gussets and D-rings for a much safer and faster assembly process.
- Cost-Effectiveness
End caps can be relied on for cost savings at multiple points. Sourcing pipe locally is significantly cheaper than ordering finished beams or long pipe sections from manufacturers. You’ll avoid expensive shipping fees and can repurpose or reconfigure pipes for future applications. And because one set of end caps can support many different beam spans and capacities (depending on the pipe used), customers don’t need to invest in and store multiple fixed-span beams, freeing up storage space and capital.
Why Tandemloc?
We are confident that our end caps will make your work much safer, faster, and more cost-effective. The ability to customize with locally sourced pipe cuts costs and frees up storage. Their simple design means faster assembly and easier handling. When you choose Tandemloc, you’re choosing to invest in products that pay for themselves and support safe and dependable operations, consistently.
Frequently Asked Questions About End Caps
Q: Are end caps reusable with different pipe lengths?
A: Yes. One of the main advantages of end caps is that you’re not locked into a single beam length. The same set can be used with different sections of pipe, so you can adjust span as needed without buying additional equipment.
Q: Do end caps affect lift capacity?
A: End caps themselves are rated components, but the overall lift capacity depends on the combination of the end caps and the structural pipe used. The pipe’s size, length, wall thickness, and material all play a role in determining the final capacity, so it’s important to ensure the full assembly is properly engineered and within rated limits.
Q: What standards do spreader beam end caps meet?
A: Tandemloc end caps are proof-tested to 125% of their rated capacity in accordance with ASME B30.20 standards. In addition, welds are inspected using non-destructive testing methods.
Q: Can end caps be custom-sized?
A: Not in the traditional sense. Tandemloc end caps are manufactured to fit specific standard pipe sizes. However, the overall spreader beam can be customized by cutting the pipe to the exact length required, so you can build a beam to your specifications without custom-fabricated end caps.
