S36000B-1PA

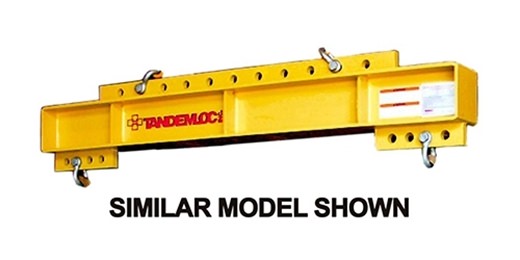

Lift Beam with Multi-Pick Pad Eyes

A basic lifter with a selection of lift points

This lift beam feature a selection of lift points and crane pick points to lift a variety of cargo within the 40 ton capacity. Use with a top sling for a more stable lift.

  • PROOF TESTED to 125% (100,000 LB) and certified.
  • CALCULATED WEIGHT: 6,300 LB
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies. Meets ANSI B30.20.
  • Designed and Manufactured to Meet or Exceed ASME B30.20 and BTH-1, Design Category B, Service Class 0
  • CUSTOM OPTIONS: Lifter can be customized for your application, inquire for other load capacities or sizes.
Product Notes
  • Can be used with top sling for added stability.
  • 6" vinyl decals as shown on both sides.
  • Part is symmetrical about the centerline.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Type Lift Beams with Multi-Pick Pad Eyes
WLL 80,000 LBS
Btm Spd Min 24 ft
Btm Spd Max 24 ft
