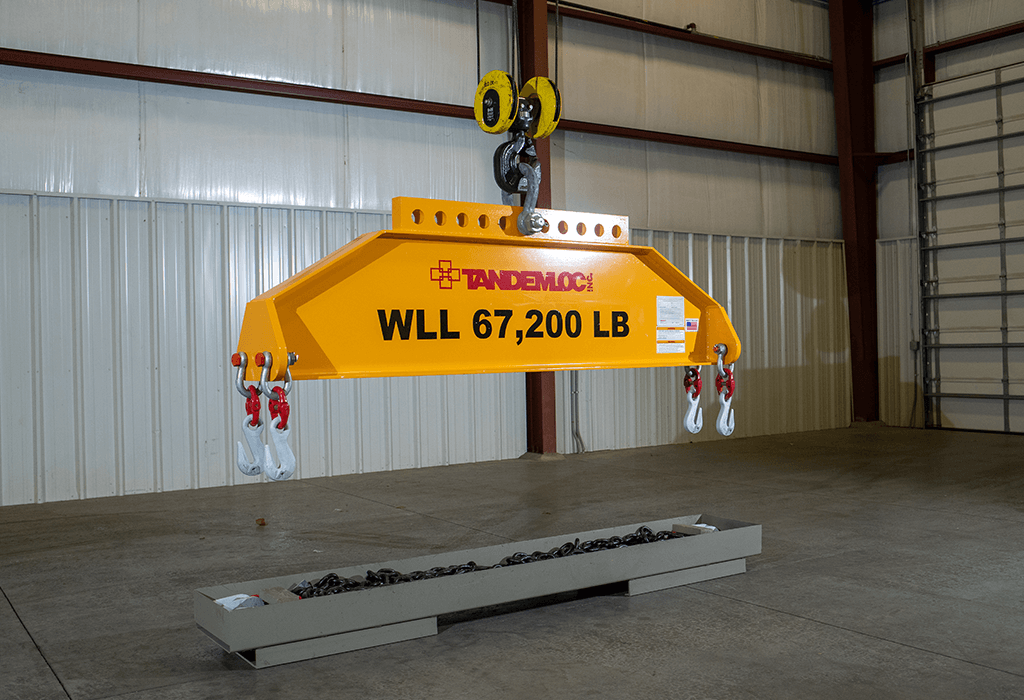

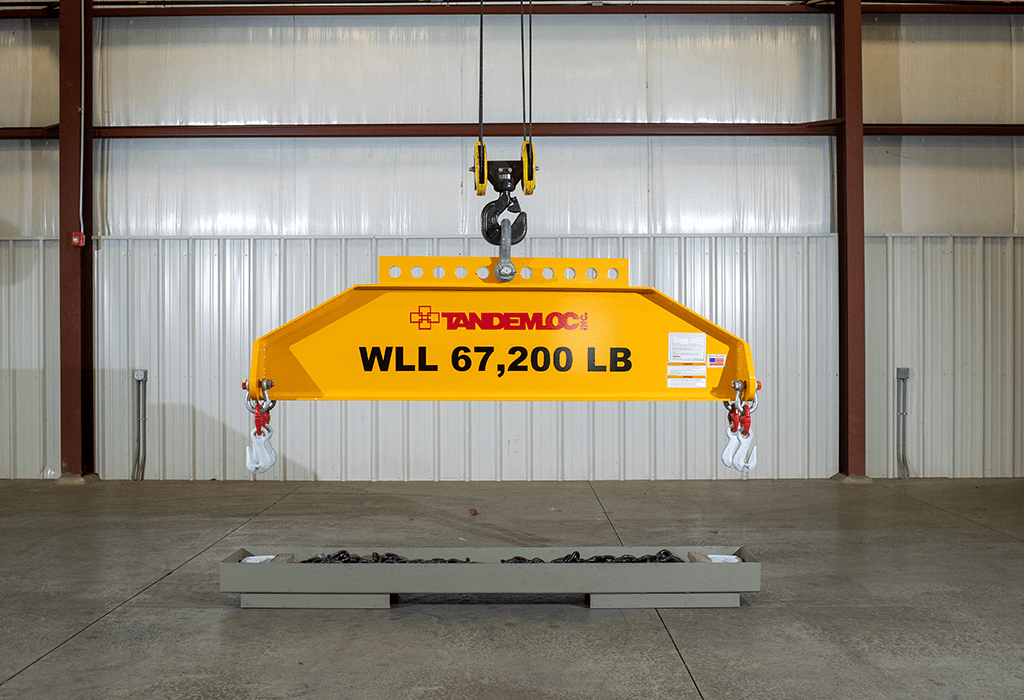

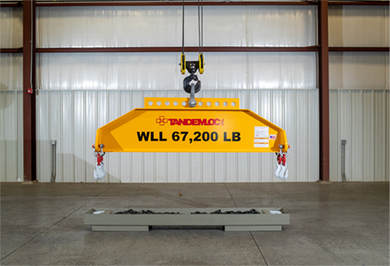

Q2500AA-400C Load Leveling Bottom Lift Sling for 40' ISO Containers

40 Ft. Container, Low Profile Bottom Lift Sling

These economical sling assemblies allow the user to lift from the bottom corner fittings and adjust for off-center loads in both longitudinal and transverse directions. They are compact and easy to store and ship.

  • PROOF TESTED: Beam - Proof tested to 125% of work load limit. Chain and fittings - Tested to 200% of their rated WLL.
  • WEIGHT: 1,534 LB., 1,720 LB. with PC 9
  • STANDARDS: Specification #EAD21000A applies.
  • MATERIAL AND FINISH: Steel with safety yellow paint. Chain & connector link pins/spacers are not painted.
Product Notes

INSTRUCTIONS: For load leveling, adjust length of chain legs to shorten heavy end and lengthen legs on light end. Always leave slack in chain length that ends up between the two PC4 hooks to allow the two hooks to swing to their natural use angle. Adjust side to side leveling by moving PC7 toward heavy side.

  • The containers noted in this dwg. are typical ISO freight containers as described in iso 668:1988(e) designation.
  • 1AAA, 1AA, 1A, 1AX - All "40 Ft." containers
  • 1CC, 1C, 1CX - all "20 Ft." containers (19'-10' ½")
  • This sling can also lift 1BB, 1B, 1BX "30 Ft." containers (29'-11 1/4") & 1D & 1DX "10 Ft." containers (9'-9 3/4") at their max load rating.
    • Load leveling of this sling is accomplished by manually moving the top shackle; ie, by placing its bolt into one of the 13 holes provided for transverse leveling and by adjusting the chain leg lengths to level longitudinally. Keep the chain lengths matched on each side. Chain is color marked at center and every 10 links four places on each side of center.
    • This sling assembly conforms to ANSI B30.9-1996, ANSI B30.19-199, B30.20 & I.S.O. 3874 Fgt. Cont. Handling.
    • All dimensions subject to manufacturing tolerances.

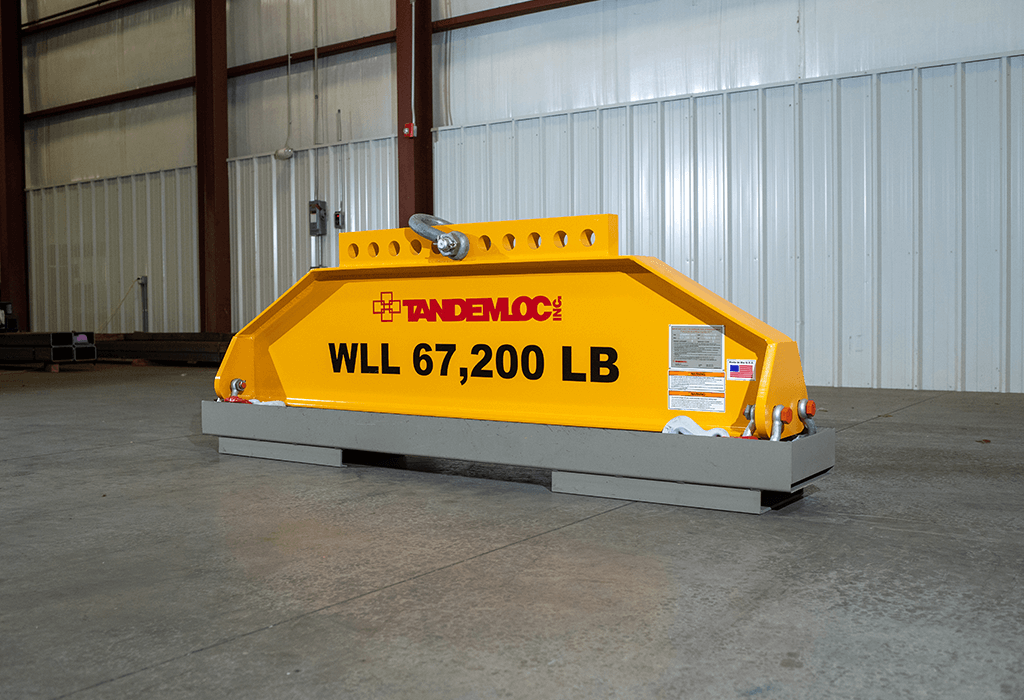

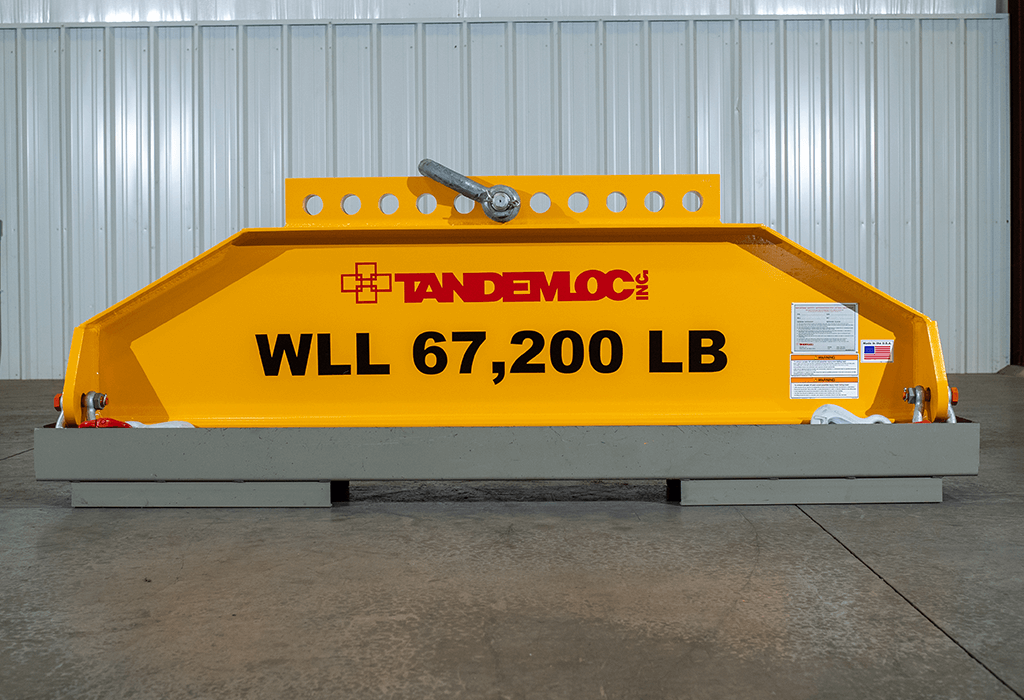

    • PC 9 is the metal shipping container provided with each sling assembly.

Please Register For Price Quote

RFID

Enhance Operations Track and Authenticate RFID
CLICK FOR MORE INFO

Already a member Login Here

WLL 67,200 LBS

PC. NO.QUANTITYPART NO. AND DESCRIPTION
2 1 Large Shackle, w/ Bolt, Nut, Cotter, Galv.
3 1 Q2505AA-2PA Liftbeam Assembly, Painted
4 2 GR80 STL Chain, Cut 600"±4" LG & MKD
5 4 Chain Shortener, Galv.
6 8 Alloy chain connector, painted
7 4 Small Shackle w/ Bolt, Nut, Cotter, Galv.
8 4 416000B-LTZ Rotary Lift Lug, Therm. Zn. Coated
9 1 Q2500AA-B1 Metal Shipping Container
