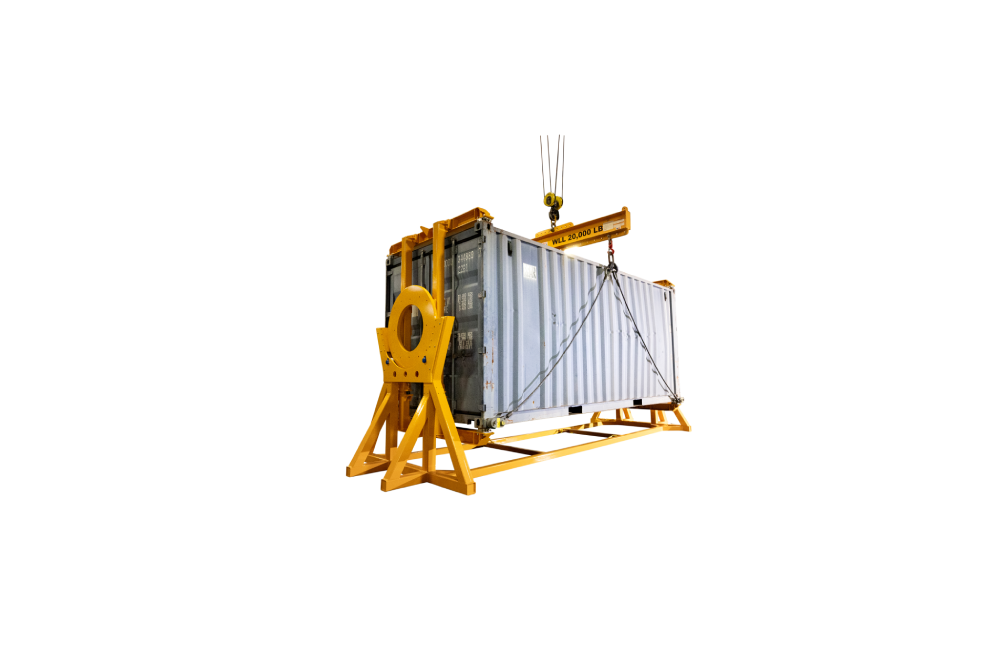

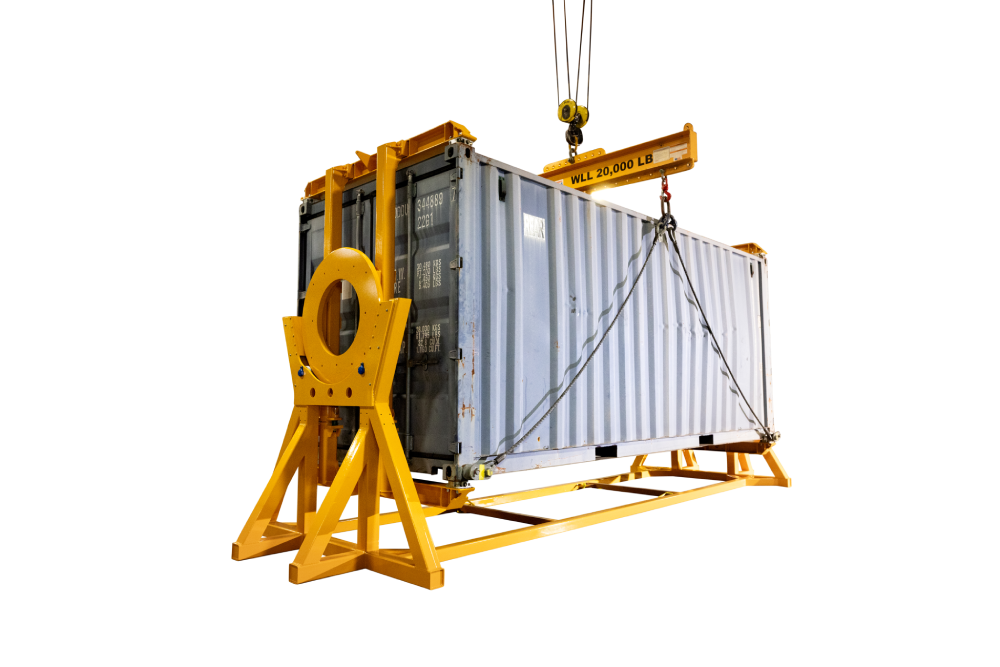

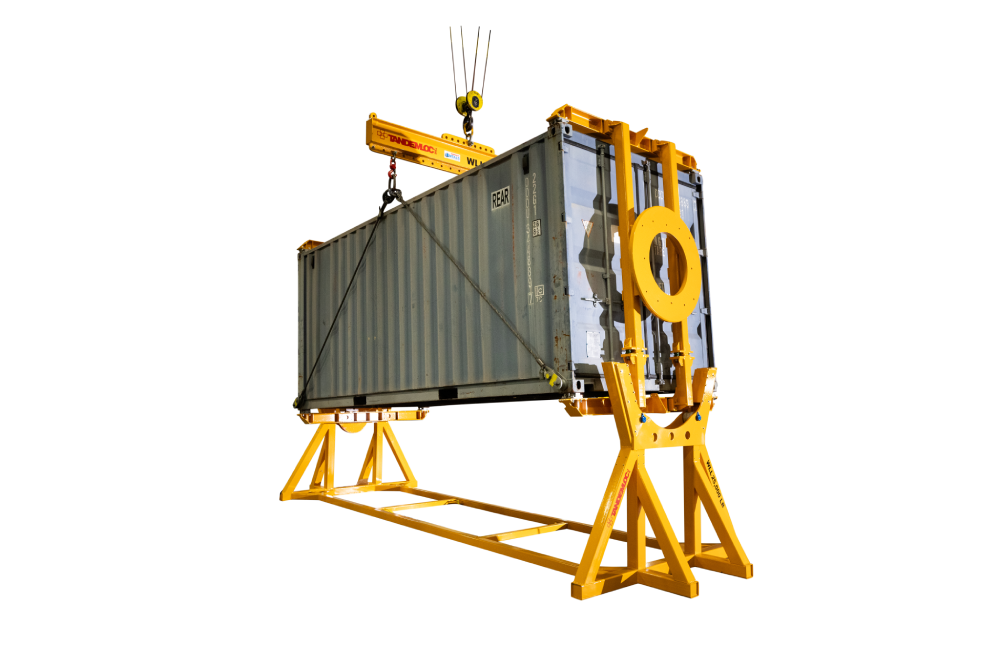

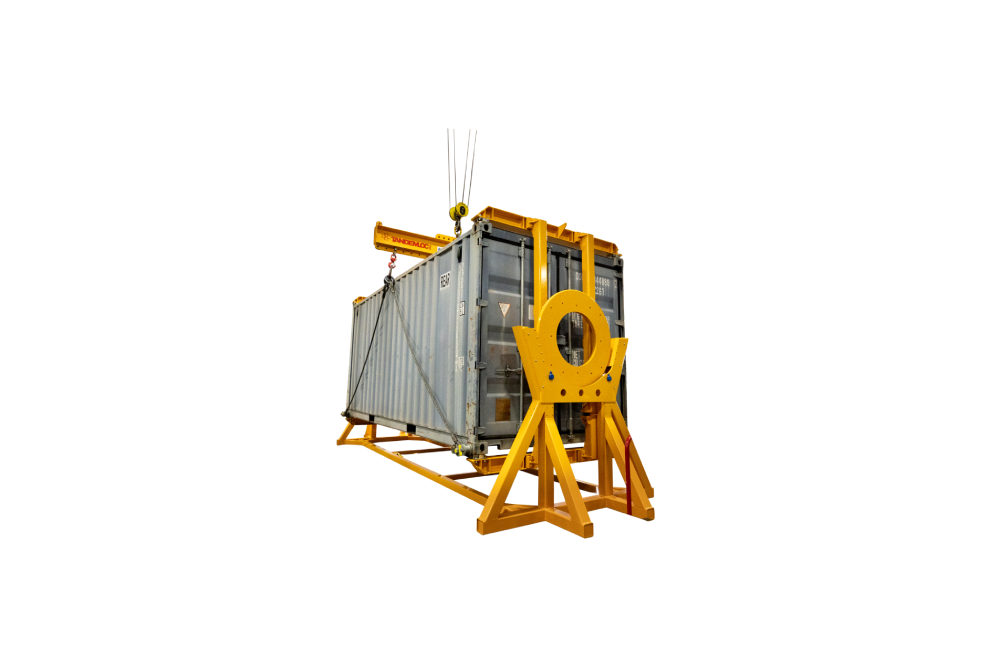

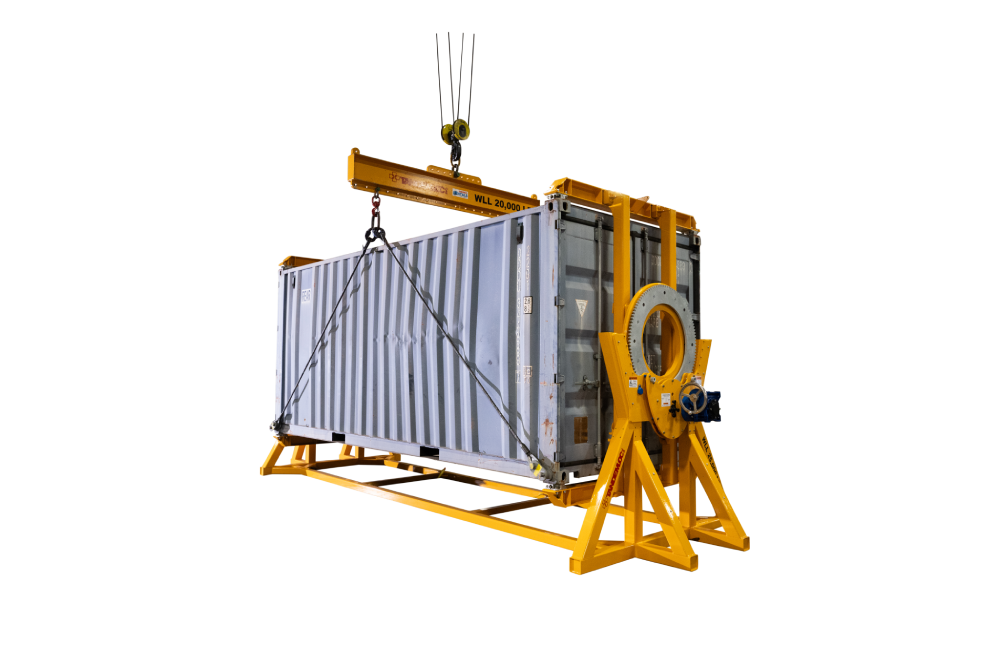

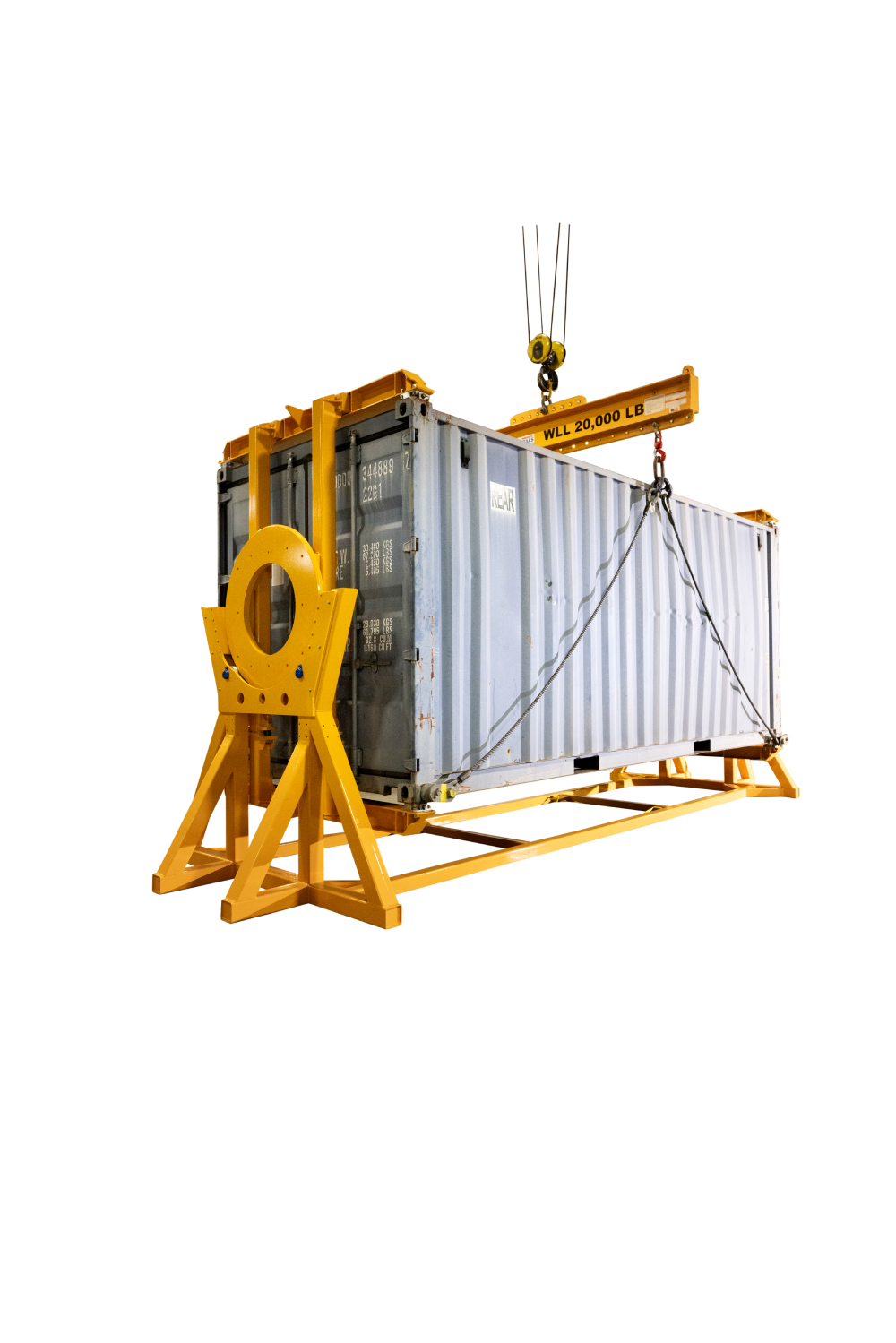

The BA21A00-00A-PA (patent pending) is a Tandemloc designed trunnion built for standard 20-foot ISO containers and 20-foot mobile facilities, offering full 360° rotation for safe and comprehensive inspections. Designed for containers up to 25,000 pounds, the Trunnion ensures precise, easy rotation. It rigidly attaches to ISO Corner Fittings and accommodates standard manufacturing tolerances.
Features:
- Rotate a container about its long axis (like a “container rotisserie”)
- Supports up to 25,000 lb containers
- Locks every 45 degrees for safe access to all sides of the container
- Accommodates CG offsets: up to 4” vertical/transverse, and 36” longitudinal
- Includes container adapters to form a rigid connection

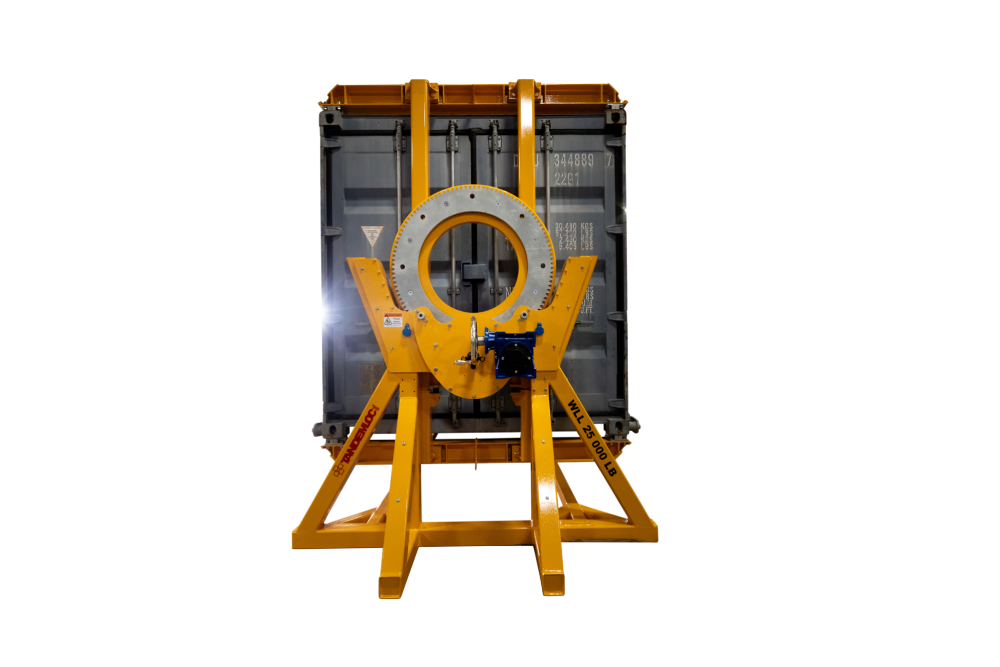

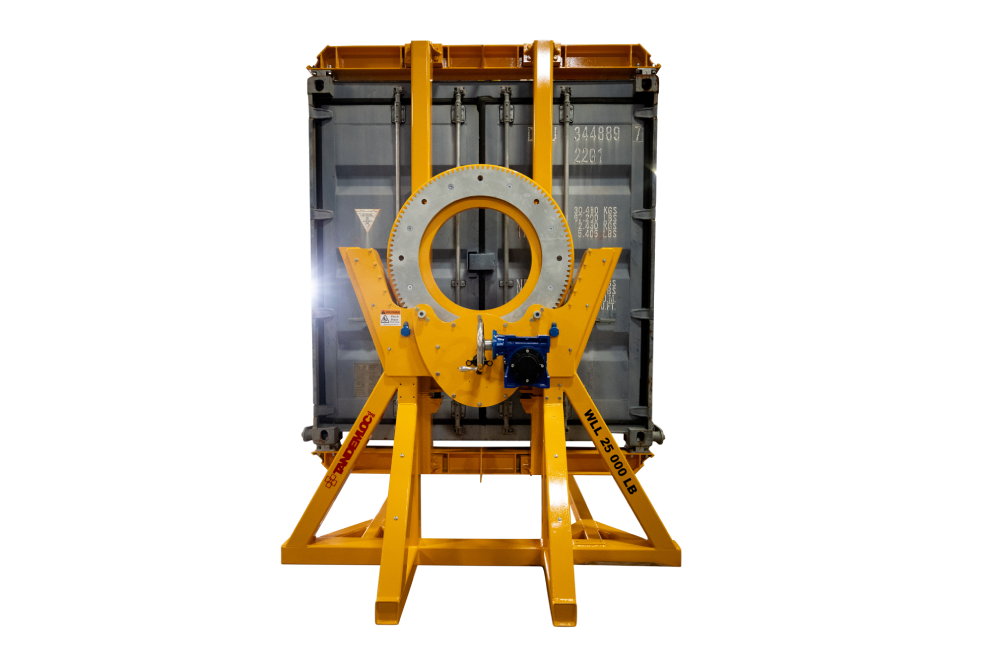

- Operate manually via a hand wheel or with optional motor, battery and remote control
- Additional container adapters can be purchased to pre-stage additional containers to accommodate other container sizes
Notes:
- Part No.: BA21A00-00A-PA ISO Container Inspection Trunnion
- WLL: 25,000 LB.
- FINISH: SANDBLAST, PRIME, AND PAINT SAFETY YELLOW
- CALCULATED WEIGHT: 7,725 LB. (Not including container)
- Compatible with “MF” Mobile Facility Containers PATENT PENDING
