AZ11A00-00A-PA H-Frame Lifting Beam

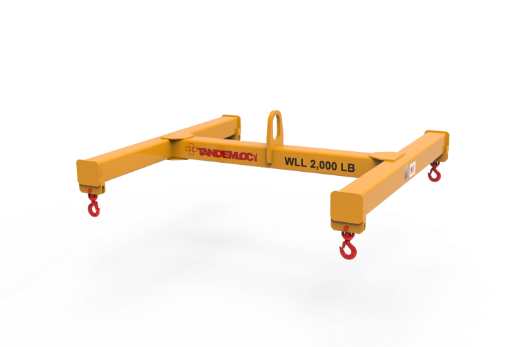

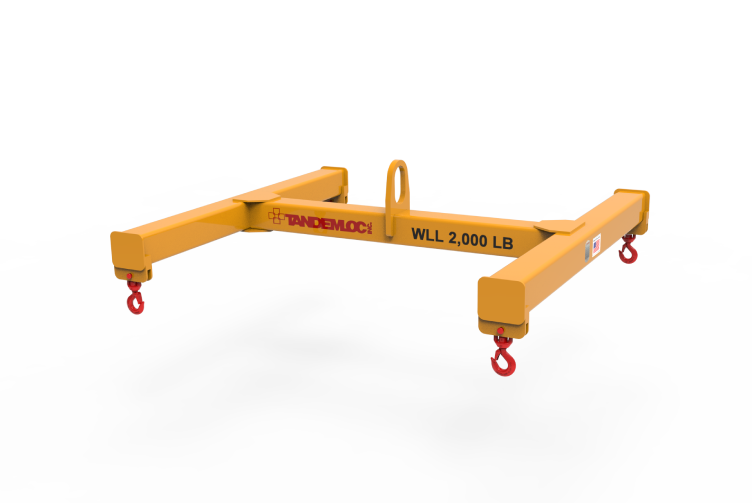

This 48" x 48" H-frame lifting beam comes equipped with four 1.25-ton swivel hooks, offering secure connection points for a variety of lifting applications. It has a Working Load Limit (WLL) of 2,000 lbs. and is proof tested to 125% of its WLL.

• Part No: AZ11A00-00A-PA
• WLL: 2,000 lbs.
• PROOF TESTED to 125% (2,500 lbs.) and certified.
• CALCULATED WEIGHT: 178 LB (Frame Only), 7 LB (Sling Ea.)
• FINISH: Sandblast, Prime and Paint Safety Yellow
• STANDARDS: Specification #EAD21000A applies.
