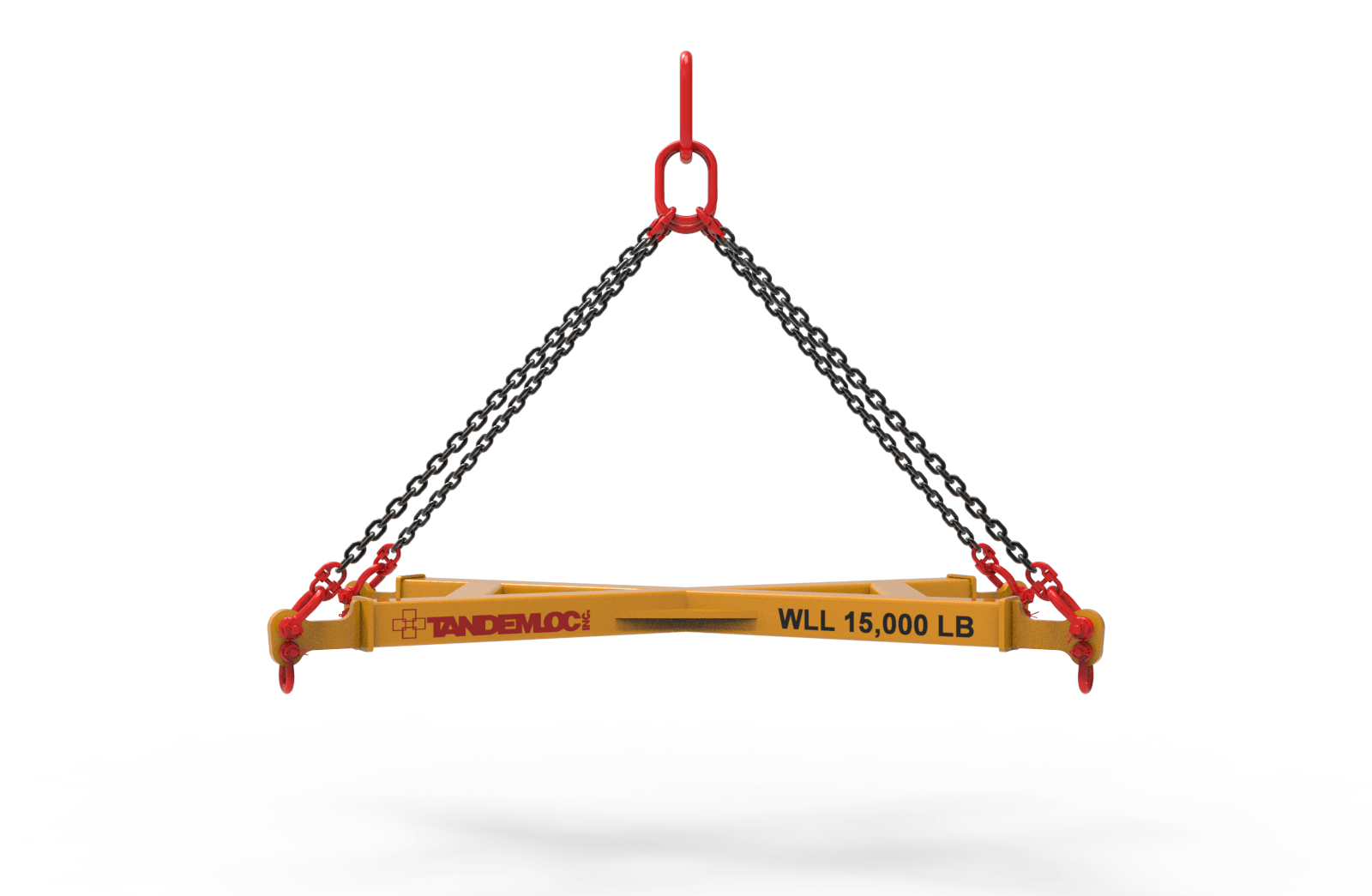

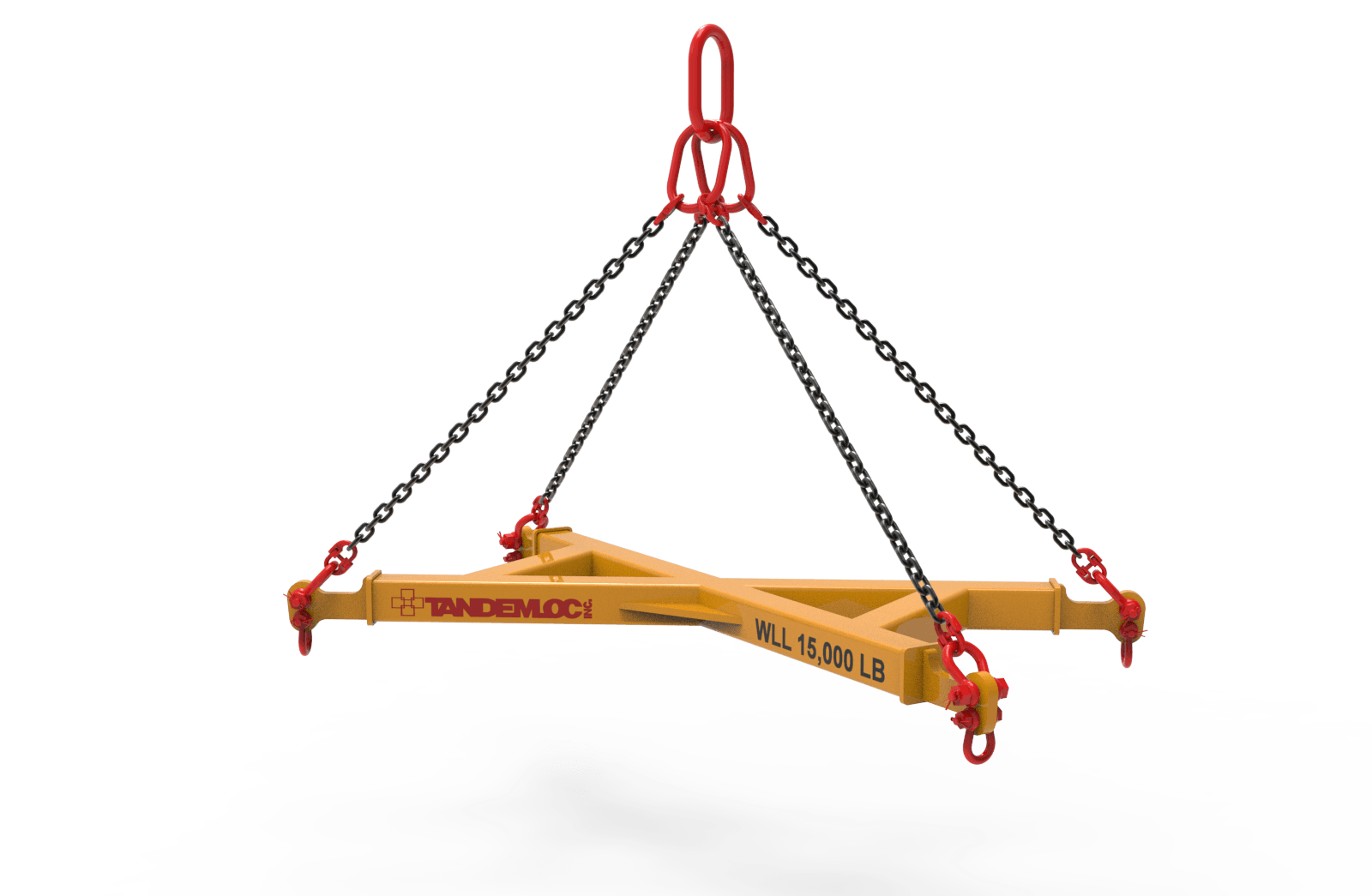

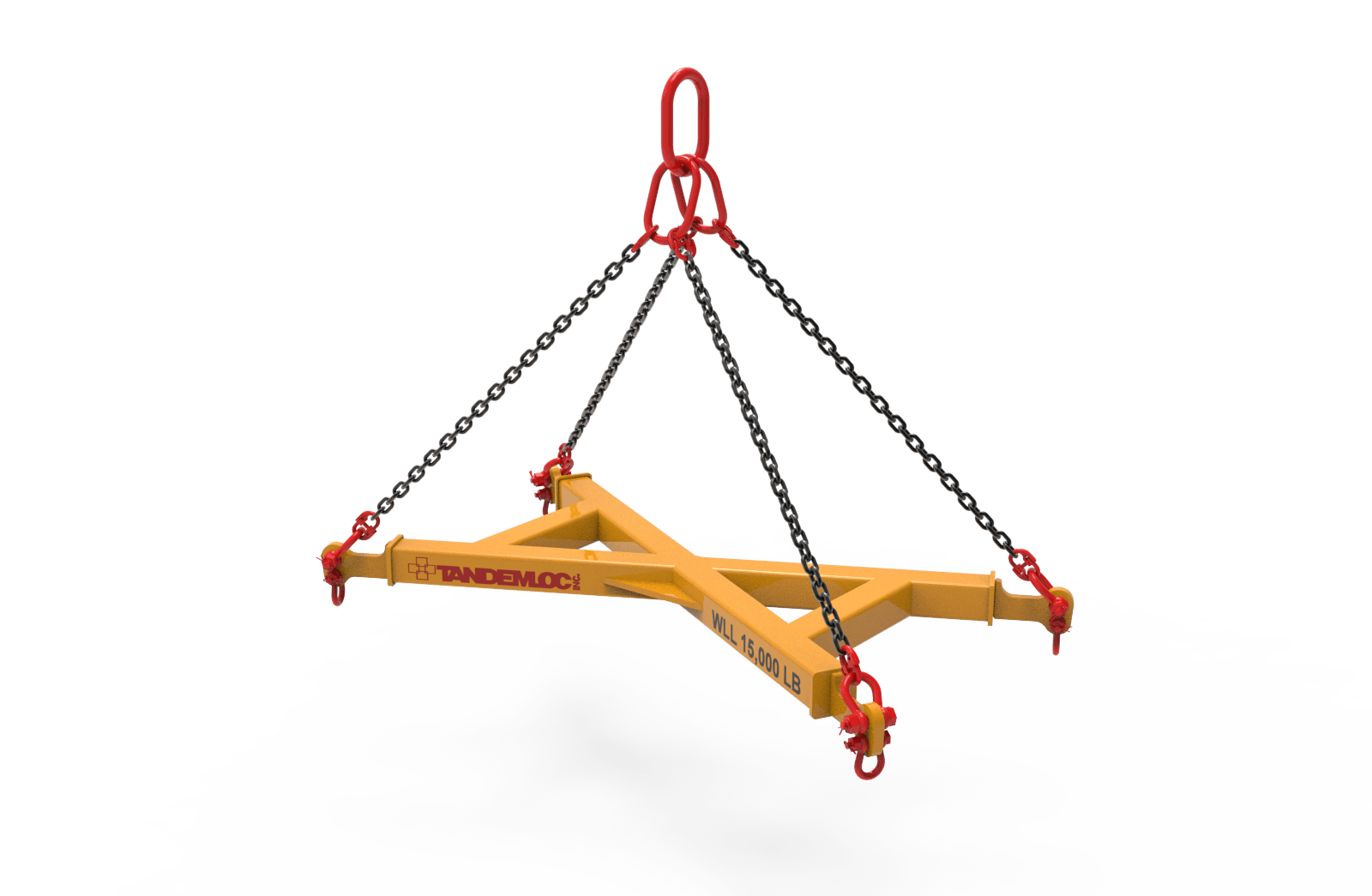

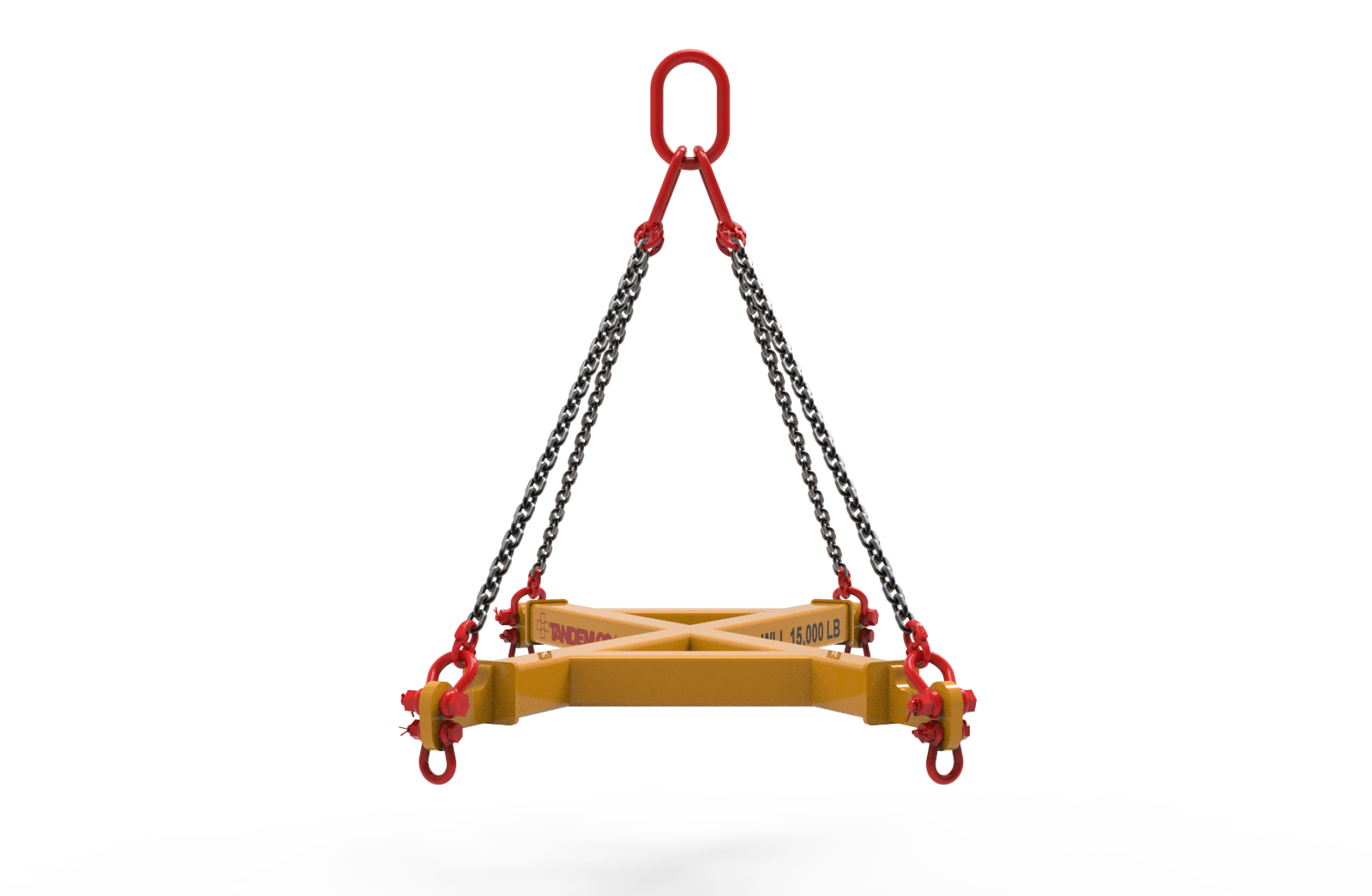

Tandemloc’s “X” 4-Point Spreader Beam offers a lightweight alternative to traditional “H” frame designs for applications requiring a top sling connection. It ensures an even load distribution across four lift points, enhancing stability during heavy duty lifts. Its efficient geometry, lightweight, and streamlined fabrication process makes it a cost-effective solution for projects with tight deadlines.
Features:
-Lifts up to 68,000 lbs.
-Lightweight and economically priced
-Uses components from our Rapid Ready line, making lead time shorter
-Great alternative to “H” frame designs if requiring a top sling
- PROOF TESTED: Each unit is proof tested to 125% of its rated capacity (85,000 LB) and certified.
- CALCULATED WEIGHT: 633 LB.
- SPREAD DIMENSIONS: 60” x 168”
- WORKING LOAD LIMIT (WLL): 68,000 LB.
- FINISH: Sandblasted, primed, and painted safety yellow.
- STANDARDS: Specification #EAD21000A applies. Designed and manufactured to meet or exceed ASME B30.20 and BTH-1 standards, Design Category B, Service Class 0.
- CUSTOMIZABLE: Spreader can be customized for your application, inquire for other load capacities or sizes.
