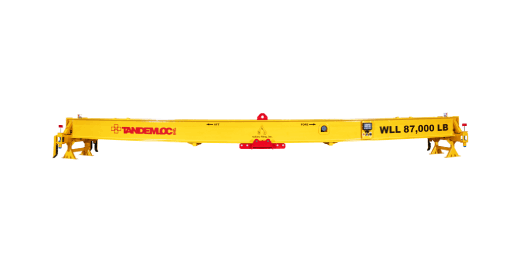

AX17B00-00A-PA ISO Load Leveling Electroloc 40’ Frame and Optional Stand

Electronic Operation Load Leveling 40' Container Lift Spreader, Low Profile

The AX17B00-00A-PA Load Leveling ISO Container Spreader Frame is designed to allow for efficient handling of 40’ ISO containers while reducing the need for manual operator interaction. This below-the-hook lifting device provides the operator with the ability to efficiently handle containers with a center-of-gravity (CG) that is offset from the center of the container. Some key features of the AX17B00-00A-PA include:

  • Onboard Battery Bank - Maintenance Free, AGM Type battery bank with four Group 31M, 105 Amp Hour Batteries.
  • Onboard Charging System - Automatic, Intelligent, 4 bank AGM charger with up to 10 Amp per battery charge rate.
  • Battery Monitoring System - Automatic protection against excessive battery discharge.
  • LED Signal Lights - High visibility, long life, simple 2-color setup for clear indication of lifter status and operating modes.
  • Wireless Remote Control - Industrial grade, extended-range remote control with adjustable auto-shutoff, emergency stop control, and industry-leading reliability and performance characteristics.
  • Motorized Locking/Unlocking - Rugged, proven reliability, and efficient performance. Simply press a button on the remote and the onboard control system handles the rest. Twist-lock position sensors ensure a complete cycle and container position sensors ensure that locking and unlocking can only occur when the lifter is resting on a container.
  • Motorized Load Leveling - Soft starting/stopping PWM speed control for safe predictable operation, up to 22 Inches-per-Minute travel speed, and Level-Under-Load capability along the entire 96” length of travel.
Notes:
  1. Part No. : AX17B00-00A-PA, 40’ ISO LOAD LEVELING ELECTROLOC LIFT FRAME
  2. WLL: 87,000 LB.
  3. PROOF TESTED TO 125% (108,750 LB.) AND CERTIFIED
  4. STANDARD SPECIFICATION# EAD21000A APPLIES
  5. FINISH: SANDBLAST, PRIME AND PAINT SAFETY YELLOW
  6. CALCULATED WEIGHT: 15,600 LB.
  7. DESIGNED AND MANUFACTURED TO MEET OR EXCEED ASME B30.20 AND BTH-1, DESIGN CATEGORY B, SERVICE CLASS 0.

Please Register For Price Quote

RFID

Enhance Operations Track and Authenticate RFID
CLICK FOR MORE INFO

Already a member Login Here

WLL 87,000 LBS
Spreader Length 40 ft
Type Electronic Load Leveling
Top Rigging Included No
Model NumberDescription
AX17B00-00A-PA ISO Load Leveling Electroloc 40’ Frame, WLL 87,000 LBS.
AX18A00-00A-PA Stand for AX17B00-00A-PA
