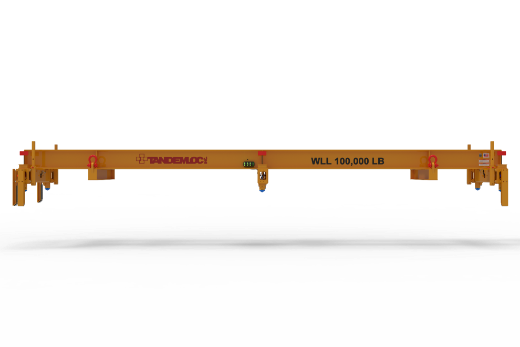

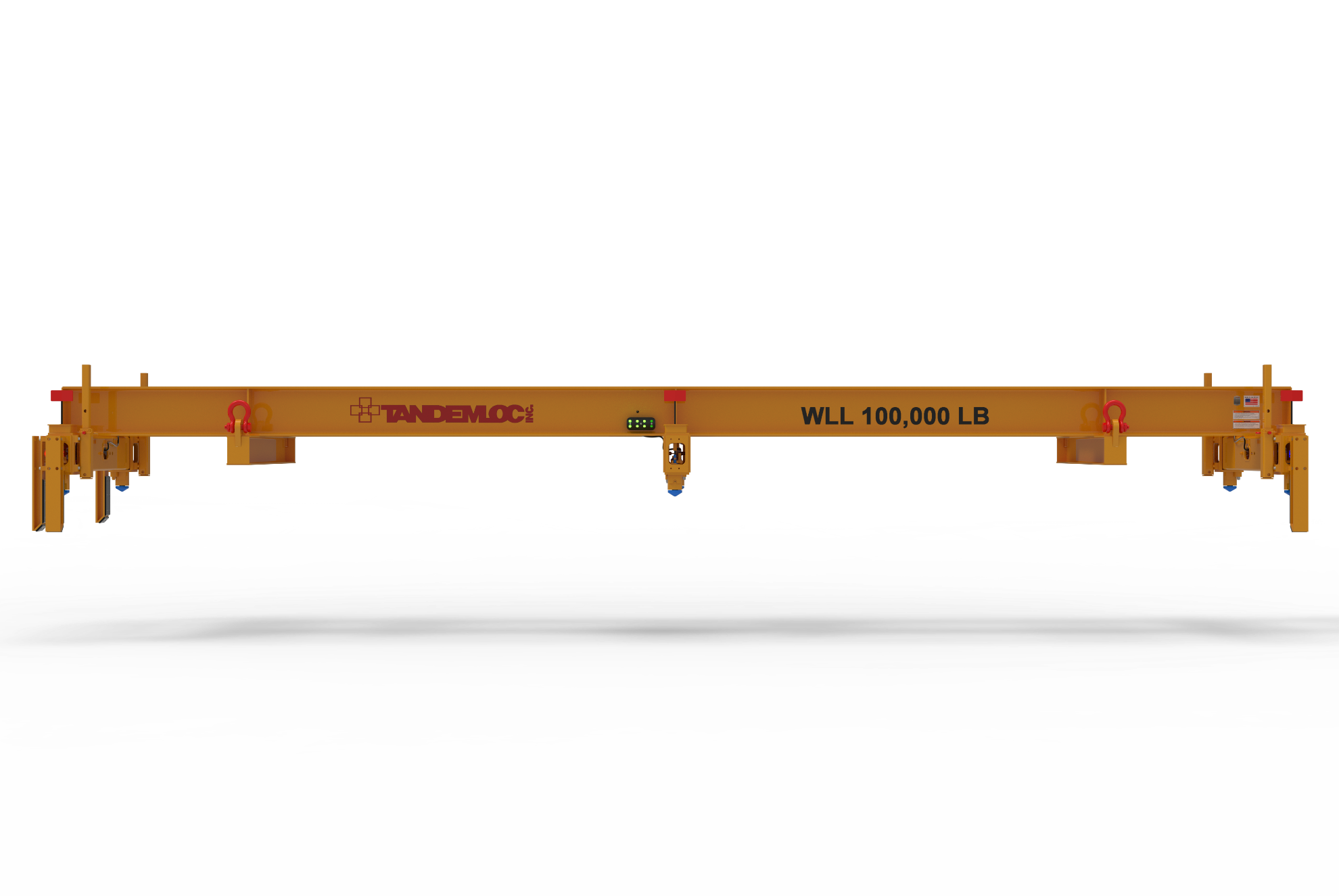

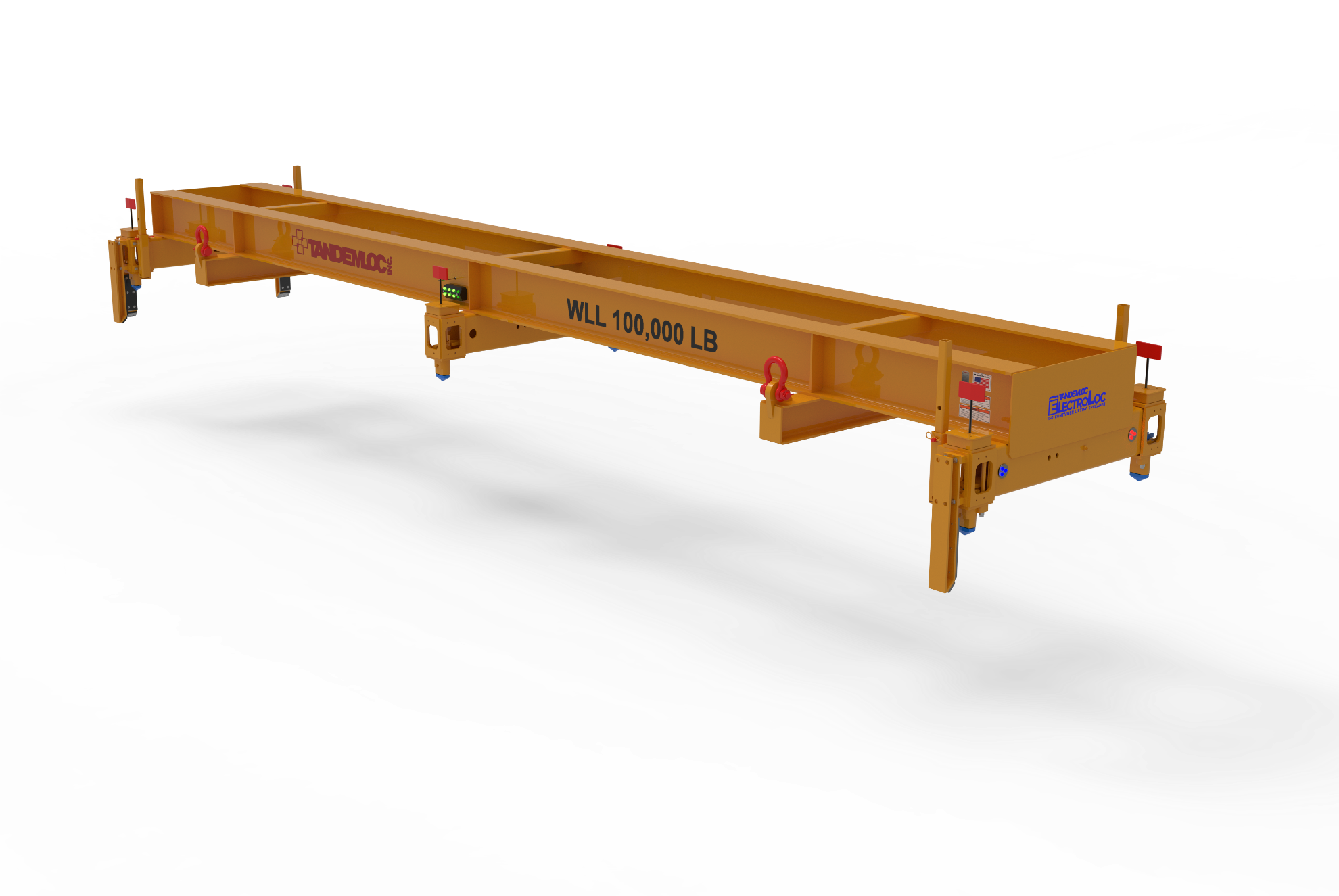

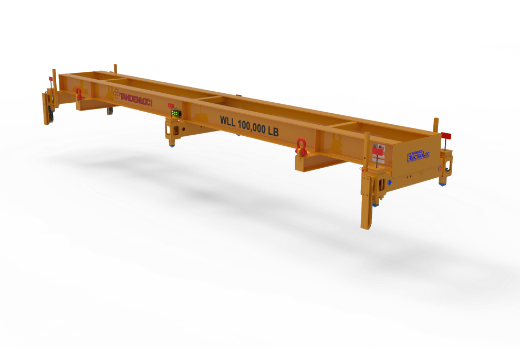

Our AX16D00-00A-PA is a 50 Ton, 6-Point Mega Pack 2XL Beam. With a WLL of 100,000 lbs., this spreader beam is engineered to handle heavy-duty Megapack lifting with precision and reliability. Given the size and value of each Megapack, it is imperative that they are handled with extreme care. The AX16D00-00A-PA ensures safe and accurate lifting to prevent damage or misalignment during transport and installation.
Features:
- Plug and Play Battery System - Interchangeable 20 amp-hour battery pack and included charger allow for a quick “power tool” style battery interface. Durable custom battery case designed for quick and easy installation, removal, and charging. The 20-amp-hour battery will allow for over 10 hrs. of runtime and over 100 container engagements. Additional battery packs may be purchased separately to allow for continuous lifter usage.
- Battery Monitoring System - Rugged and reliable non-contact sensors monitor locking and unlocking cycles to ensure accurate twist lock control and alert the operator if something goes wrong.
- LED Signal Lights - High visibility, long life, simple 2-color setup for clear indication of lifter status and operating modes.
- Wireless Remote Control - Industrial grade, extended-range remote control with adjustable auto-shutoff, emergency stop control, and industry-leading reliability and performance characteristics.

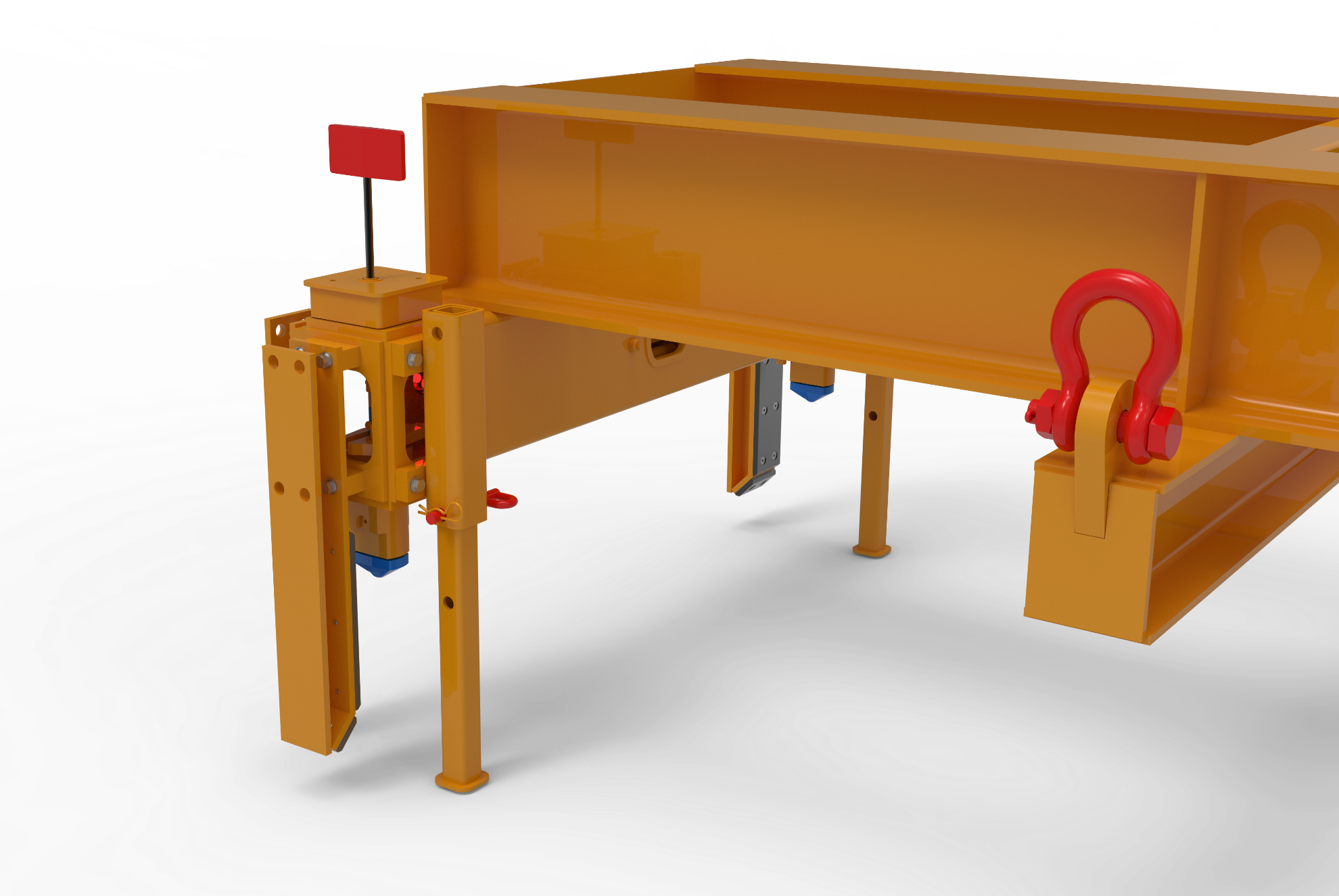

- Motorized Locking/Unlocking - Rugged, proven reliability, and efficient performance. Simply press a button on the remote and the onboard control system handles the rest. Twist-lock position sensors ensure a complete cycle and container position sensors ensure that locking and unlocking can only occur when the lifter is resting on a container.
Notes:
- Part No. : AX16D00-00A-PA, MEGAPACK ELECTROLOC LIFT FRAME
- WLL: 100,000 LB.
- PROOF TESTED TO 125% (125,000 LB.) AND CERTIFIED
- STANDARD SPECIFICATION# EAD21000A APPLIES
- FINISH: SANDBLAST, PRIME AND PAINT SAFETY YELLOW
- CALCULATED WEIGHT: 4,800 LB.
- DESIGNED AND MANUFACTURED TO MEET OR EXCEED ASME B30.20 AND BTH-1, DESIGN CATEGORY B, SERVICE CLASS 0.
