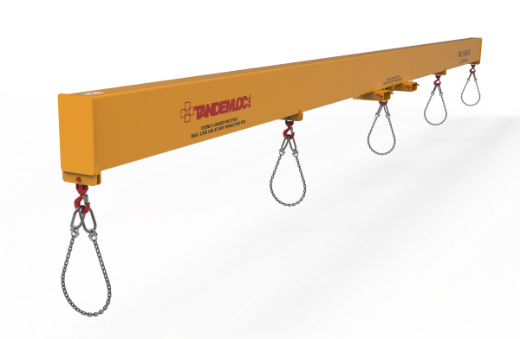

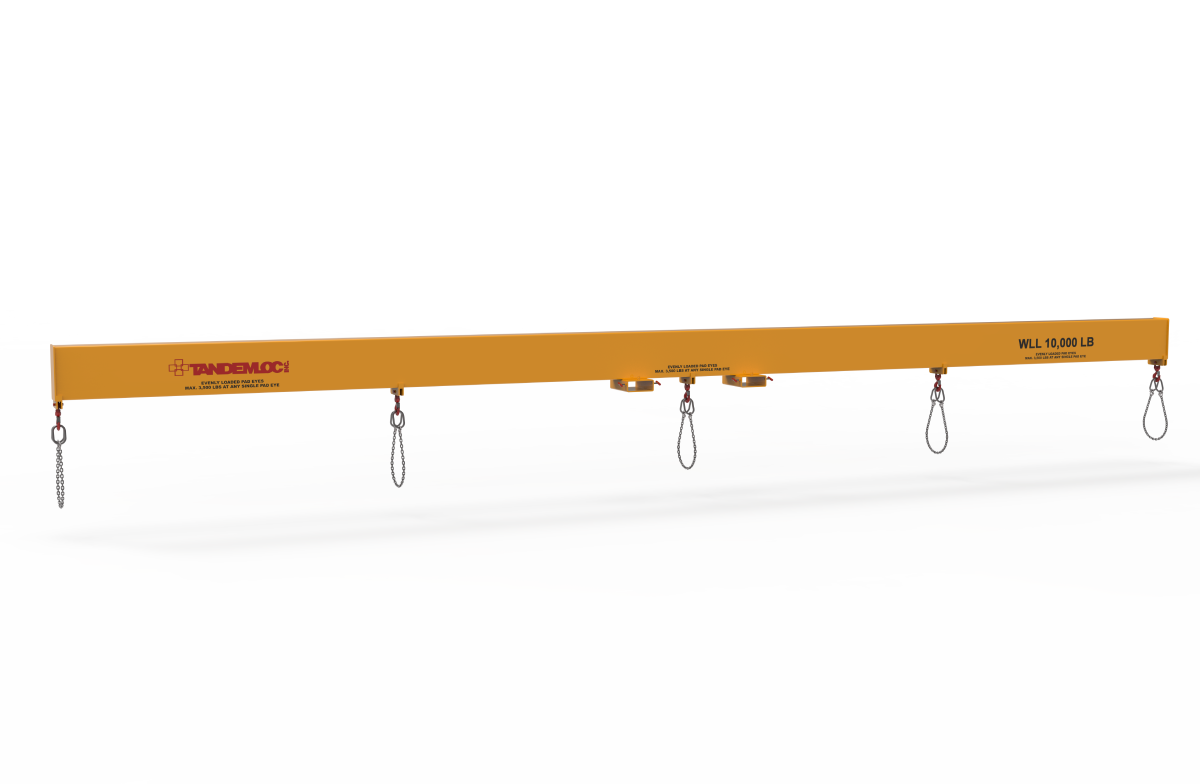

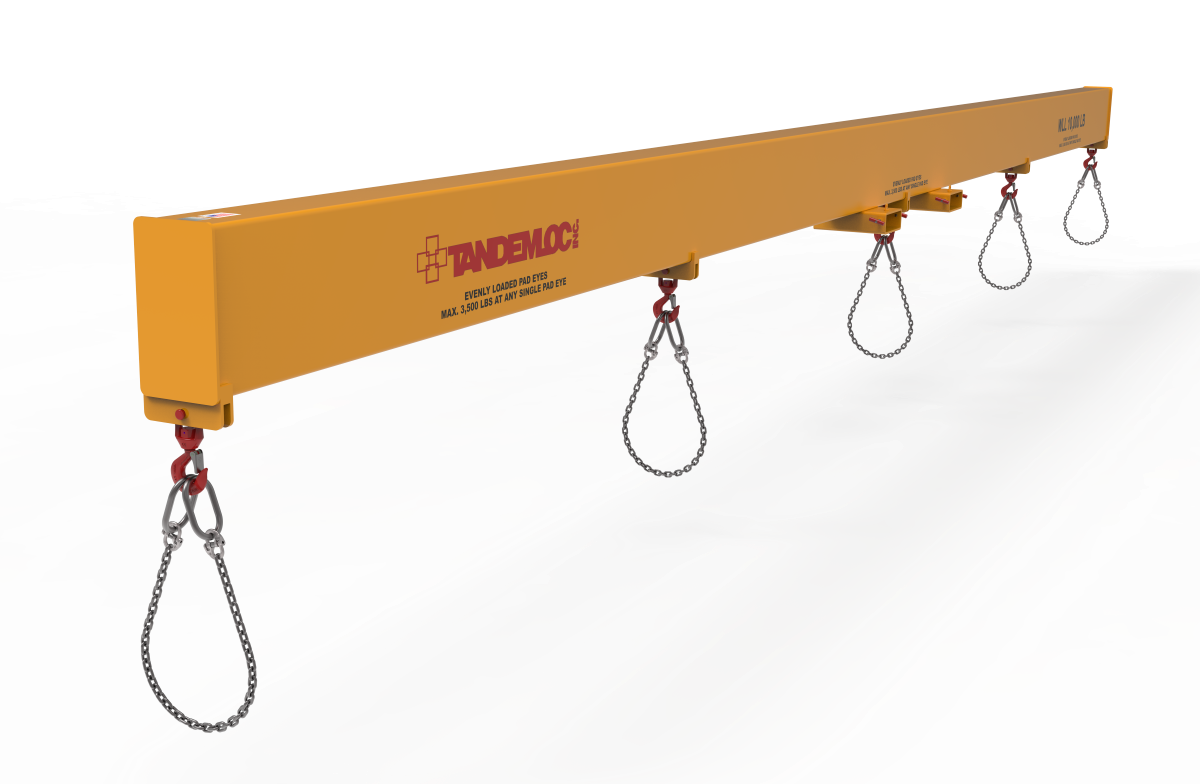

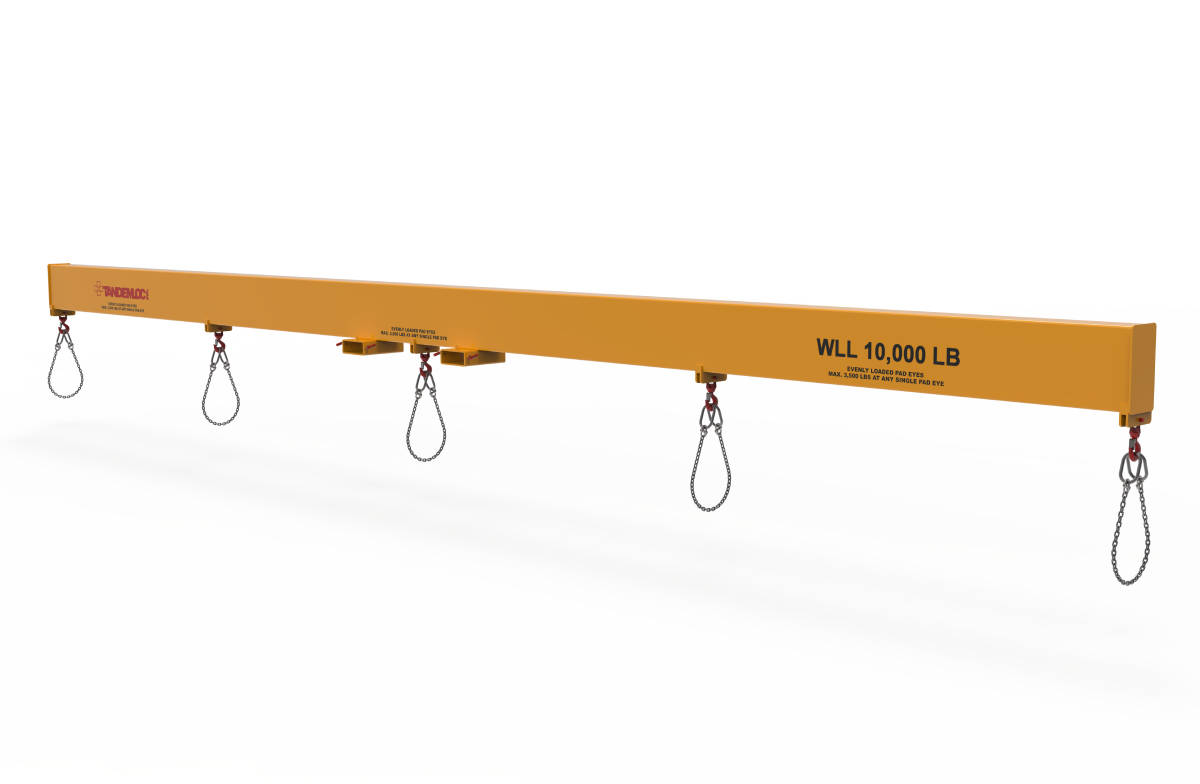

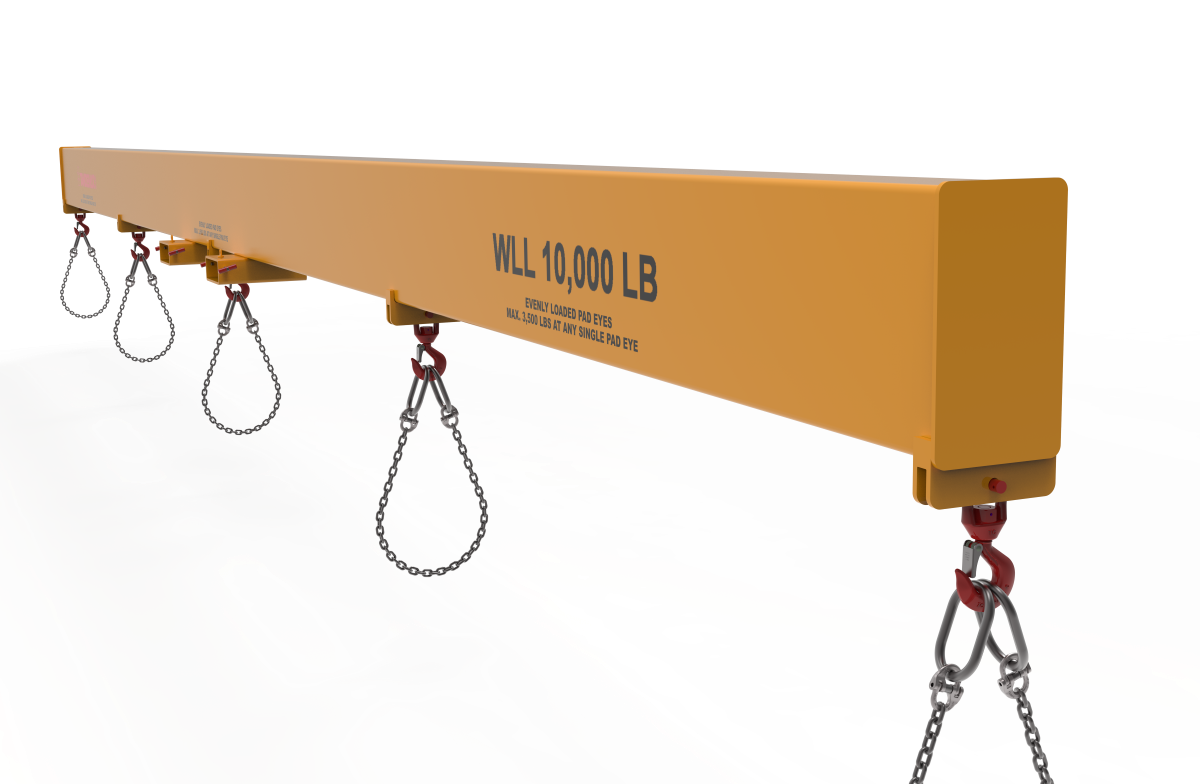

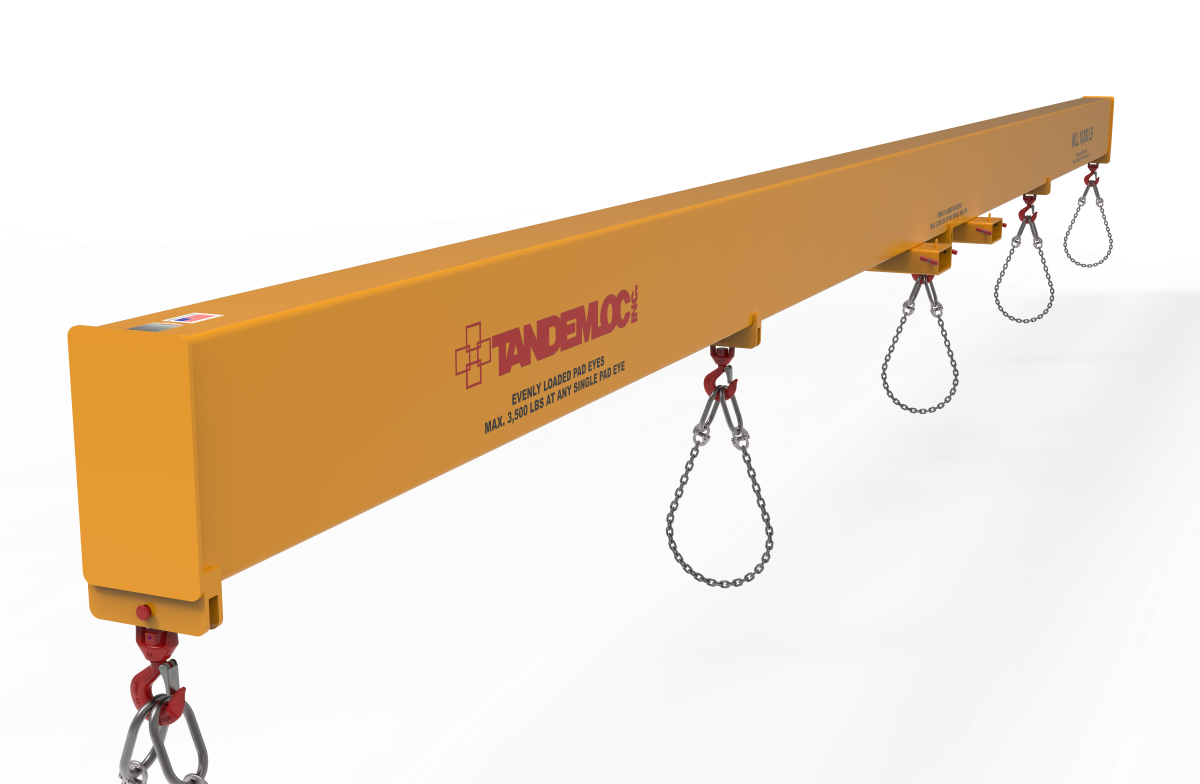

AT37E10-420-PA Rebar Forklift Beam

The AT37E10-420-PA Forklift Beam is designed for safely and efficiently lifting bundles of rebar with a forklift. With a 10,000 lb. WLL and five evenly distributed pick points across a 420" spread, this lifting beam provides reliable support for large rebar bundles. Each pick point has a 3.2-ton swivel hook with safety latch and each has a maximum load capacity of 3,500 lbs. An optional stand (AT37S10-420-PA) is available and sold separately.

• WORKLOAD LIMIT (WLL): 10,000 LB.
• PROOF TESTED: 125% of WLL, w/proof test certificate.
• CALCULATED WEIGHT: 2,260 LB.

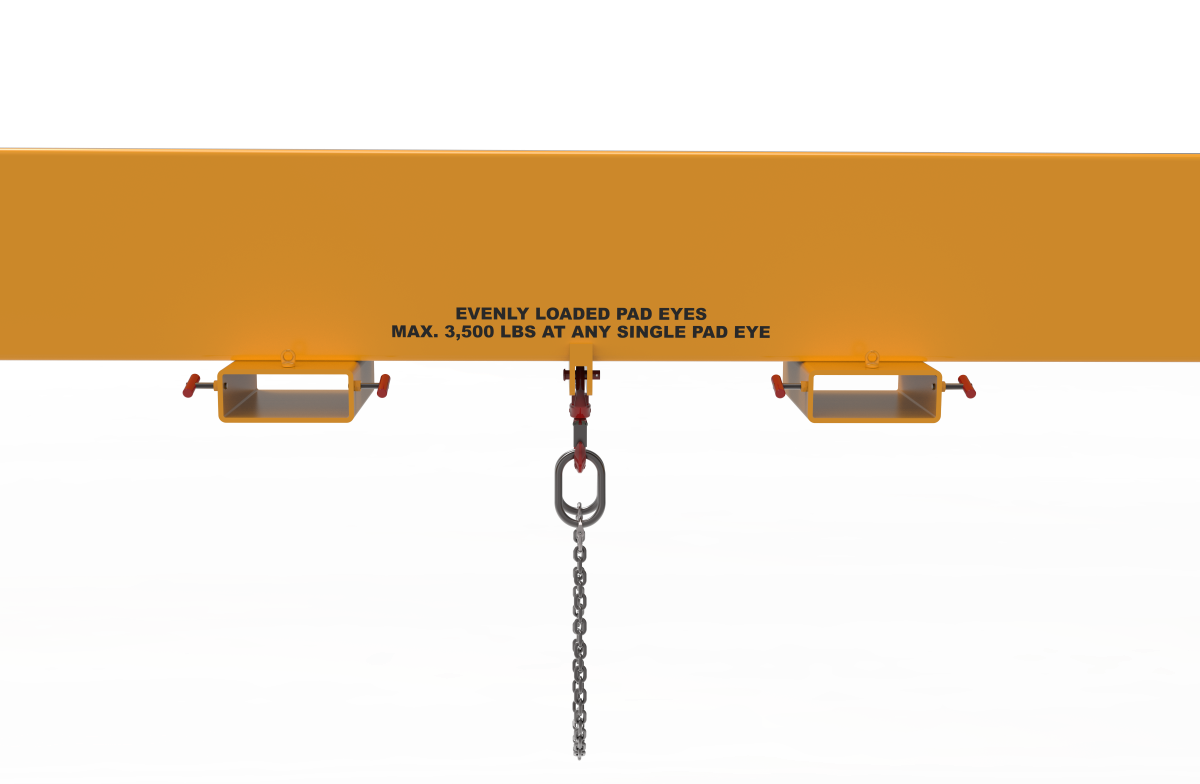

• EVENLY LOADED PAD EYES MAX 3,500 LBS AT ANY SINGLE PAD EYE
• FINISH: Sandblast, prime and paint safety yellow.
• STANDARDS: DESIGNED AND MANUFACTURED TO MEET OR EXCEED ASME B30.20 AND BTH-1, DESIGN CATEGORY B, SERVICE CLASS 1.
