AR12 Series Diametral Pipe Lifting Tongs

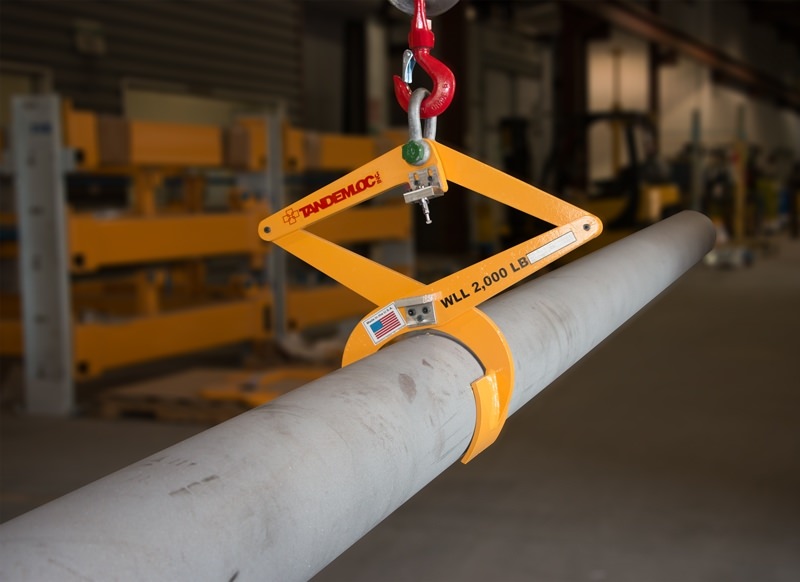

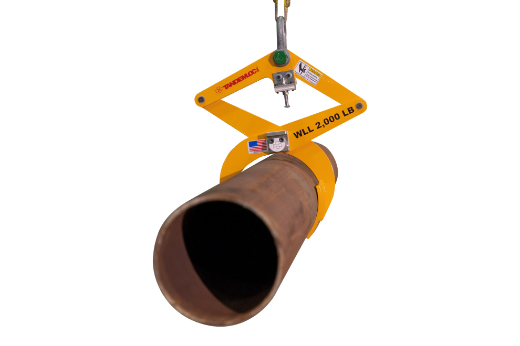

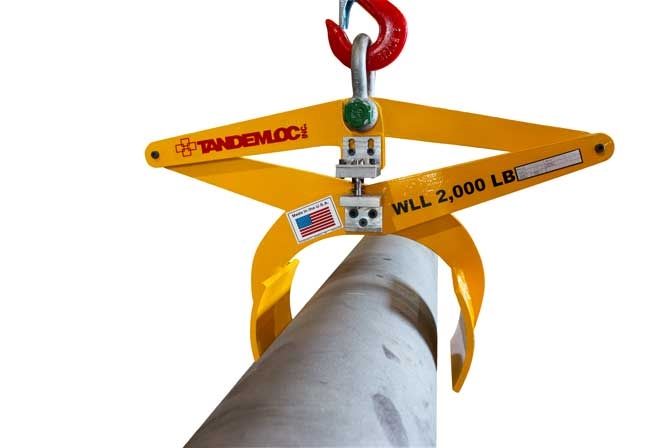

The AR12 Series Diametral Pipe Lifting Clamp is for handling cylindrical objects such as pipes, round bars, and any other cylindrical item falling within the WLL and diameter size that each tong is designed for. Our AR12 Series Tongs include the Tandemloc Autolatch™ for easy object engagement. The Tandemloc Autolatch™ allows the tong to engage and capture the load, perform the lift, and then safely disengage from the load upon the placement of the load in its new location without electrical or manual human involvement.

  • Each individual scissor lifting clamp is proof tested to 125% of its WLL
  • These scissor clamps are designed to handle cylindrical objects such as pipes, round bars, and other cylindrical objects within the capacity limits and geometric limits of the model chosen.
  • Includes Tandemloc Autolatch™ for safe automatic engagement and disengagement of the load.
  • Gripping shoes provide load distribution over the lifted item.
  • Load must have sufficient structural capacity to handle the compressive force applied during the lift.
  • Shackle connection point at the top of the lifter connects to the crane hook.
  • Designed to be used in a balanced lift.
  • Standard Specification #EAD21000A applies.
  • Meets ASME B30.20 and ASME BTH-1 specifications.

Custom Tongs

For pricing on stock or custom tongs, please contact the Tandemloc Sales Department.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Learn more about our paint process

Please Register For Price Quote

RFID

Enhance Operations Track and Authenticate RFID
CLICK FOR MORE INFO

Already a member Login Here

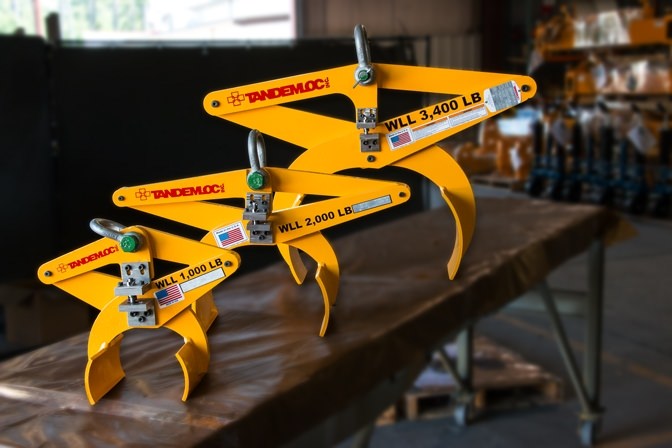

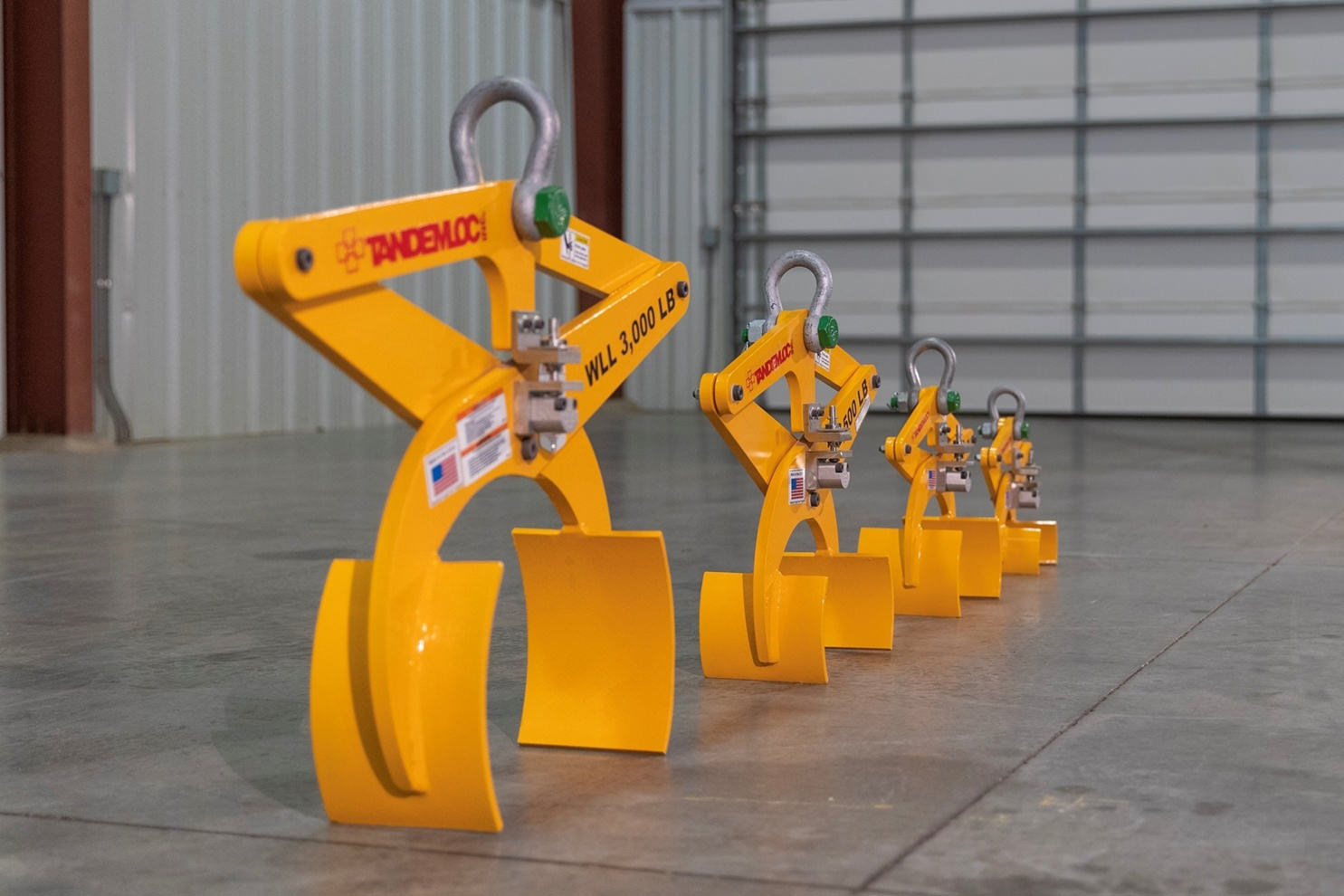

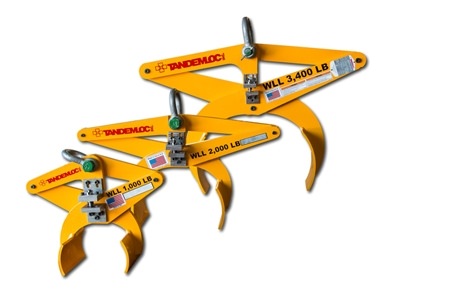

Model Additional Details WLL Min Diameter Max Diameter Weight (lbs.) In Stock Price* Buy Online
AR12A00-01A-PA Pipe Lifting Tongs
1000 lbs 3.5 inches 5.5 inches 20 No
$1,141.22
AR12A00-03A-PA Pipe Lifting Tongs
2000 lbs 5.5 inches 8 inches 42 Yes
$1,183.24
AR12A00-04A-PA Pipe Lifting Tongs
2500 lbs 8 inches 10 inches 53 Yes
$1,382.48
AR12A00-02A-PA Pipe Lifting Tongs
3000 lbs 10 inches 14 inches 90 No
$1,584.43
Type Diametral Tongs

3.5"-5.5" TONG WITH AUTO LATCH, WLL 1,000 LB. (AR12A00-01A-PA)

Tandemloc Inc. AR12 Series Diametral Pipe Lifting Tongs diagram


10"-14" TONG WITH AUTO LATCH, WLL 3,000 LB. (AR12A00-02A-PA)

Tandemloc Inc. AR12 Series Diametral Pipe Lifting Tongs diagram


5.5"-8" TONG WITH AUTO LATCH, WLL 2,000 LB. (AR12A00-03A-PA)

Tandemloc Inc. AR12 Series Diametral Pipe Lifting Tongs diagram


8"-10" TONG WITH AUTO LATCH, WLL 2,500 LB. (AR12A00-04A-PA)

Tandemloc Inc. AR12 Series Diametral Pipe Lifting Tongs diagram
