Pipe Hook Lifting Slings

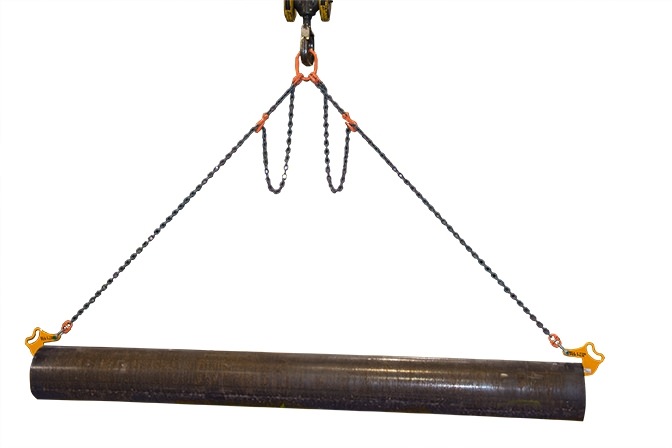

The Tandemloc Pipe Hook lifting system provides a simple, secure and efficient method of lifting and handling pipe sections and pipe-like fabrications or components. The integrated, ergonomically designed handle provides for a safe and convenient method of holding and inserting the pipe hook into the lifted section.

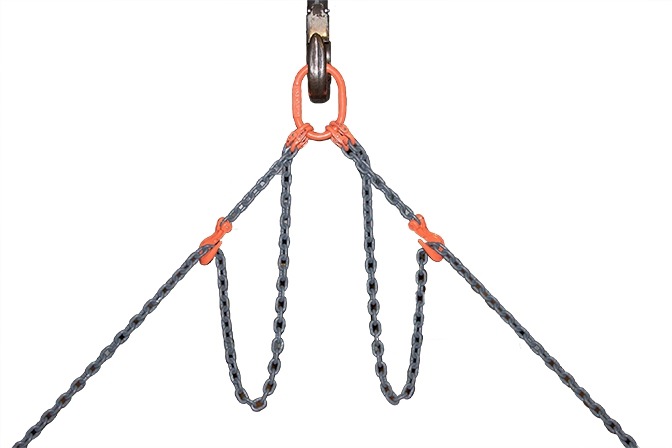

The Tandemloc Pipe Hook system has two elements, the pipe hooks and the top rigging (required). The system is offered in three capacities, 2T, 4T & 8T WLL. Tandemloc offers chain top rigging in two versions. AQ06A0x-144-PA is designed to be used on lifted sections up to 12' long and AQ06A0x-288-PA is designed to be used on lifted sections up to 24' in length. Each of the top rigging options include chain shorteners to adjust the chain leg lengths when the lifted item is less than the maximum design length. The capacity of each top rigging is designed at a minimum sling angle of 45°.

Tandemloc Pipe Hooks and Tandemloc Pipe Hooks with Top Rigging are designed and manufactured in the USA; fully compliant with safety standard ASME B30.20 2013 and designed in accordance with ASME BTH-1-2013; and Proof Tested to 125% of the WLL.

Riggers, want hooks only? Download PDF and see components list and contact us for pricing.

Learn more about our paint process

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Model Description Capacity (per pair) A B C Max Pipe Length Top Rigging Min. Sling Angle Pipe Hook Part Number Top Rigging Part Number In Stock RENT Price* Buy Online
AQ06A02-144-PA Pipe Hook w/ 12ft Top Rigging 2 T 1.5 inches .56 inches 1.88 inches 144 inches 45 degrees AQ06A02-00A-PA AQ06S02-144 Yes -
$388.20
AQ06A04-144-PA Pipe Hook w/ 12ft Top Rigging 4 T 1.5 inches .88 inches 1.88 inches 144 inches 45 degrees AQ06A04-00A-PA AQ06S04-144 Yes -
$458.53
AQ06A08-144-PA Pipe Hook w/ 12ft Top Rigging 8 T 1.5 inches 1.09 inches 1.88 inches 144 inches 45 degrees AQ06A08-00A-PA AQ06S08-144 Yes -
$770.79
AQ06A02-288-PA Pipe Hook w/ 24ft Top Rigging 2 T 1.5 inches .56 inches 1.88 inches 288 inches 45 degrees AQ06A02-00A-PA AQ06S02-288 Yes RENT
$419.62
AQ06A04-288-PA Pipe Hook w/ 24ft Top Rigging 4 T 1.5 inches .88 inches 1.88 inches 288 inches 45 degrees AQ06A04-00A-PA AQ06S04-288 Yes RENT
$503.55
AQ06A08-288-PA Pipe Hook w/ 24ft Top Rigging 8 T 1.5 inches 1.09 inches 1.88 inches 288 inches 45 degrees AQ06A08-00A-PA AQ06S08-288 Yes RENT
$898.19
Type Pipe Hooks


Pipe Hook w/ 12' Top Rigging


Pipe Hook w/ 24' Top Rigging
