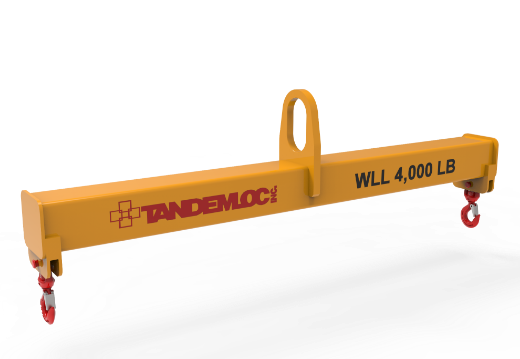

AN52AA04-048-PA Lift Beam

Tandemloc’s Rapid Ready™ Lift Beams are durable, high-quality, high-capacity custom lifting solutions. The AN52AA04-0480-PA Rapid Ready Lift Beam features a Working Load Limit (WLL) of 4,000 lbs. and measures 48 inches center-to-center. It comes equipped with two removable swivel hooks and has a pull-to-pull distance of 15.55 inches. This lift beam is designed and manufactured to ASME B30.20-2013 standards, ensuring safety and reliability.

• Part No: AN52AA04-048-PA
• WLL: 4,000 lbs.
• PROOF TESTED to 125% (5066 lbs.) and certified.
• CALCULATED WEIGHT: 66 lbs.
• FINISH: Sandblast, Prime and Paint Safety Yellow
• STANDARDS: Specification #EAD21000A applies.
