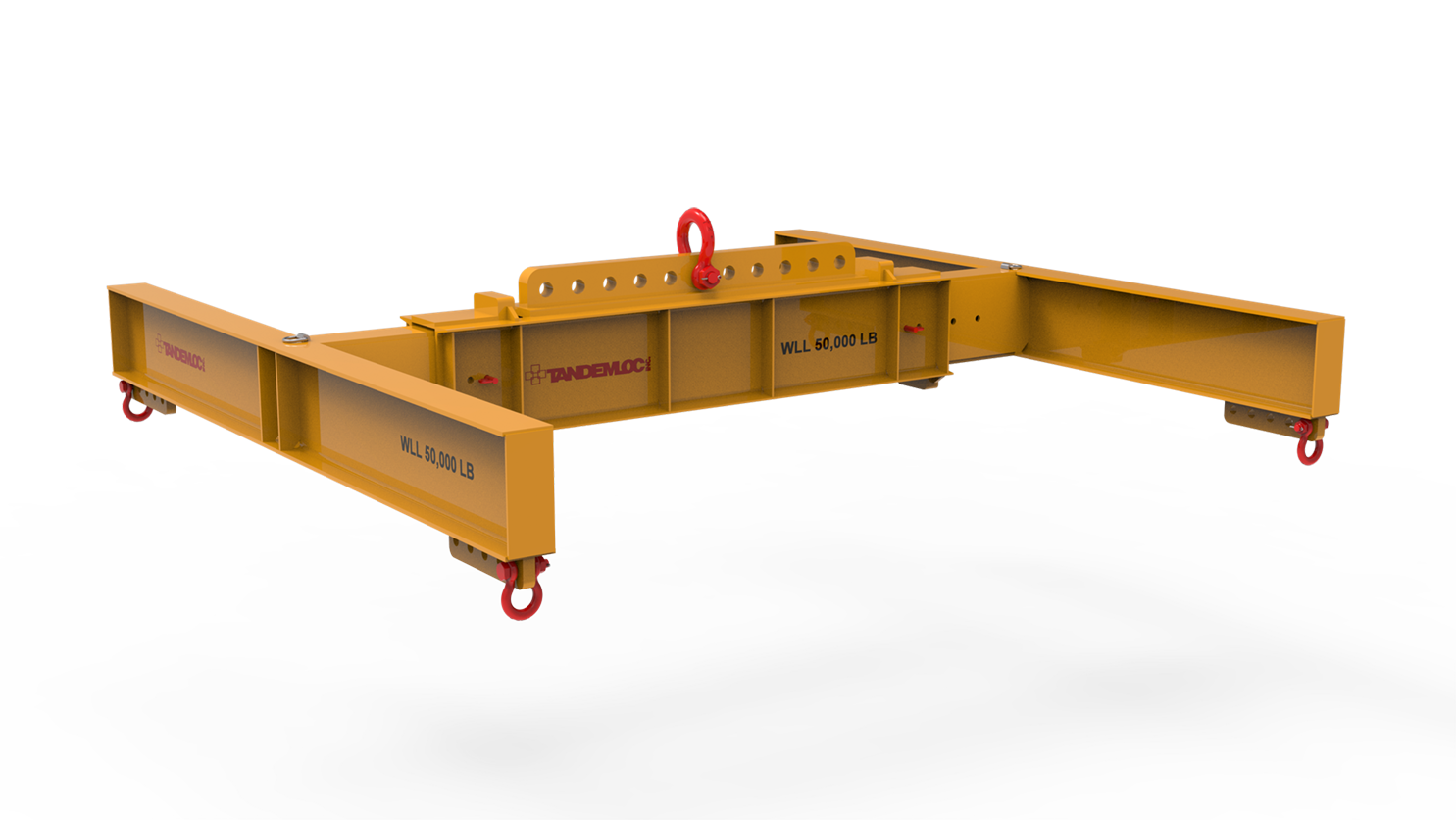

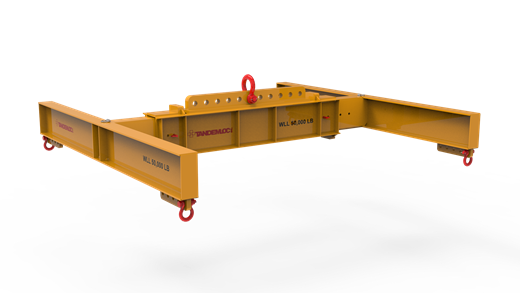

AN10A04-00A-PA Lift Beam

This telescopic "H" style lift beam is adjustable in several places

Several pick points at the top padeye allow for the offset center of gravity and telescopic adjustment longitudinally and transversely. Why settle for a fixed style "H" frame, when you can choose an adjustable "H" frame with endless opportunities? As with most Tandemloc lifting devices, this product can be customized to meet your requirement.


  • Proof Tested: To 125% (62,500 LB) and certified.
  • Calculated Weight: 3,880 LB
  • Finish: Sandblast, prime and paint safety yellow.
  • Standards: Specification #EAD21000A applies. Designed and manufactured to meet or exceed ASME B30.20 and BTH1, Design Category B, Service Class 0.
  • Custom Options: Lifter can be customized for your application, inquire about other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Please Register For Price Quote


Enhance Operations Track and Authenticate RFID

Already a member Login Here

Type 4 Point - Adjustable
WLL 50,000 LBS
Min Extension 112 inches
Max Extension 148 inches
