AL03A00-06A-PA

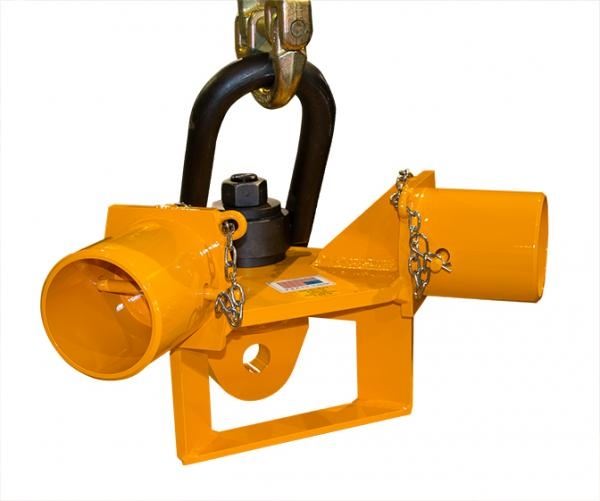

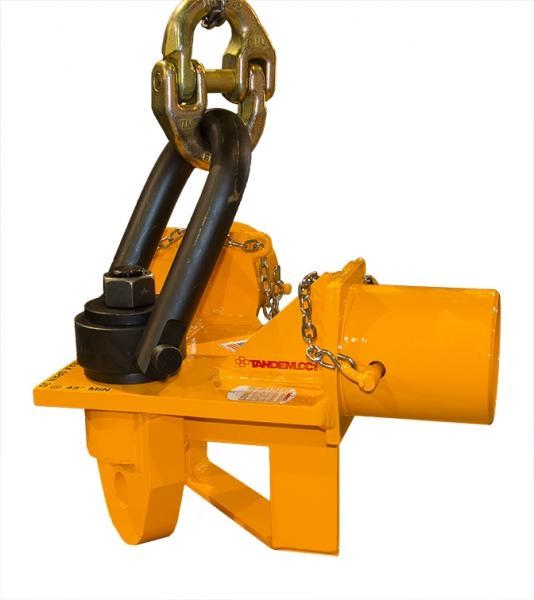

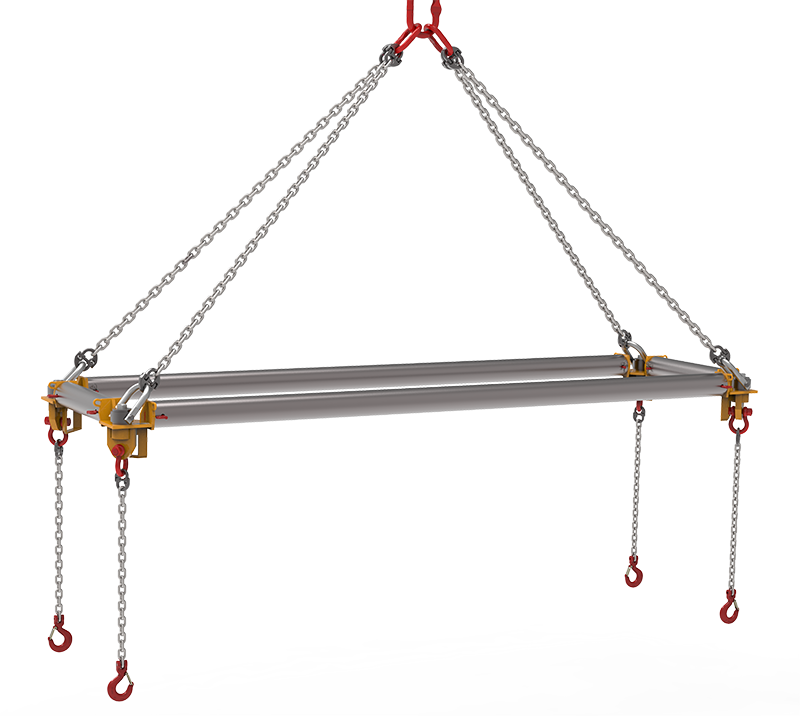

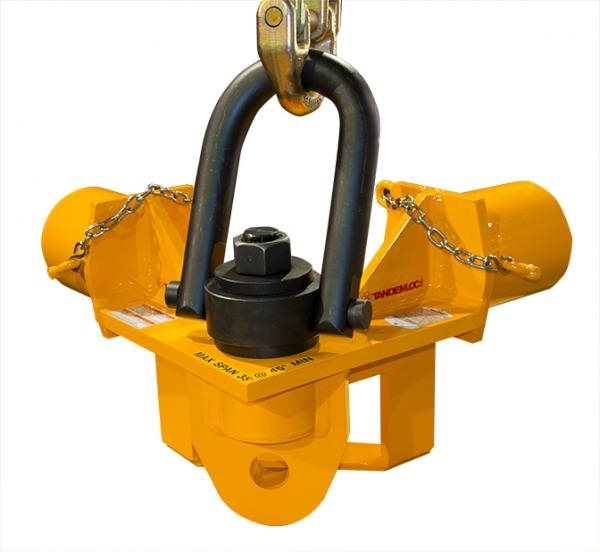

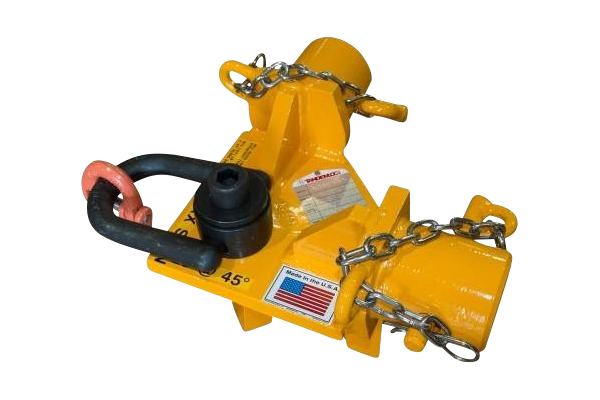

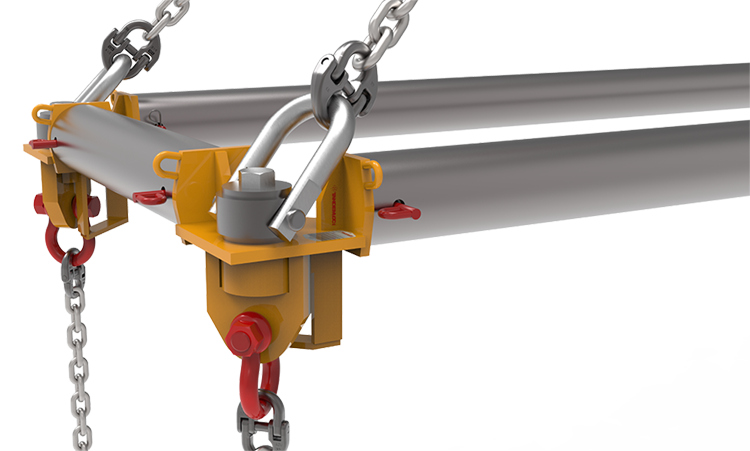

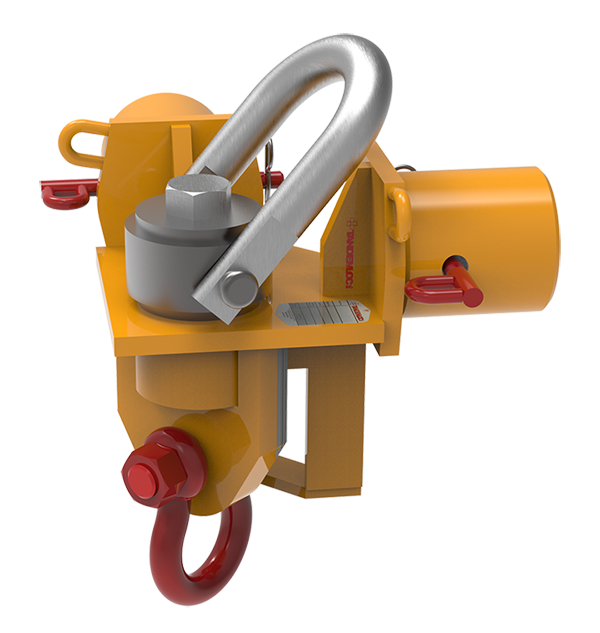

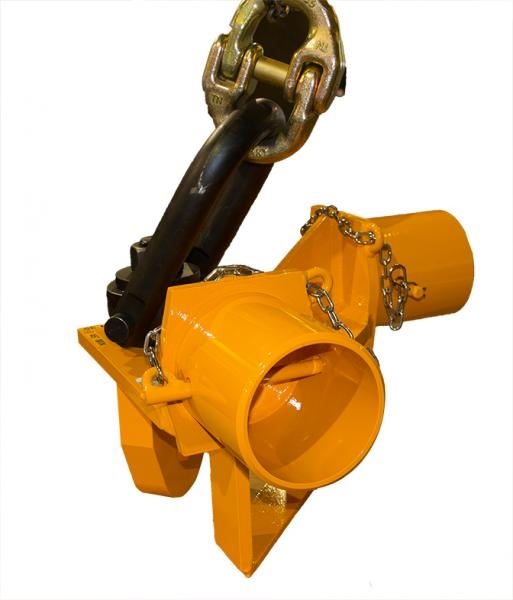

Use Tandemloc’s 6" Corner Caps to create your own lifting frame. Buy pipe locally, drill a hole in each end of the pipe for the retaining pin, and then create the exact frame size you require. Very efficient, economical and portable. Save a lot of money freight costs. You can also rent pipe from Tandemloc Rentals in pre-cut lengths (Call for details).

Designed and manufactured to meet or exceed ASME B30.20 and BTH-1, Design Category B, Service Class 0.

  • PROOF TESTED LOAD: 125% at @ 45⁰ Sling Angle
  • CORNER WLL: 16,970 LBS @ @ 45⁰ Sling Angle
  • CALCULATED WEIGHT: 180 LBS per corner (720 LBS)
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies.
Product Notes
  • Frames may be made with equal length parallel sides in square or rectangle shapes.
  • Pipe length should not exceed 35’ without contacting Tandemloc Rentals for additional information.
  • Once pipe is cut a ø1.00" hole needs to be drilled through the pipe 2.00" from the end for the safety pin.
  • Top slings are to only be made in a 4 leg assembly at 45° to 80°.
  • Bottom slings are to pull straight down at 90°±5° to the frame.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Maximum WLL @ 45° per Set of 4 67,880 LBS
Spreader Pipe Size 6 Inches
