AL03A00-04A-PA

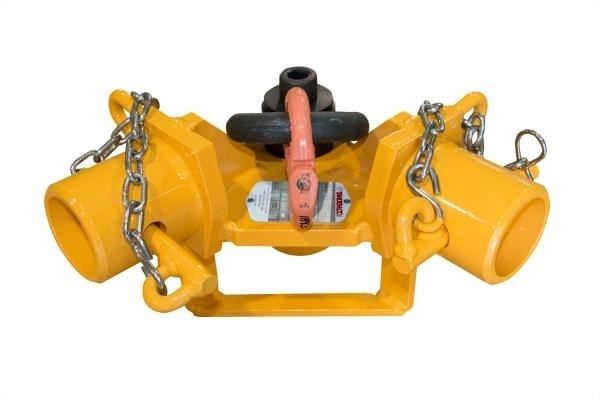

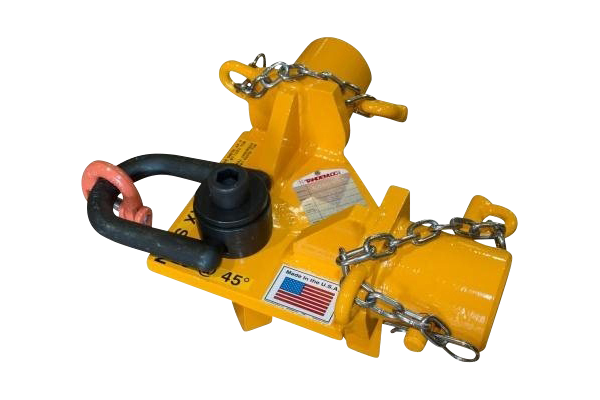

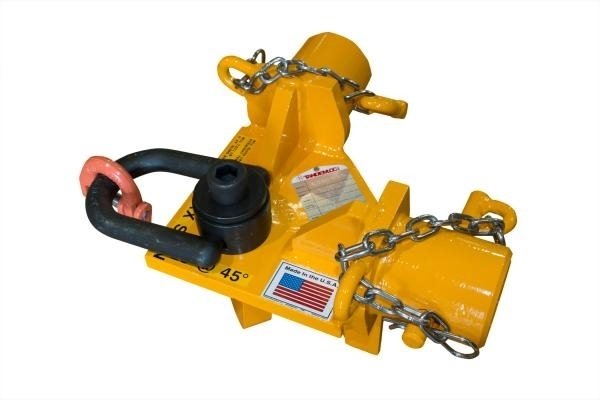

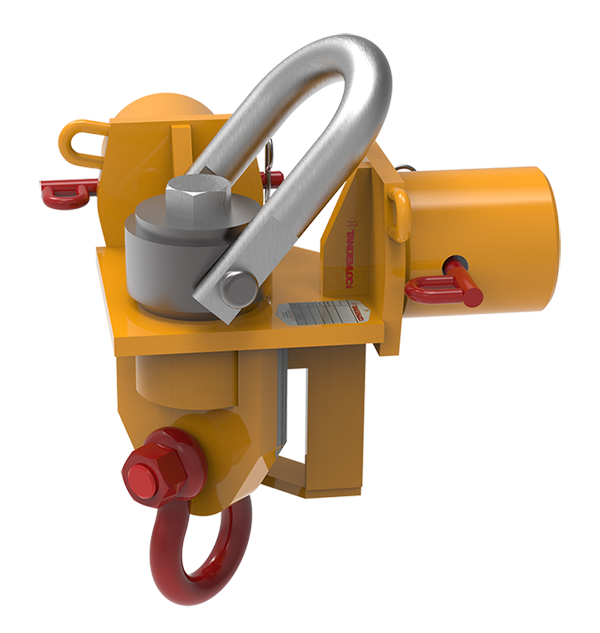

Use Tandemloc’s 4" Corner Caps to create your own lifting frame. Buy pipe locally, drill a hole in each end of the pipe for the retaining pin, and then create the exact frame size you require. Very efficient, economical and portable. Save a lot of money freight costs. You can also rent pipe from Tandemloc Rentals in pre-cut lengths (Call for details).

Designed and manufactured to meet or exceed ASME B30.20 and BTH-1, Design Category B, Service Class 0.

  • PROOF TESTED LOAD: 125% at @ 45⁰ Sling Angle
  • CORNER WLL: 7,072 LBS @ @ 45⁰ Sling Angle
  • CALCULATED WEIGHT: 62 LBS per corner (248 LBS)
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies.
Product Notes
  • Frames may be made with equal length parallel sides in square or rectangle shapes.
  • Pipe length should not exceed 25’ without contacting Tandemloc Rentals for additional information.
  • Once pipe is cut a ø1.00" hole needs to be drilled through the pipe 2.00" from the end for the safety pin.
  • Top slings are to only be made in a 4 leg assembly at 45° to 80°.
  • Bottom slings are to pull straight down at 90°±5° to the frame.

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Maximum WLL @ 45° per Set of 4 28,288 LBS
Spreader Pipe Size 4 Inches
