AK19A00-00A-PA Lift Beam

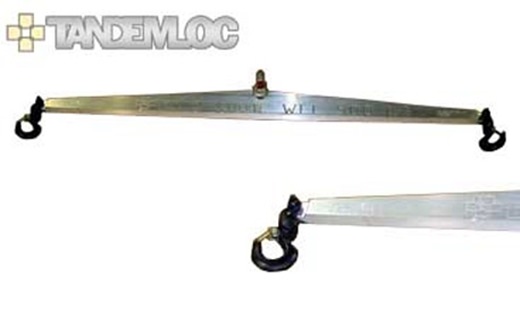

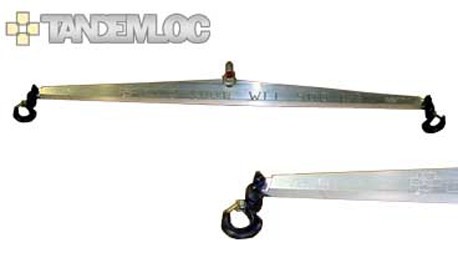

Aluminum Lift Beam

TANDEMLOC was called upon to custom-build a proper lifter for a manufacturer of specialty plastics.

The aluminum lift beam weighs only 16.75 lb and is tested and certified to a 500 lb. working load limit. The previous method they used caused damage to their equipment due to the pinching of the material. They wanted a lightweight, low overhead lifter for a processor lid so this aluminum spreader bar with swivel hooks was created.

  • PROOF TESTED to 125% (625 LB) and certified.
  • FINISH: Polished aluminum.
  • STANDARDS: Specification #EAD21000A applies. Designed to meet or exceed ASME B30.20, & BTH-1, Design Category B, Service Class 0.
  • CUSTOM OPTIONS: Can be customized for your application, inquire about other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Please Register For Price Quote


Enhance Operations Track and Authenticate RFID

Already a member Login Here

Type Special Lift Beams
WLL 500 lbs
Btm Spd Min 52 inches
Btm Spd Max 52 inches
