AJ07A00-00A-PA Lift Beam

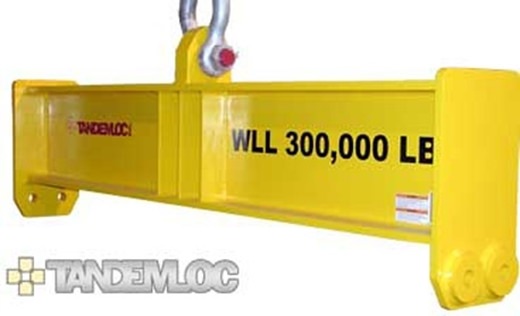

Lift Beam with Fixed Pad Eyes, 171.75"

Tandemloc's customer required a lift beam that could not only lift a ship deck at four lift points, but one that could also handle an extremely heavy load.

This stout lift beam with a 300,000 lb working capacity. Tested with Tandemloc's versatile (pat pending) test machine, this load was easily achieved. Other manufacturers would have to jump through hoops to handle this level of testing load. For us, it's just another day at the office. Tandemloc is the cost effective source for heavy lift applications!

  • PROOF TESTED to 125% (375,000 LB) and certified.
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies. Designed to meet or exceed ASME B30.20, & BTH-1, Design Cat. B, Service Class 0.
  • CUSTOM OPTIONS: Can be customized for your application, inquire for other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Please Register For Price Quote


Enhance Operations Track and Authenticate RFID

Already a member Login Here

Type Lift Beams with Multi-Pick Pad Eyes
WLL 300,000 LBS
Btm Spd Min 171.75 inches
Btm Spd Max 171.75 inches
