AG14A00-00A-PA Lift Beam

"H" Style Lift Beam

Design advantage: accomplishes a 4 point lift as a fixed frame 4-point lifter and can be taken apart - each component is a lift beam

This product combines two adjustment methods. The main beam incorporates multi-hole pad-eyes while the smaller end beams use the multi hole pad eyes at the bottom and the fast acting sliding shackle adjustment design at the top. This lifter can be customized to meet other capacities and dimensions.

  • PROOF TESTED to 125% (57,500 LB) and certified.
  • CALCULATED WEIGHT: 4,938 LB
  • FINISH: Sandblast, prime and paint safety orange.
  • STANDARDS: Specification #EAD21000A applies.
  • CUSTOM OPTIONS: Lifter can be customized for your application, inquire for other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Learn more about our paint process

Please Register For Price Quote

RFID

Enhance Operations Track and Authenticate RFID
CLICK FOR MORE INFO

Already a member Login Here

Model Additional Details Description In Stock Price* Buy Online
AG14A01-00A-PA
Upper Lift Beam No --
AG14A02-00A-PA
Lower Lift Beam No --
AG14A03-00A-PA
Full Length Lower Lift Beam No --
Type 4 Point - Adjustable
WLL 46,000 LBS
Min Extension 95.10 inches
Max Extension 270.10 inches

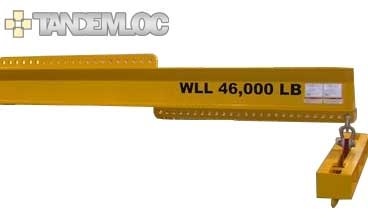

AG14A00-00A-PA Complete

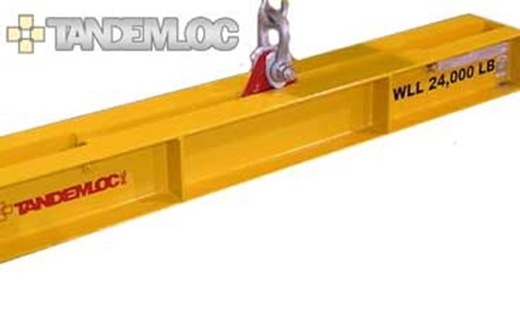

PART AG14A01-00A-PA - UPPER LIFT BEAM

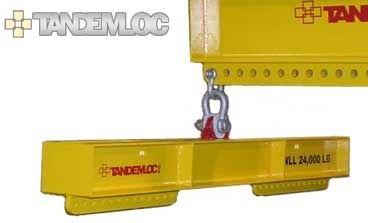

PART AG14A02-00A-PA - LOWER LIFT BEAM


PART AG14A03-00A-PA - FULL LENGTH LOWER LIFT BEAM
