AE26000A-1PA

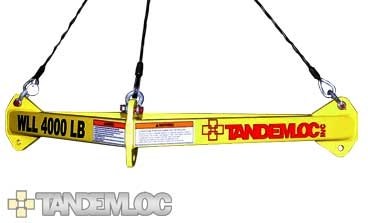

Triangular Lift Frame

Here's triangular lift frame for a 3 point lift that was done for a major university

This style could easily be adapted for much heavier and larger applications.

  • PROOF TESTED to 125% (5,000 LB) and certified.
  • CALCULATED WEIGHT: 77 LB. - Sling: 6 LB.
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies. Meets ASME B30.20.
  • CUSTOM OPTIONS: Lift Beams can be customized for your application, inquire for other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Learn more about our paint process

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Model Description In Stock Price* Buy Online
AE26002A-100 3 Leg Sling Assembly No --
Type 3 Point
WLL 4,000 LBS
Min. Spread 2 ft
Max Spread 3.5 ft

Triangular Lift Frame Drawing
