AD37000B-1PA

Adjustable Frame

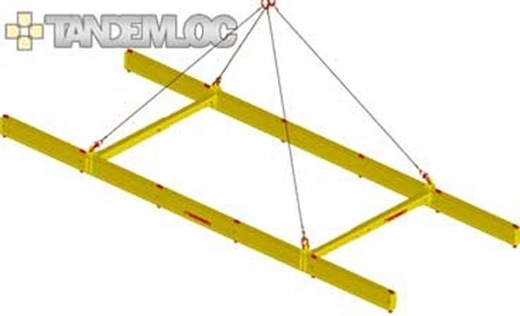

The AD37000B-1PA Adjustable Frame with Sling" offers versatility like no other spreader frame.

The sliding padeye design offers quick lift point adjustments along the length of the frame. The frame also adjusts widthwise with the 2 sets of telescopic, transverse beams provided. Also, the frame can be disassembled to become two spreader bars, each with it's own sling! This modular design is just the ticket for users who have many different sized items to lift, but do not want to buy a different lifter for each and every item. Of course, like almost everything we offer, it can be altered to suit other sizes and capacities!

  • PROOF TESTED to 125% (100,000 LB) and Certified
  • CALCULATED WEIGHT:
    Frame with Long Trans Tubes: 17,675 LB
    Sling Assembly: 520 LB
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies. Designed and manufactured to meet or exceed ASME B30.20.
  • CUSTOM OPTIONS: Lifter can be customized for your application, inquire for other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Type 4 Point - Adjustable
WLL 80,000 LBS
Min Extension 25 ft
Max Extension 45 ft
