Steel End Caps For Spreader Beam | AC25C Series

To design your own spreader beam assembly, you will need to know the span of your spread and the weight of the load you’ll be lifting, and the weight of the assembled lifter. Also, consider any height restrictions that will dictate the sling height above the load. Always thoroughly review the end cap manual, #SAC25C, prior to use to ensure your proposed application is within the limits of these particular end caps.

Use two end caps, one on each end of the pipe for a capacity of 2x the end cap workload limit. However, consult the drawings (see tab below) for details concerning capacities and limitations for the specific End Cap and Pipe used for a given span. We recommend using the END CAP APP to select the right components for your application.

Each End Cap is proof-tested, and ships with a certificate.

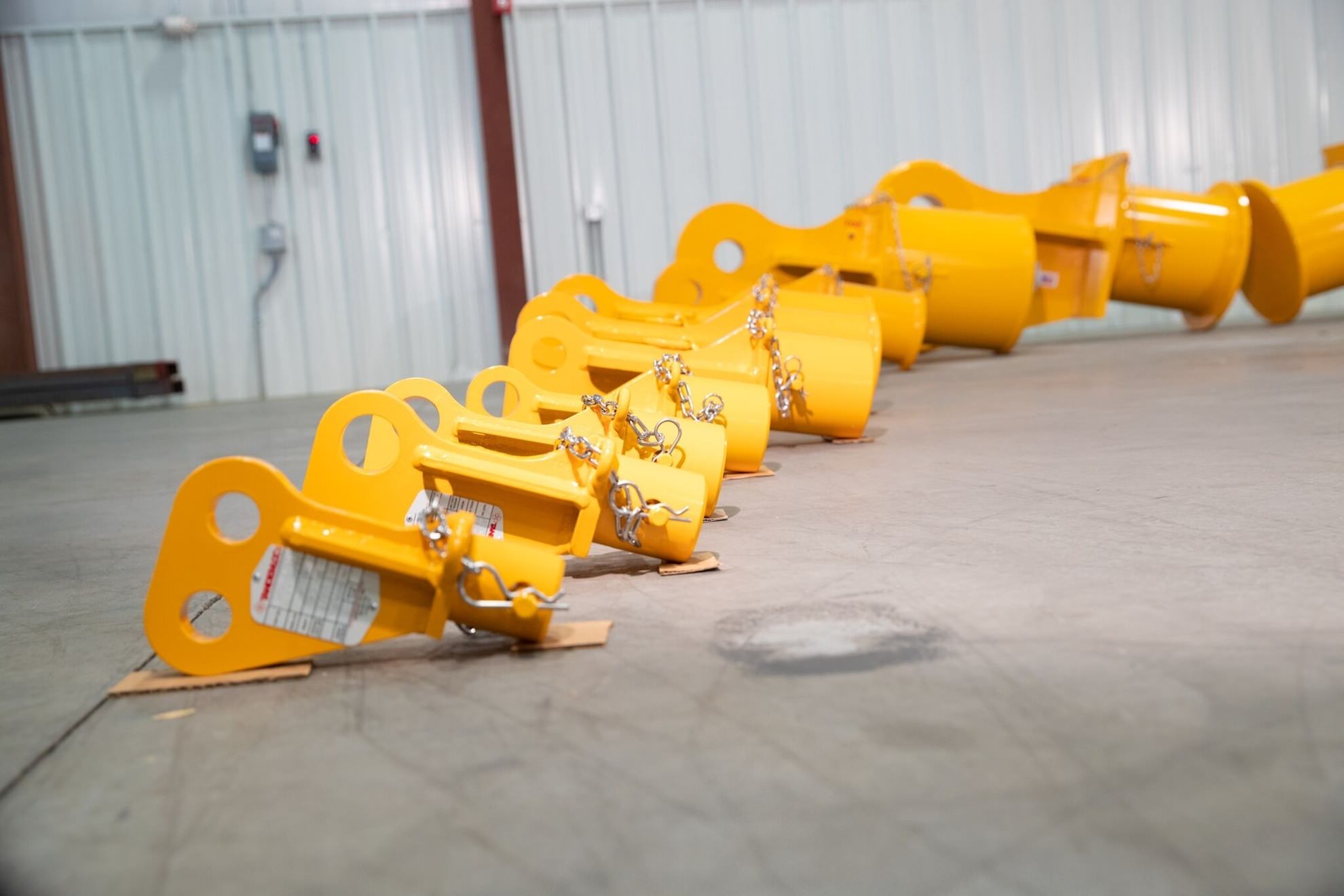

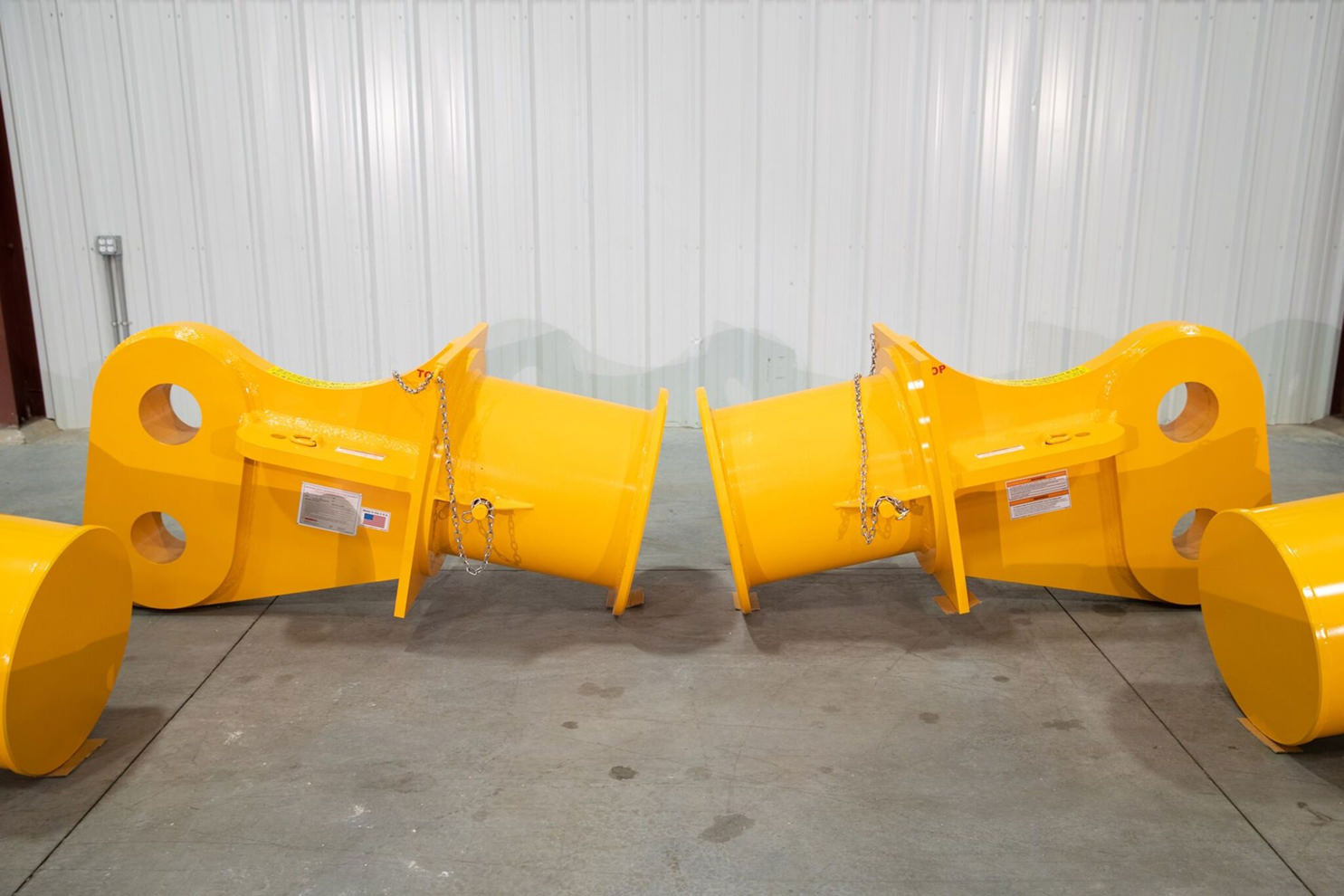

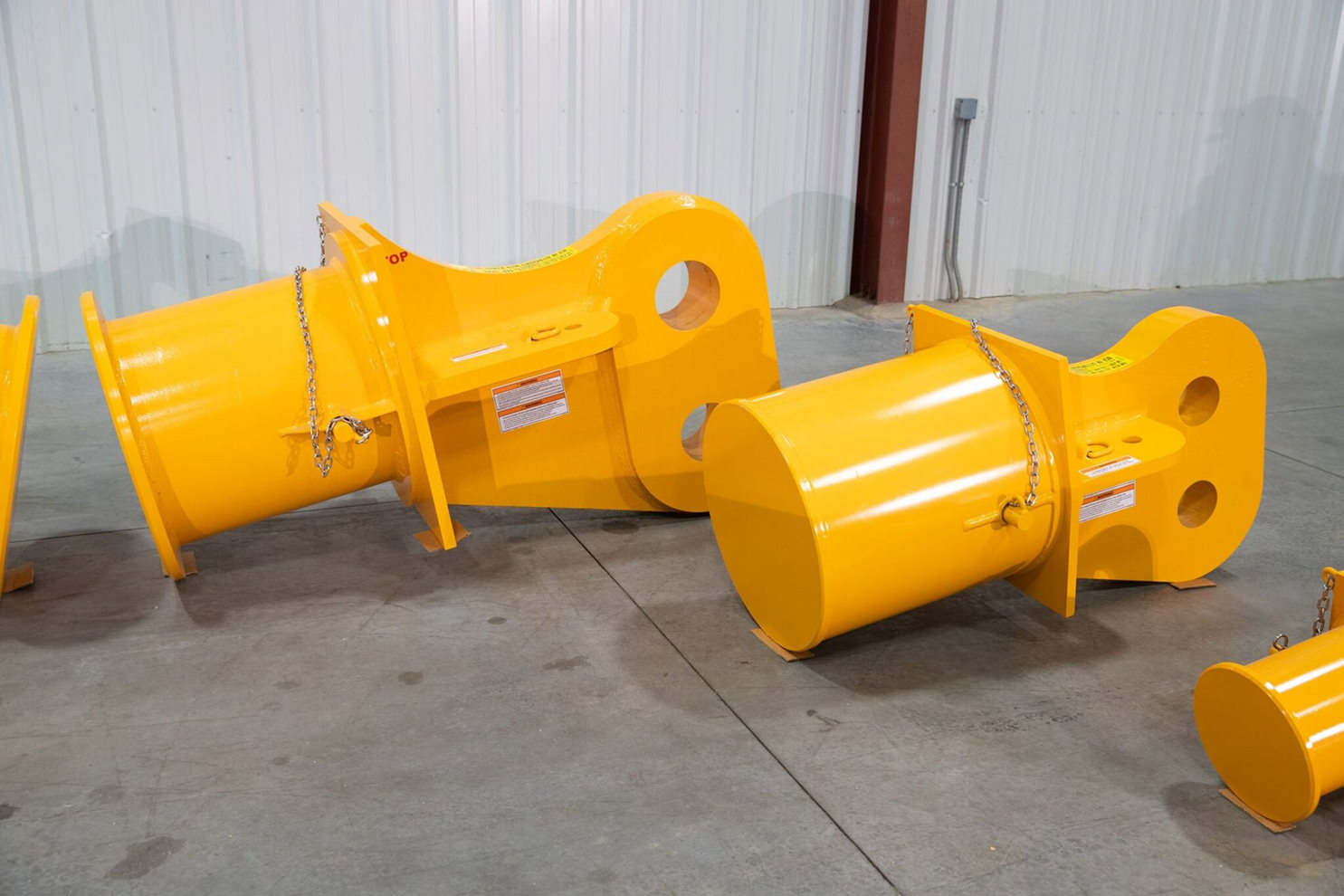

AC25C Series Steel End Caps Details

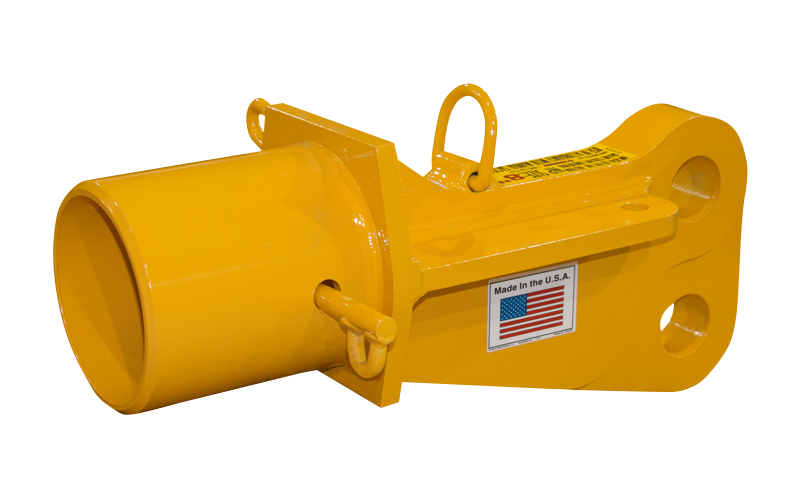

  • Material is steel, painted with abrasion-resistant, high gloss, two-part epoxy finish in Safety Yellow
  • Tandemloc End Caps are individually proof tested to meet or exceed ASME B30.20. Pipe to be used with the end cap assembly can be purchased proof tested from Tandemloc or procured locally untested. The end user should confirm that non-proof tested pipe is acceptable for their application/jobsite requirements.
  • Use two end caps, one on each end of the spreader pipe for a capacity of 2x the end cap workload limit.
  • Use manual #SAC25C, included with each set of pipe caps
  • Each pipe cap has a label with data as shown below and the nominal pipe size it fits. The label may say "Sched 60 wall” instead of "Sched 80 wall" depending on the size of end cap.
  • Each end cap over 8" has one or two D-rings for lifting the end cap only.
  • Please Note: When building a spreader bar assembly using the AC25C End Eye Caps, capacities will be dependent upon using the pipe and span as specified on: Standard Spreader Pipe for Use with AC25C End Eye Caps (AC22P)
  • It is the user's responsibility to conform to the span and the pipe specifications exactly as indicated!
  • Caution: Never use a sling angle of less than specified. NEVER EXCEED THE WORKLOAD LIMIT (WLL) for the pipe, per the span indicated, nor the capacity of the end cap! Failure to stay within these limits could result in lifter assembly failure, leading to property damage, injury, or death from a falling load.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Learn more about our paint process

Please Register For Price Quote


Enhance Operations Track and Authenticate RFID

Need help with the End Cap App? Here are some instructions.

Already a member Login Here

Minimum Capacity: 14,000 lb. per End Cap

Maximum Capacity: 1,544,000 lb. per End Cap

Minimum Spread: 3 feet

Maximum Spread: 100 feet

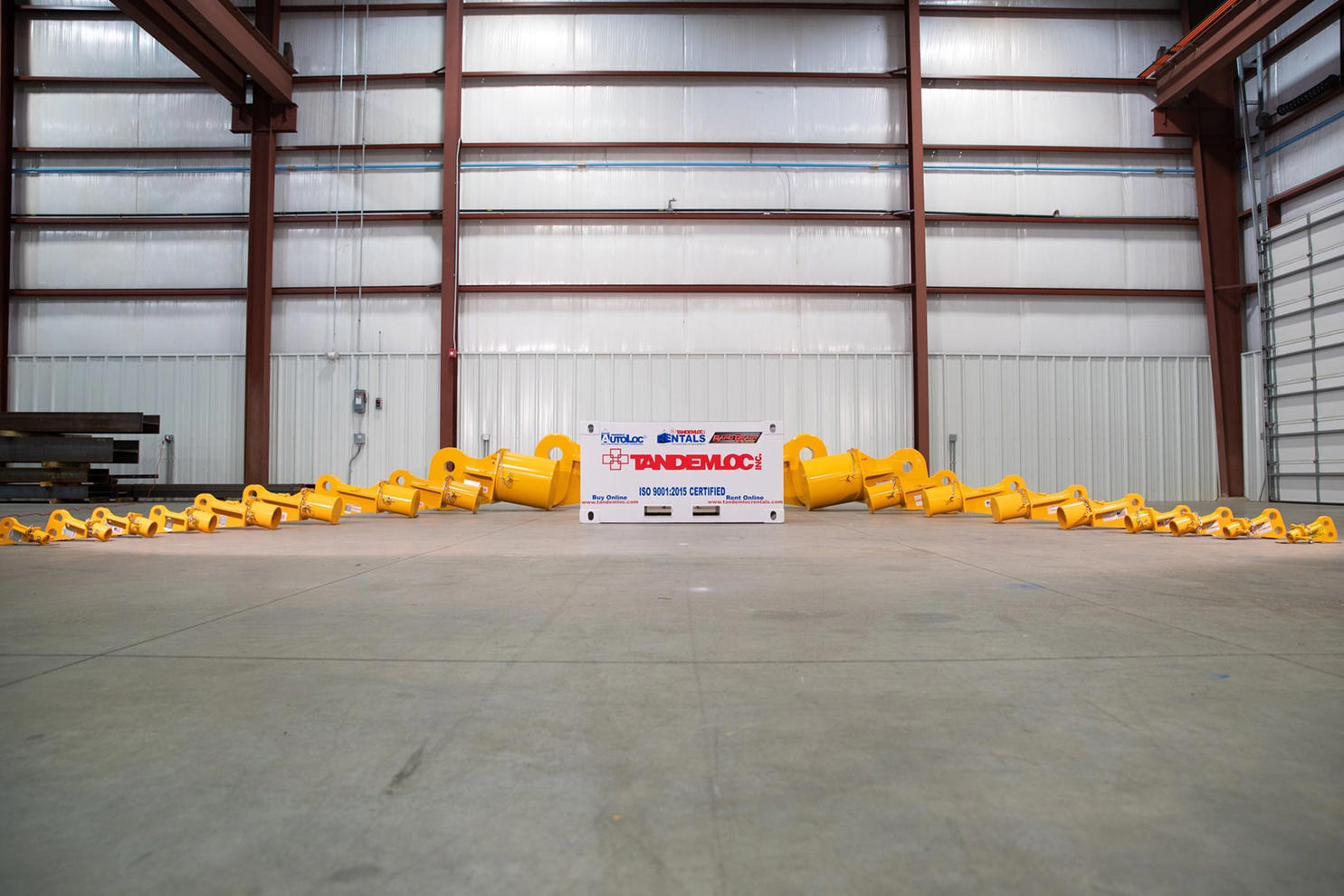

Spreader Pipe Sizes in Inches: 3, 4, 5, 6, 8, 10, 12, 14, 26, 32.

In Stock: All End Caps are in Stock, Subject to Prior Sale. Pipe inventory varies, consult our sales dept.

End Cap Drawings

Use the End Cap App for help to select the right End Caps and Pipe for your Application!
