AB07000A-1PA Spreader Bar


The fixed length spreader can be built to virtually any length and can be designed to accommodate a variety of sling types, like wire rope or chain and at different sling angles, depending on your headroom constraints.

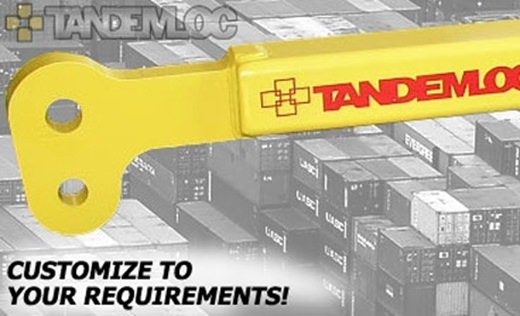

The spreader bar ends can be offered in a "clevis" style, eliminating the need for shackles to connect the slings or pendants. In the larger load capacities, shackles can be very expensive, so the minor additional expense for the clevis style design is often offset by the savings from not needing shackles. But if you have shackles, then you may just wish to use 'em. It's up to you!

  • PROOF TESTED to 125% (31,250 LB) and certified.
  • CALCULATED WEIGHT: 180 LB (including sling)
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies. Designed and manufactured to meet or exceed ASME B30.20.
  • CUSTOM OPTIONS: Lifter can be customized for your application, inquire for other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Please Register For Price Quote


Enchance Operations Track and Authentice RFID

Already a member Login Here

Type Fixed
WLL 25,000 LBS
Top Rigging Included No
Min Extension 10 ft
Max Extension 10 ft
