AA09000A-1PA

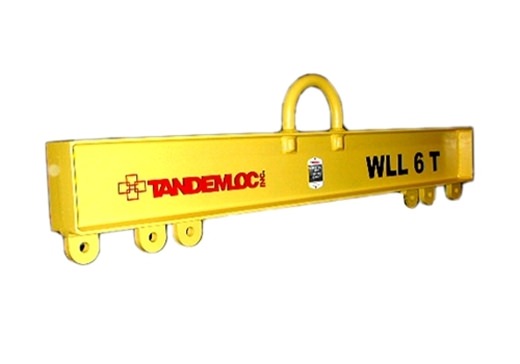

Lift Beam with Fixed Pad Eyes, 76"

This liftbeam incorporates a large loop for the crane hook

Padeye-lift points are specifically located for a customer's application. 76" Length. Another lifter easily customized to meet your needs.

  • PROOF TESTED to 125% (30,000 LB) and certified.
  • CALCULATED WEIGHT: 325 LB
  • FINISH: Sandblast, Prime and Paint Safety Yellow
  • STANDARDS: Specification #EAD21000A applies. Meets ASME B30.20.
  • CUSTOM OPTIONS: Can be customized for your application, inquire for other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Type Lift Beams with Fixed Pad Eyes
WLL 24,000 LBS
Btm Spd Min 76 inches
Btm Spd Max 76 inches
