AL50 Series Spreader/Lift Beam Combination


Introducing Tandemloc's first ever multi-pick and spreader/lift beam combination lifting device. Not only can this lift device be used as a spreader beam or multi-pick lift beam, it also has several pick-points located along the bottom of the beam for lifting versatility. Top and Bottom Shackles are included. Top rigging is optional – ask your salesman for a quote on rope or chain. As with most of Tandemloc's lifting products, this device can be customized to meet your lifting requirements.

  • PROOF TESTED to 125% of WLL (See Chart for Capacities) and Certified
  • CALCULATED WEIGHT: See Chart
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies. Designed to meet or exceed ASME B30.20, & BTH-1, Design Category B, Service Class 0.
  • CUSTOM OPTIONS: Lifter can be customized for your application, inquire for other load capacities or sizes.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Learn more about our paint process
Model Capacity (lbs.) Bottom Padeye Length (inches) Top Padeye Length (inches) Overall Beam Length (inches) Beam Weight (lbs) In Stock Price* Buy Online
AL50A00-00A-PA Spreader/Lift Beam Combination 10,000 120 32 123.75 403 Yes
$2,650.57

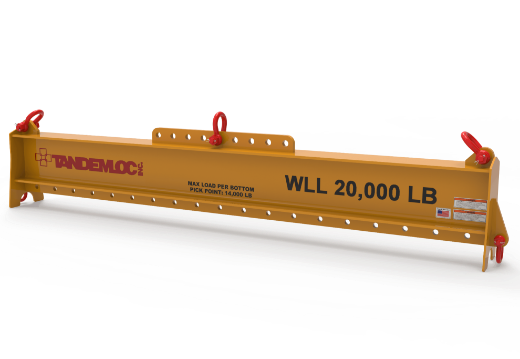

AL50B00-00A-PA Spreader/Lift Beam Combination 20,000 122 32 126.5 657 Yes
$5,247.70

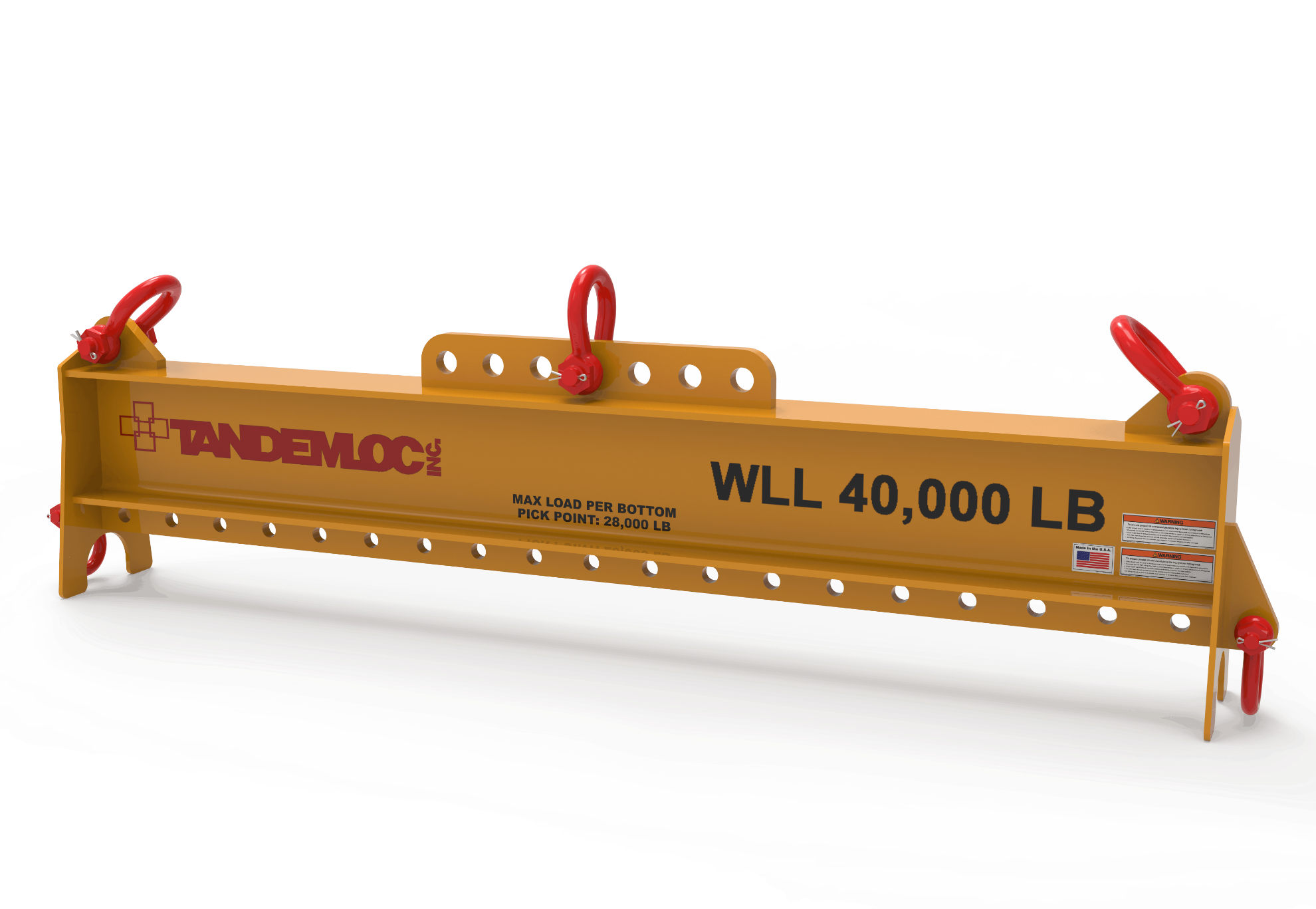

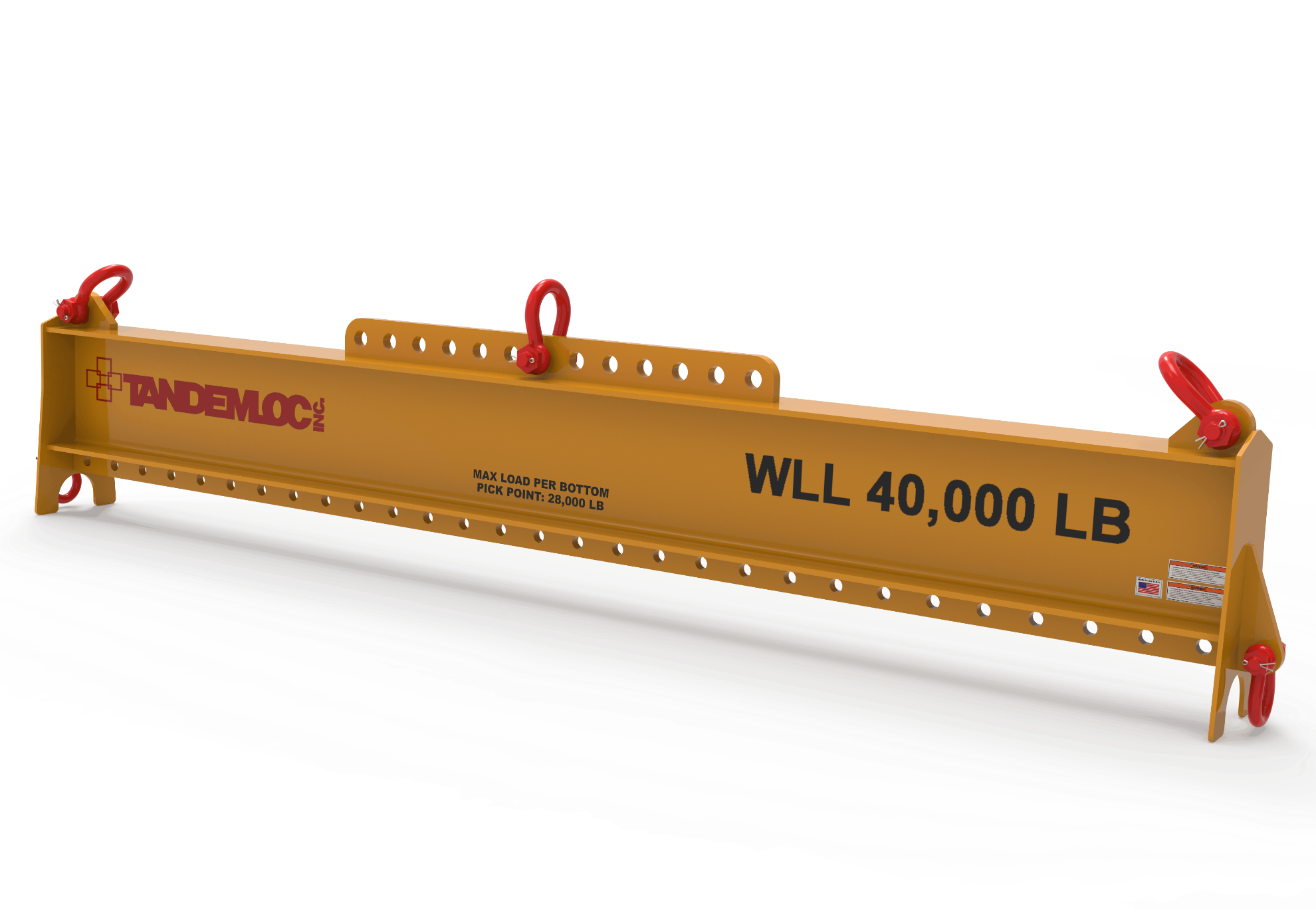

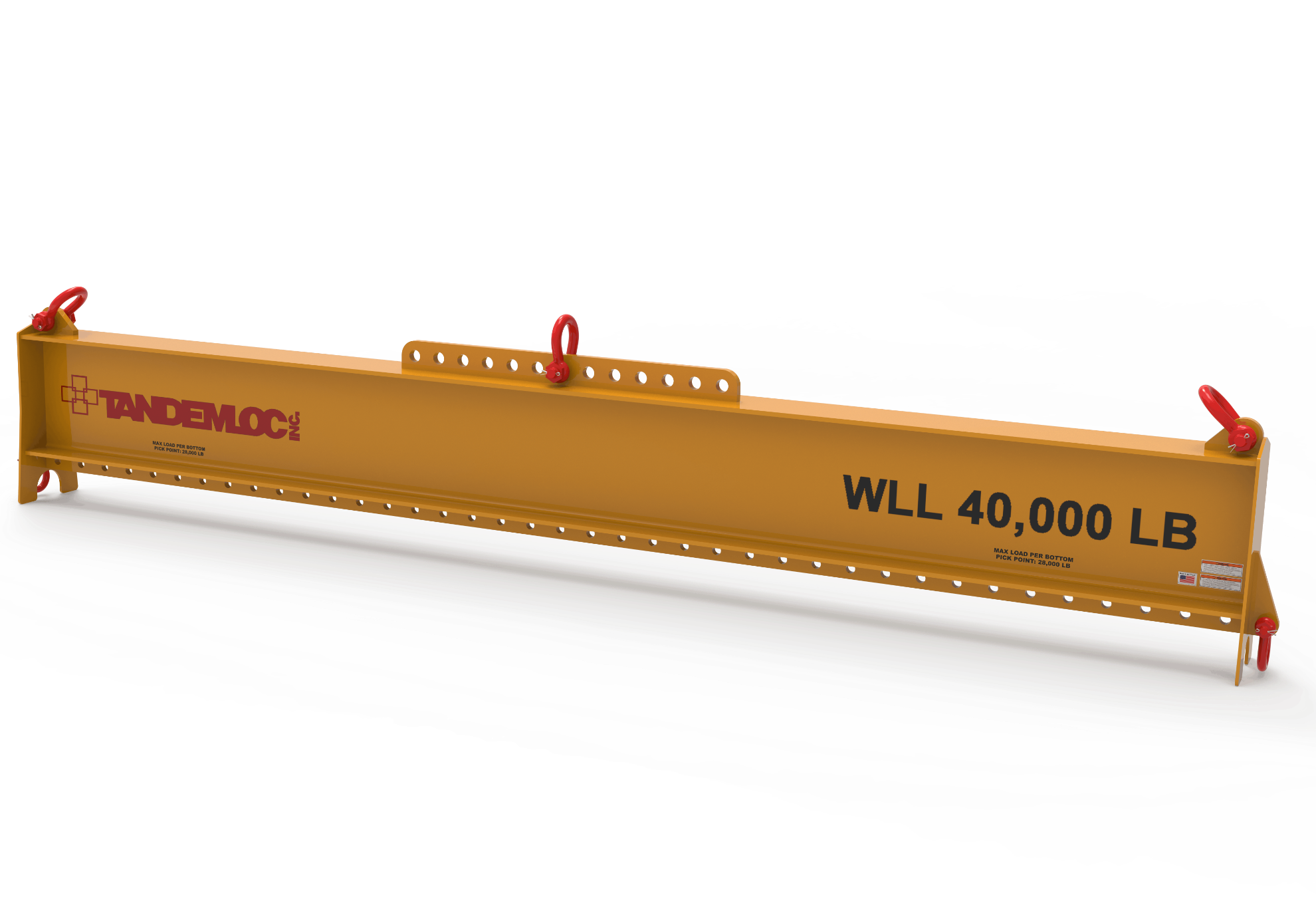

AL50C00-00A-PA Spreader/Lift Beam Combination 40,000 180 60 186.25 1933 Yes
$9,775.22
AL50D00-00A-PA Spreader/Lift Beam Combination 40,000 240 60 246.25 2524 No --

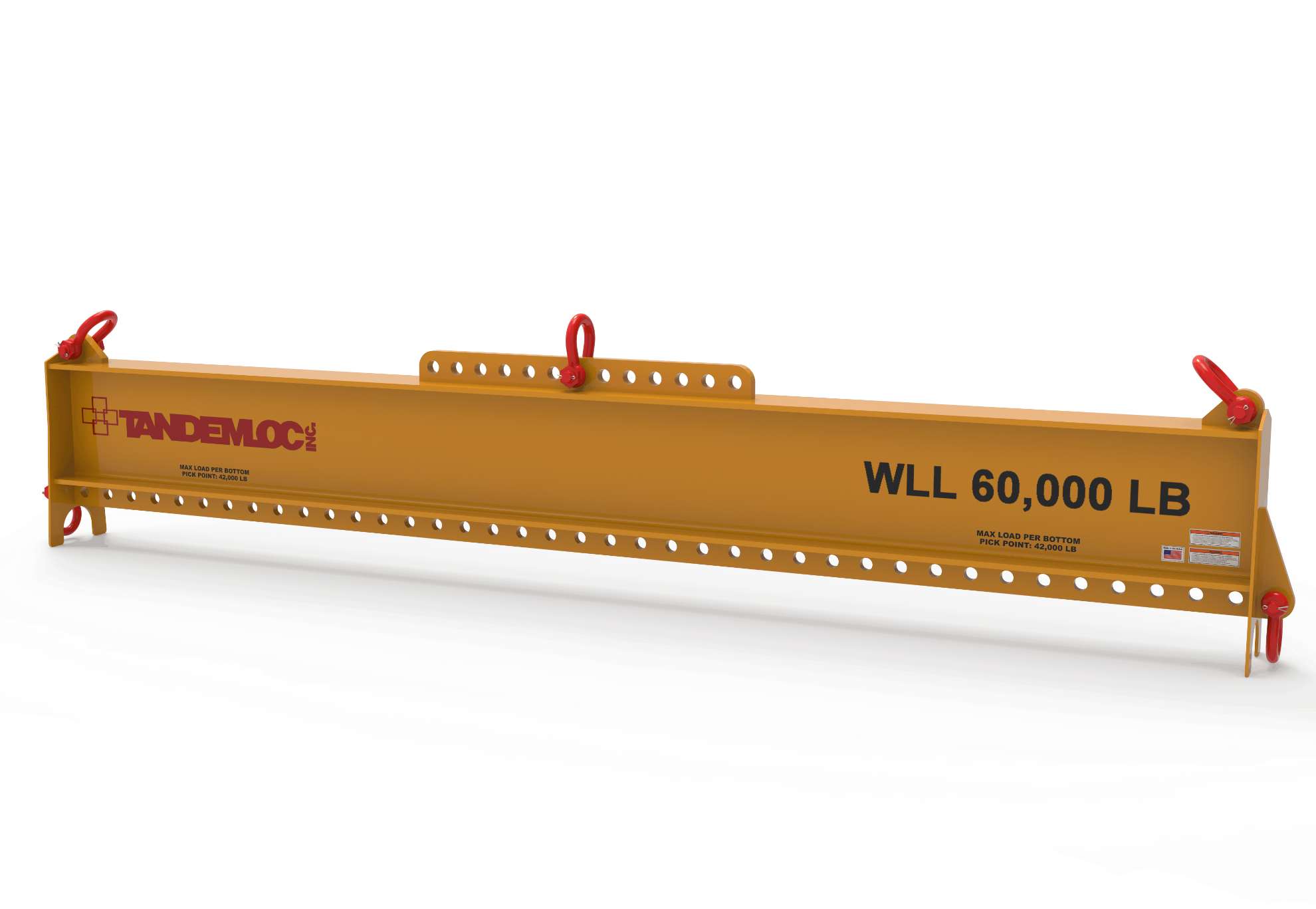

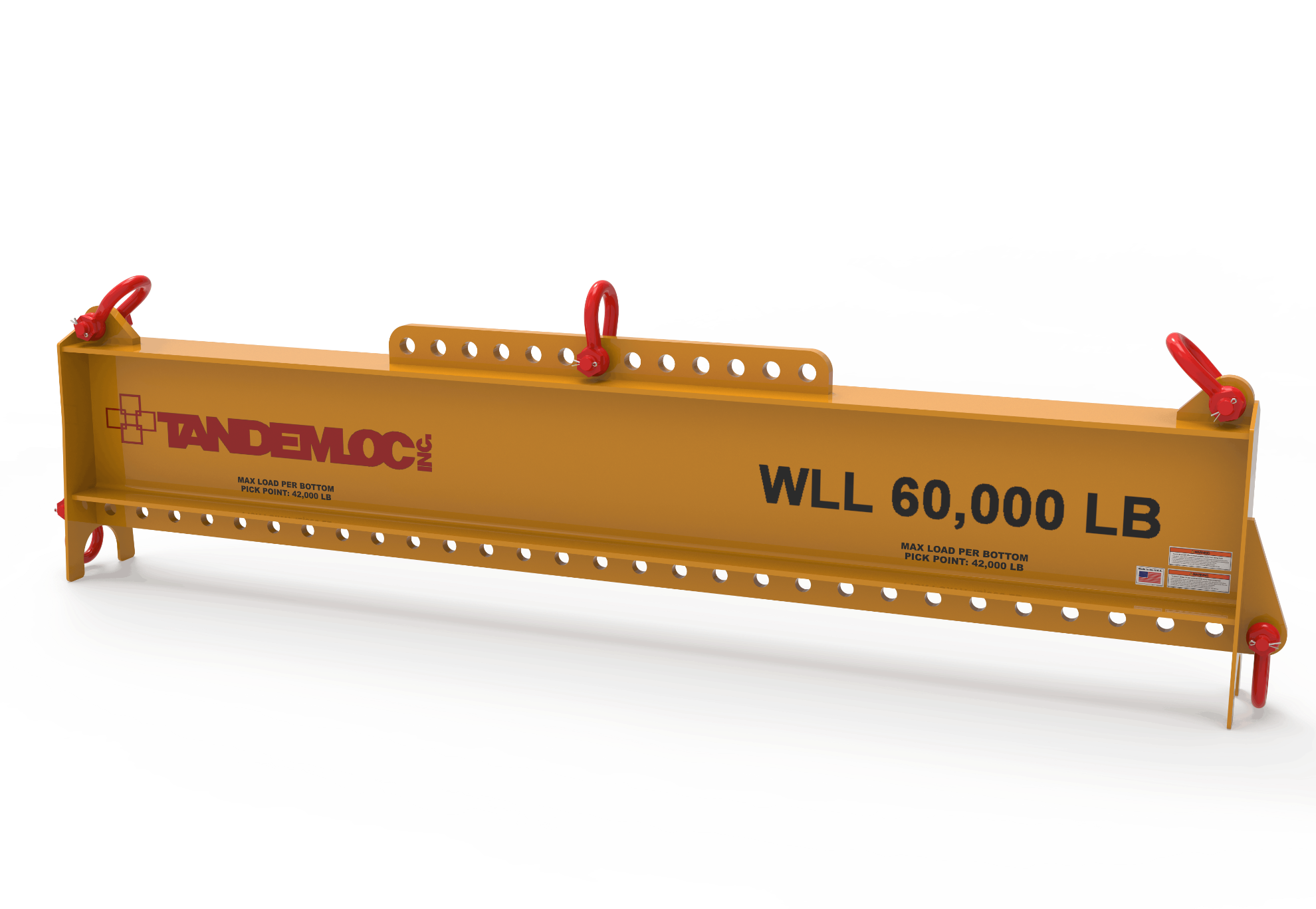

AL50E00-00A-PA Spreader/Lift Beam Combination 60,000 180 60 187.5 2594 No --
AL50F00-00A-PA Spreader/Lift Beam Combination 60,000 240 60 247.75 3441 No --
AL50G00-00A-PA Spreader/Lift Beam Combination 40,000 108 84 114.25 1460 No --

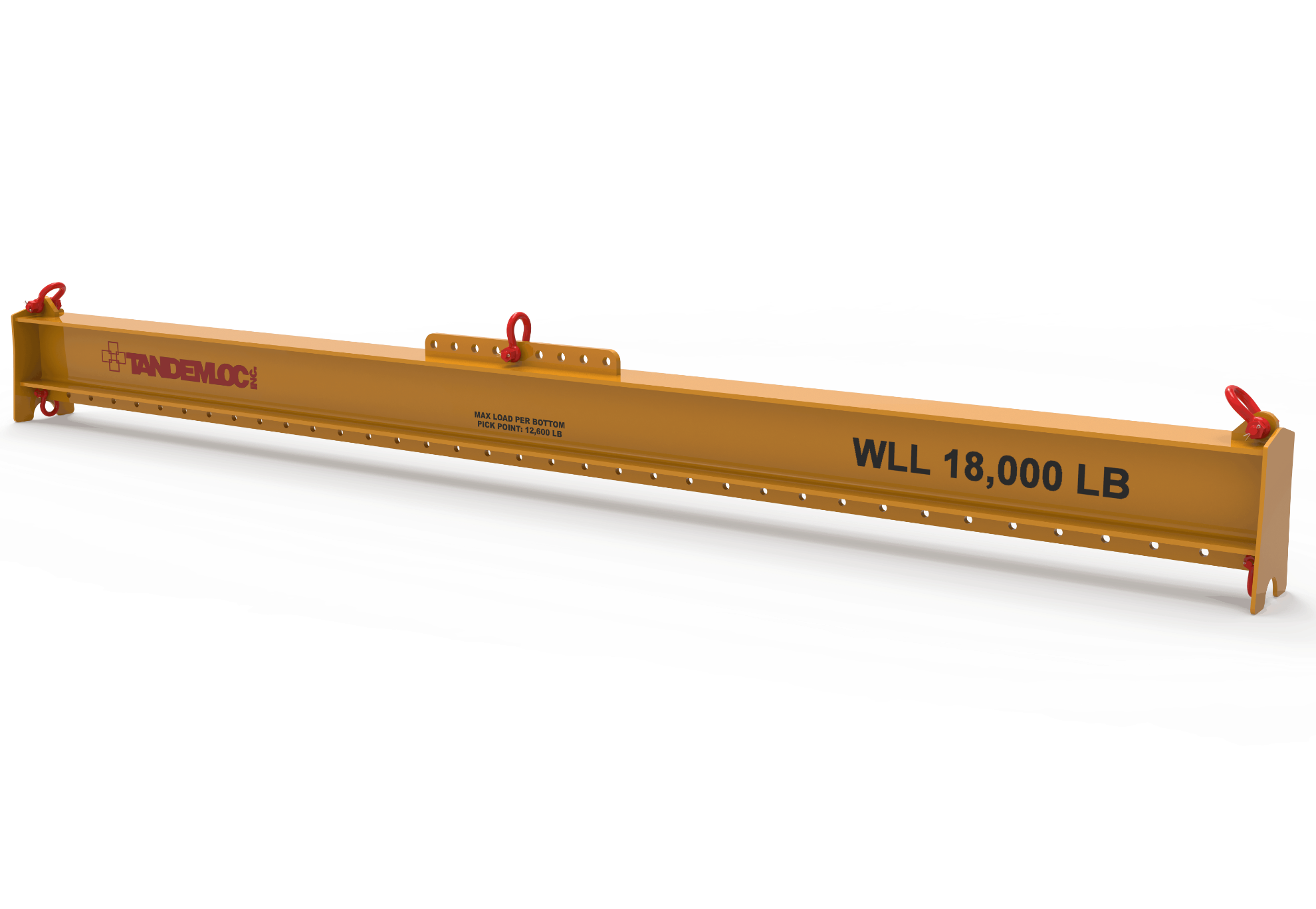

AL50H00-00A-PA Spreader/Lift Beam Combination 18,000 216 32 220.75 1377 Yes
$5,622.15
AL50J00-00A-PA Spreader/Lift Beam Combination 6,000 106 32 109.5 282 No --
AL50K00-00A-PA Spreader/Lift Beam Combination 4,000 180 32 182.38 408 No --
