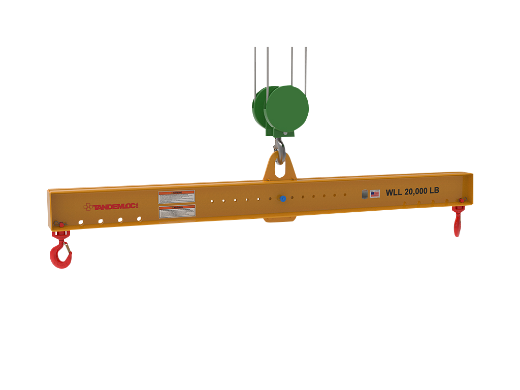

AD12000A-1PA Adjustable Lift Beam

Adjustable lift beam engineered for off-center load handling and heavy-duty industrial lifting applications.

$9,552.31

Proof Tested to 25,000 LB ASME B30.20 Compliant Made in USA

Quick Specs Overview

Download Sales Drawing

20,000 lbs

Working Load Limit (WLL)

12 ft

Overall Beam Span

Adjustable

Beam and cargo hook are movable.

ASME B30.20

Fully compliant design standards

Designed for Safe, Adjustable Load Handling

The AD12000A-1PA features a top adjustable lift eye that can be repositioned up to 2 feet on either side of the center. This design allows operators to quickly and safely balance uneven or off-center loads before lifting.

Engineered for heavy-duty industrial environments, this beam offers highly flexible lifting configurations. Whether you need standard center-point lifting or precise offset adjustments, this beam ensures stable handling.

Proof-Tested Reliability

Rigorously tested to 125% of the working load capacity to guarantee operational confidence and safety.

Industrial Durability

Completed with a sandblast, prime, and safety-yellow painted finish designed to withstand harsh industrial environments.

Custom Options

Lifter can be customized for your application, inquire for other load capacities or sizes.

Precision Adjustment

The eye is easily adjustable in 6-inch increments across the beam for precise center-of-gravity tuning.
