AE30000A-1PA

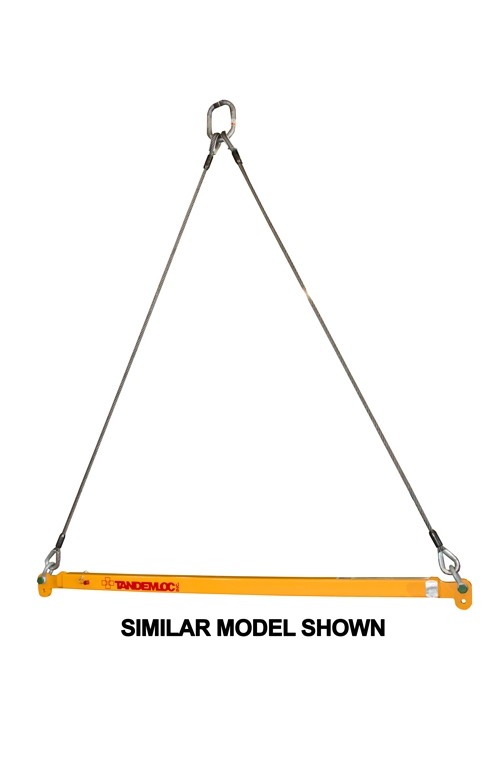

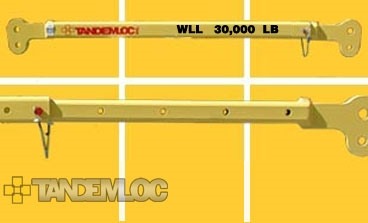

TELESCOPIC SPREADER

The telescoping bar offers a wide range of minimum and maximum lengths in convenient increments of only a few inches. We have a wide selection of telescopic spreaders, contact us if you do not see what you need.

We supply slings, too. Some designs show a sling as a separate item number and some incorporate a sling as part of the spreader and others don't offer a sling. Please check the drawings or just ask.

Spreader bar end design can be made with clevis ends to eliminate shackles. Also, the bars can be designed for low sling angles.

Everything is proof tested without extra charge.

  • PROOF TESTED to 200% (60,000 LB) and Certified
  • CALCULATED WEIGHTS: 420 LB.
    AE30001A-1PA Telescopic Spreader: 420 LB
    AE30002A-100 Top Lift Sling: 135 LB
    AE30003A-100 Nylon Lifting Strap: 22 LB Ea.
  • NOTE: 7.5 to 1 Buckling Factor Applies
  • FINISH: Sandblast, prime and paint safety yellow.
  • STANDARDS: Specification #EAD21000A applies. Meets ASME B30.20.
  • CUSTOM OPTIONS: Spreaders can be customized for your application, inquire for other load capacities or sizes.

$4,596.30

Download PDF
RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Type Telescopic
WLL 30,000 LBS
In Stock No
Top Rigging Included Yes
Min Extension 10 ft
Max Extension 16 ft
