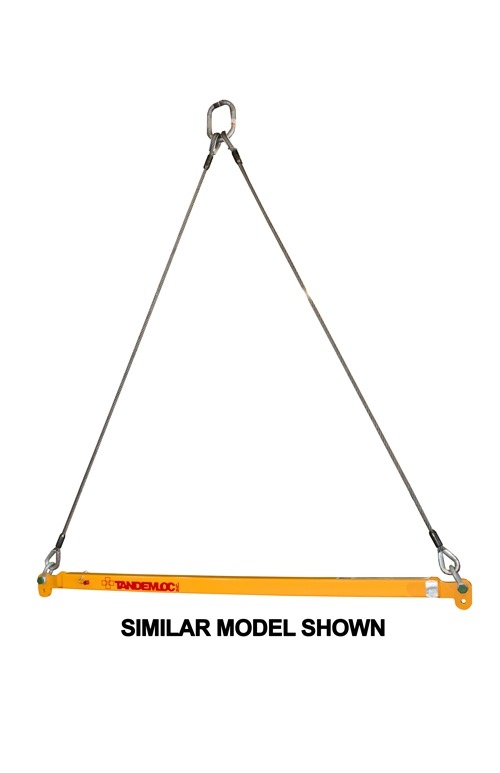

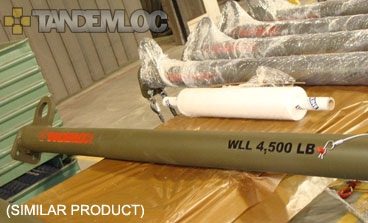

This sling assembly includes a telescopic spreader bar, wire rope pendants and hooks, all in conformance with Mil Std 209!
Other configurations can be designed for different working loads or lengths. Consult our sales department with your ideas and we will make them reality in short order!
- PROOF TEST SPREADER to 125% (5,625 LB) and certified Mark with WLL: 4,500 lb (Design Limit Load: 13,500 LB)
- PROOF TEST WIRE ROPE LEGS to 200% (6,000 LB) Mark with WLL: 3,000 lb each (Design Limit Load: 9,000 LB)
- CALCULATED WEIGHT: 145 LB. (Spreader), 38 LB. (Rigging)
- FINISH: Sandblast, prime and paint 33303 Desert Tan, (spreader).
- STANDARDS: Specification #EAD21000A applies. Meets ASME B30.20 and MIL STD 209. Marked Per ASME B30.20 with Data Plate and Vinyl Lettering.
- CUSTOM OPTIONS: Spreaders can be customized for your application, inquire for other load capacities or sizes.
Please inform your salesperson if your lifter is to be used in an underwater environment.
