AB23000A

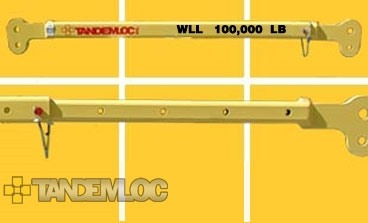

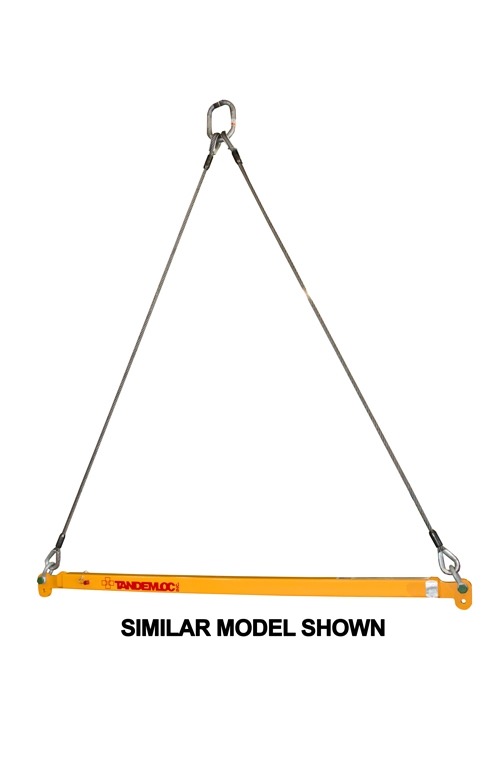

TELESCOPIC SPREADER WITH SLING

The telescoping bar offers a wide range of minimum and maximum lengths in convenient increments of only a few inches. We have a wide selection of telescopic spreaders, contact us if you do not see what you need.

Spreader bar end design can be made with clevis ends to eliminate shackles. Also, the bars can be designed for low sling angles.

Everything is proof tested without extra charge.

  • PROOF TESTED to 125% (125,000 LB) and Certified
  • CALCULATED WEIGHT: 1,050 LB; Sling: 535 LB.
  • BEAM: Sandblast, prime and paint safety yellow.
    SLING: Wire rope bright, fittings galvanized.
  • STANDARDS: Specification #EAD21000A applies.
  • Designed and Manufactured to meet or exceed ASME B30.20 and BTH-1, Design Category B, Service Class 0.
  • CUSTOM OPTIONS: Spreaders can be customized for your application, inquire for other load capacities or sizes.
Learn more about our paint process

Please Register For Price Quote

RFID

Enchance Operations Track and Authentice RFID
CLICK FOR MORE INFO

Already a member Login Here

Model Special Freight Type Weight (lbs.) WLL In Stock Top Rigging Included Min Extension Max Extension Price* Buy Online
AB23000A-0S-1PA Add $33.00 to shipping charge Spreader with Sling 1,585 100,000 LBS Yes Yes 14 ft 20 ft
$13,662.14
AB23000A-1PA Add $33.00 to shipping charge Spreader without Sling 2,175 100,000 LBS Yes No 14 ft 20 ft
$5,725.12
Type Telescopic With or Without Sling
WLL 100,000 LBS
In Stock Yes
Min Extension 14 ft
Max Extension 20 ft
