AT37 Double Fork-Double Hook Beam

AT37 Series Double Fork-Double Hook Forklift Beam

Significantly expand the capabilities of your forklift with this proof-tested AT37 Double-Fork Double-Hook Forklift Beam, equipped with two outboard hooks. This design provides an efficient solution for handling bundles or other non-palletized loads—applications where a standard forklift may not be ideal.

We offer several standard models, as shown below, and can rapidly engineer custom solutions for lengths up to 20 feet and capacities up to 40,000 lb., with typical lead times of 14 days or less.

Notes:

WLL: UP TO 40,000 LB.
PROOF TESTED: 125% OF THE WLL AND CERTIFIED
FINISH: SANDBLAST, PRIME AND PAINT SAFETY YELLOW
STANDARDS: SPECIFICATION #EAD21000A APPLIES
DESIGNED AND MANUFACTURED: TO MEET OR EXCEED ASME B30.20 AND BTH-1, DESIGN CATEGORY A, SERVICE CLASS 0
CUSTOM OPTIONS: Lifter can be customized for your application, inquire for other load capacities or sizes

Model	WLL	In Stock	Hook Spread ("A")	Fork Out -Out ("B")	Max Fork Height	Fork Width (Fork W)(in.)	Buy Online
AT37A02-030-PA Double Fork-Double Hook Forklift Beam	2,000	Yes	30	20	2.25"	2.25"-4.25"
AT37A10-048-PA Double Fork-Double Hook Forklift Beam	10,000	Yes	48	24	2.25"	3.00" - 6.25"
AT37A10-060-PA Double Fork-Double Hook Forklift Beam	10,000	No	60	24	2.25”	3.00" - 6.25"	Register For Quote
AT37A10-072-PA Double Fork-Double Hook Forklift Beam	10,000	Yes	72	30	2.25"	3.00" - 6.25"	Register For Quote
AT37A Custom Double Fork-Double Hook Forklift Beam	Up To 40,000	-	Up To 240	As Required	2.25"	As Required	Register For Quote

WLL Range	2000 lbs. to 40,000 lbs.

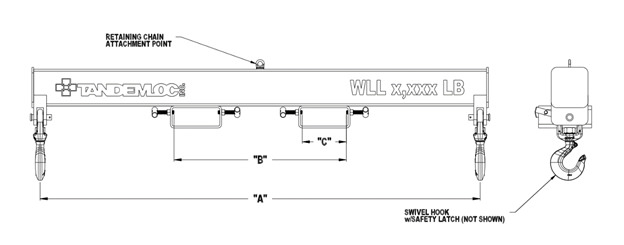

AT37 Drawing

Double-fork, double-hook forklift beams for balanced below-the-fork lifting. Designed to help handle bundled, unpalletized, and irregular loads with greater stability and control.

Secure double-fork attachment
Double-hook design for balanced lifting
WLL options from 2k to 10k lbs
Ideal for bundled & unpalletized loads
