TANDEMLOC - ISO Container Information

Freight Container Designation	Nominal Lengths
	M	Ft.
1AAA 1AA 1A 1AX	12(1)	40(1)
1BBB 1BB 1B 1BX	9	30
1CC 1C 1CX	6	20
1D 1DX	3	10
(1) In certain countries there are legal limitations to the overall length of vehicle and load.

External Dimensions, Ratings and Tolerances:
Freight Container Designation	Length, L				Width, W				Height, H				Rating, R (Gross Mass)
		Tol		Tol		Tol		Tol		Tol		Tol	KG	LB
	MM		FT / IN	IN	MM		FT	IN	MM		FT / IN	IN
1AAA	12192	0 -10	40	0 -3/8	2438	0 -5	8	0 -3/16	2896 2)	0 -5	9 6(2)	0 -3/16	30480 (2)	67200 (2)
1AA									2591 2)	0 -5	8 6(2)	0 -3/16
1A									2438	0 -5	8	0 -3/16
1AX									< 2438		<8
1BBB	9125	0 -10	29 11 1/4	0 -3/16	2438	0 -5	8	0 -3/16	2896 2)	0 -5	9 6(2)	0 -3/16	25400 (2)	56000 (2)
1BB									2591 2)	0 -5	8 6(2)	0 -3/16
1B									2438	0 -5	8	0 -3/16
1BX									< 2438		<8
1CC	6058	0 -6	19 10 1/2	0 -1/4	2438	0 -5	8	0 -3/16	2591 2)	0 -5	8 6(2)	0 -3/16	24000 (2)	52900 (2)
1C									2438	0 -5	8	0 -3/16
1CX									< 2438		<8
1D	2991	0 -5	9 9 3/4	0 -3/16	2438	0 -5	8	0 -3/16	< 2438	0 -5	8	0 -3/16	10160	22400
1DX									< 2438		<8
2. In certain countries there are legal limitations to the overall height of vehicle and load (for example for rail/road service).
• Ref ISO 668-1995 (E). • A reduced height is allowable for tank, open top, bulk, platform and platform based containers.

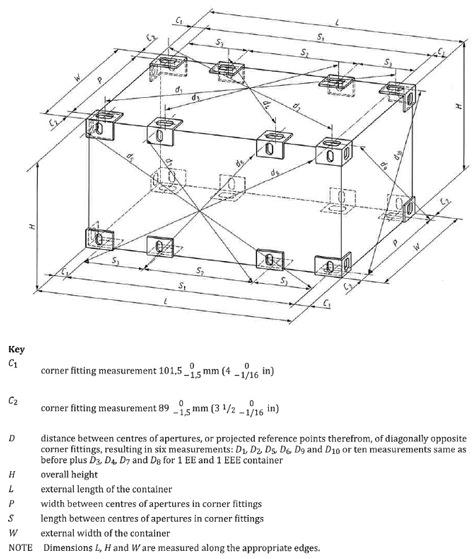

Corner Fitting Locations:

Link to Corner Fittings page and information...

Freight Container Designation	S (ref.)		P (ref.)		K1 Max.		K2 Max
Freight Container Designation	MM	FT / IN	MM	FT / IN	MM	IN	MM	IN
1AAA 1AA 1A 1AX	11985	39 3 7/8	2259	7 4 31/32	19	3/4	10	3/8
1BBB 1BB 1B 1BX	8918	29 3 1/8	2259	7 4 31/32	16	5/8	10	3/8
1CC 1C 1CX	5853	19 2 7/16	2259	7 4 31/32	13	1/2	10	3/8
1D 1DX	2787	9 1 23/32	2259	7 4 31/32	10	3/8	10	3/8
NOTE: Attention of manufacturers is drawn to the vital importance of accurately maintaining the reference dimensions of S and P. The tolerances to be applied to S and P are governed by the tolerances shown for the overall length and width in this International Standard and in ISO 1161.
1. K1 is the difference between D1and D2 or between D3 and D4; therefore K1=D1-D2 or K1=D3-D4. 2. K2 is the difference between D5 and D6; therefore K2=D5-D6.
• Ref: ISO 668-1995 (E) • Strengths of Corner Fittings to be such that they can pass the operating and test requirements specified in ISO 1496/1.

Container Handling and Securing Considerations (Ref ISO 3874-1997 (E)):

See information about Container Lifting -

•

For the purpose of container handling and securing, a “loaded container” is a container other than in the tare (empty) condition.

•

Unless otherwise confirmed, containers should be treated as loaded.

•

The term loaded means the maximum gross weight rating of the container.

•

Wind and other environmental conditions must be considered when handling or securing containers.

•

The cargo shall be distributed throughout the container to ensure that the centre of gravity is kept as central and as low as possible:

-	to avoid excessive tilting;
-	to avoid overstressing either the container or the handling equipment;
-	to avoid unacceptable vehicle axle loading;
-	to avoid lack of vehicle stability;
-	to avoid unacceptable load concentrations.

Eccentricity of the center of gravity for the loaded container varies with the distribution of load within the container; designers of containers and handling equipment should take this fact into account. As an example, when 60% of the load by mass is distributed in 50% of the container length measured from one end, the eccentricity corresponds to 5%.

•

Care shall be taken to ensure that the equipment used is suitable for the load and is safely attached to the container and that the container is free to be handled.

•

In the case of a single-point lift, special attention should be paid to the risk of the container tilting owing to eccentricity of the centre of gravity.

•

Care shall be taken when lifting a container whose centre of gravity is mobile or eccentric, e.g. a tank container, a bulk container, a container with a liquid bulk bag, a container with hanging cargo or a thermal container with a refrigerating unit (integral or clip-on).

•

Containers may be handled by methods other than those specified in the following section but only after careful evaluation of the equipment by means of which the container is to be handled and of the methods of operation envisaged, with respect to international container standards.

Summary of Allowable and Not Allowable Lifting Methods:

•

Lifting containers from the top corner fitting with forces applied other than vertically, is not allowed according to ISO 3874: 1997 (E) EXCEPT:

•

Empty containers (except empty platform based containers and platform based with ends, which shall not be lifted other than with forces applied vertically from the top corners).

•

When lifting empty containers, the sling angle should not be less than 60 degrees from the horizontal plane.

•

Ten foot containers using a sling angle of not less than 60 degrees to the horizontal plane.

•

Containers may be lifted from the side apertures of all four bottom corner fittings by means of a sling. The attachment fittings should not exert forces more than 1.5 inches away from the outer face of the Corner Fitting.

•

The minimum lifting angle for loaded containers lifted from the bottom corners is as follows:

Container Size Designation	Lifting Angle, a, min.
1AAA; 1AA; 1A; 1AX	30 Deg
1BBB; 1BB; 1B; 1BX	37 Deg
1CC; 1C; 1CX	45 Deg
1D; 1DX	60 Deg
