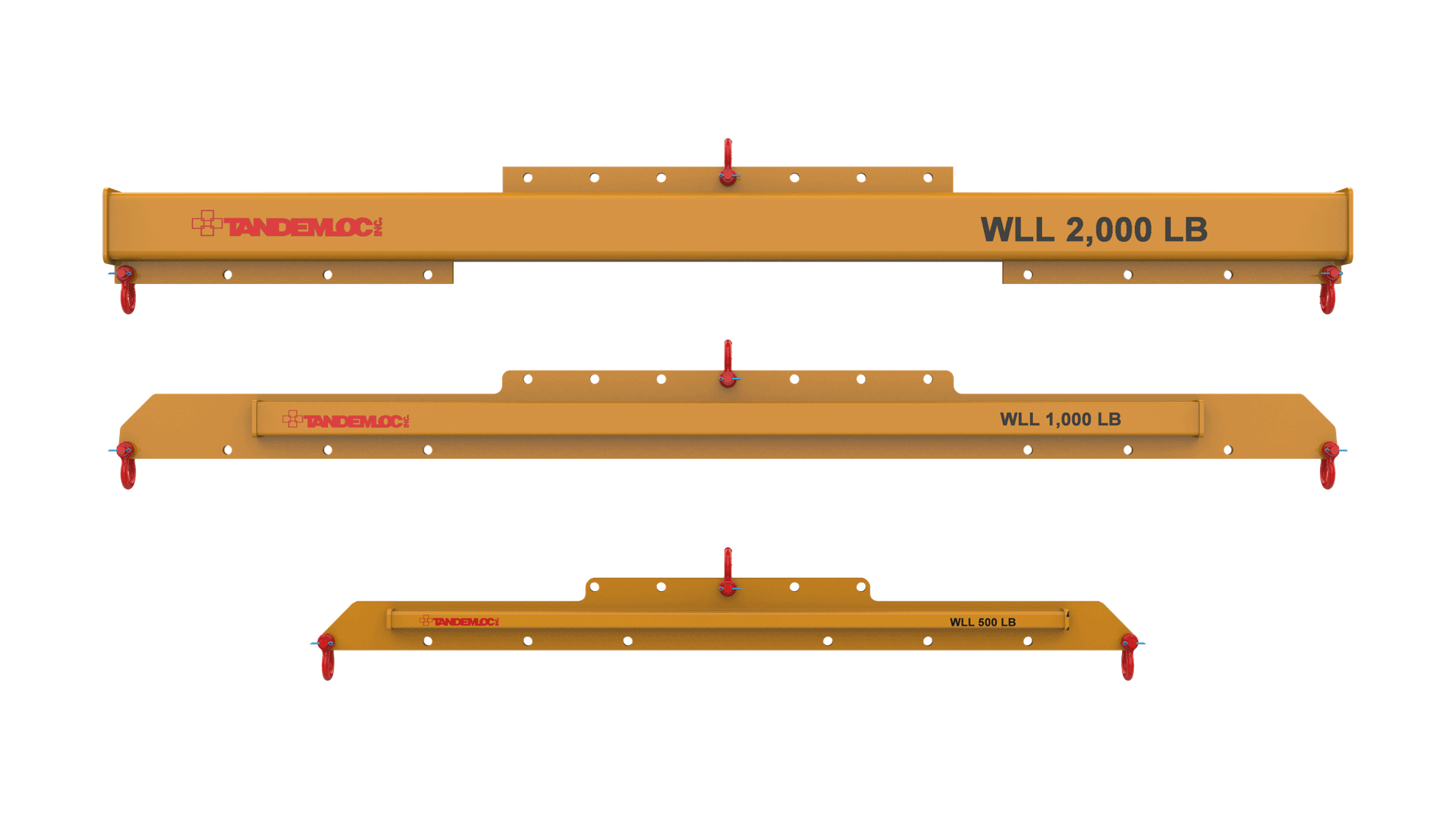

AU08A Series Combo Lift Beams


Light Weight Combination Lift Beams

Incredible light weight vs lifting capacity, our AU08A series combination lift beams are the perfect solution for those who require a strong lifter without the heavy weight. The top pad eye of these beams allows for various locations to be utilized, offset CG situations, and even additional top rigging should the user prefer. The bottom pad eyes provide a variety of rigging locations. Each beam is supplied with a single top shackle (BTAS) and two bottom shackles (BTAS). True to the Tandemloc brand, each combination lift beam is designed and manufactured to current ASME B30.20 and BTH-1 standards and proof tested to 125% of the Working Load Limit (WLL). For specific information on available and/or custom sizes, please refer to the chart below or contact our Sales Department at 800-258-7324.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Learn more about our paint process
Model WLL Max Spread Min. Spread Top Lift Point Range In Stock Price* Buy Online
AU08A005-048-PA Combination Lift Beam
500 lbs 48 inches 12 inches 16 inches Yes
$781.49
AU08A010-048-PA Combination Lift Beam
1000 lbs 48 inches 12 inches 16 inches Yes
$789.31
AU08A010-072-PA Combination Lift Beam
1000 lbs 72 inches 36 inches 24 inches No
$891.10
AU08A010-096-PA Combination Lift Beam
1000 lbs 96 inches 48 inches 32 inches Yes
$1,016.38
AU08A010-120-PA Combination Lift Beam
1000 lbs 120 inches 60 inches 40 inches Yes
$1,550.42
AU08A02-048-PA Combination Lift Beam
2000 lbs 48 inches 12 inches 16 inches Yes
$859.79
AU08A02-072-PA Combination Lift Beam
2000 lbs 72 inches 36 inches 24 inches Yes
$922.43
AU08A02-096-PA Combination Lift Beam
2000 lbs 96 inches 48 inches 32 inches Yes
$1,550.42
AU08A02-120-PA Combination Lift Beam
2000 lbs 120 inches 60 inches 40 inches Yes
$1,721.12
